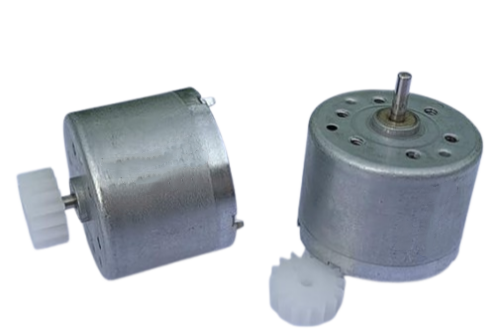

3V 6V 12V Brushed DC Electric Motor 6000Rpm 320 Motor Long Shaft For Micro Pump Motor
3V 6V 12V Brushed DC Electric Motor 6000Rpm 320 Motor Long Shaft For Micro Pump Motor
3V 6V 12V Brushed DC Electric Motor 6000Rpm 320 Motor Long Shaft For Micro Pump Motor
3V 6V 12V Brushed DC Electric Motor 6000Rpm 320 Motor Long Shaft For Micro Pump Motor
3V 6V 12V Brushed DC Electric Motor 6000Rpm 320 Motor Long Shaft For Micro Pump Motor
3V 6V 12V Brushed DC Electric Motor 6000Rpm 320 Motor Long Shaft For Micro Pump Motor
Specifications
Brand Name :
Lihua Motor/ HCS Motors
Model Number :
RF-320
Certification :
ISO9001/Reach/RoHs/SGS/CE
Place of Origin :
Dongguan,China
MOQ :
3000pcs
Payment Terms :
T/T
Supply Ability :
12000pcs/Day
Delivery Time :
30-45Days
Packaging Details :
Foam Inner /Carbon Outer
Motor Type :
RF-320CH-13340
Shaft Diameter :
2mm
Motor Body Size :
24.4mm*18mm
Rated Voltage :
6V
Shaft Type :
Round/D Shaft/Knurling/Screw thread
Operating Temperature :
-20°C To 80°C
Noise Level :
＜55dB
No-load Speed :
3000RPM/6000RPM/10000RPM/Or As You Request
Applications :
VCD Engine part,Electric valve, hand charger and mini aerosol dispenser devices
Weight :
25g
Name :
Brushed DC Electric Motor
Description
3V 6V 12V 6000Rpm Electric Motor 320 Motor Long Shaft Small Motor For Micro Pump Motor

6V RF-320CH-13340 mini motor can be used as a variety of small electrical appliances, vibrators, scientific research experiments, car modelling aeromodelling small production, extremely versatile and flexible use.The motor has a compact structure, large power, high speed, and very stable performance.Can be between 1.5v-24v normal operation.

    • Rated Voltage:6V /12V /24V
    • Direction Of Rotation:CW/CCW
    • Speed:6000rpm or custom
    • Motor diameter: 24.4mm Max
    • Motor Height:18mm
    • Output shaft diameter: 1.5mm / 2.0mm
    • Motor Step Height:1.4mm
    • Motor Step Diameter:6.4mm
    • Output power:0.05w-3.5w
    • Brush Type: Metal brushes

Customization Service:Voltage, speed,torque and current can be custom.



RF-320 Small DC Motor Datasheet

The following specifications can be changed as customers' requirement.
Model Voltage No Load RATED LOAD Stall
Operating range Rated Speed Current Speed Current Torque Output Torque Current
VDC RPM A RPM A g.cm W g.cm A
RF-320CH-12400 1.0-5.0 3 2700 0.019 2160 0.075 3.20 0.072 15 0.22
RF-320CH-12400 4.9 - 9.0 6 14000 0.28 11910 1.6 45.5 5.56 305 9.1
RF-320CH-14310 4.5 - 12.0 9 11300 0.14 9540 0.76 41.3 4.04 265 4.1

All technical paramter can be customized as your need.

Note:1mNm= 1mN.m = 10.2gcm

3V 6V 12V Brushed DC Electric Motor 6000Rpm 320 Motor Long Shaft For Micro Pump Motor

Custom 3V 6V 12V 24V rF-320 motor Solutions
3V 6V 12V Brushed DC Electric Motor 6000Rpm 320 Motor Long Shaft For Micro Pump Motor 3V 6V 12V Brushed DC Electric Motor 6000Rpm 320 Motor Long Shaft For Micro Pump Motor 3V 6V 12V Brushed DC Electric Motor 6000Rpm 320 Motor Long Shaft For Micro Pump Motor

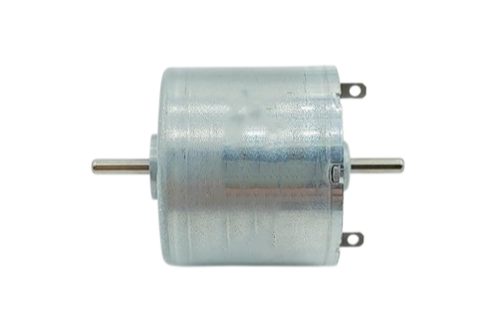

1.Dual Shaft Micro RF-320-14310 Motor
This dual-shaft micro RF-320-14310 motor supports multiple voltages of 3.7V, 5V, 6V, and 7.4V, with a high speed of up to 17000 RPM and a compact size of only 24mm. It is suitable for applications requiring high speed and small size. The dual-shaft design facilitates connection to various transmission devices, making it widely used in model making, precision instruments, and small automation equipment, providing efficient and stable power output.

2.RF-320 Model Motor for Solar Toys and Hand Generators
This RF-320 motor is specifically designed for solar toys and hand-crank generators, featuring low-voltage startup and high efficiency. Its compact structure and reliable performance make it an ideal choice for DIY enthusiasts and educational experiments. It helps users understand the basics of energy conversion and mechanical transmission while inspiring creativity.

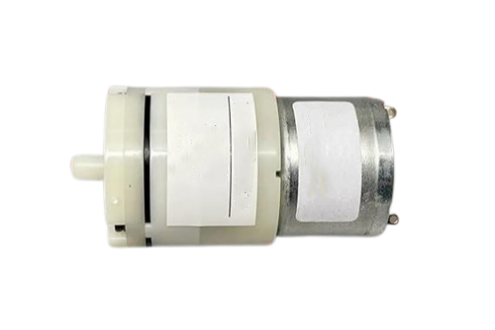

3.RF-320 Motor with Pump for Aerosol Dispenser
This RF-320 motor is designed for aerosol dispensers and is used in conjunction with pump mechanisms to provide stable power output, ensuring precise spraying of liquids or gases. Its high efficiency and durability make it a core component of aerosol products such as cosmetics, cleaners, and medical sprays, meeting the needs of both industrial production and daily use.
