32mm 1100Rpm Brushed DC Electric Motor 3V For Automatic Watch Shaking
32mm 1100Rpm Brushed DC Electric Motor 3V For Automatic Watch Shaking
32mm 1100Rpm Brushed DC Electric Motor 3V For Automatic Watch Shaking
32mm 1100Rpm Brushed DC Electric Motor 3V For Automatic Watch Shaking
32mm 1100Rpm Brushed DC Electric Motor 3V For Automatic Watch Shaking
32mm 1100Rpm Brushed DC Electric Motor 3V For Automatic Watch Shaking
Specifications
Brand Name :
Lihua Motor/ HCS Motors
Model Number :
RK-500TB-10660
Certification :
ISO9001/CE/RoHs/Reach/IATF16949
Place of Origin :
Dongguan,Chia
Place Of Origin :
China
MOQ :
3000PCS
Price :
Negotiation
Payment Terms :
L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability :
15000PCS/Day
Delivery Time :
35-45Days
Packaging Details :
Carton
Name :
Brushed DC Electric Motor
Motor Type :
RF-500TB-10660
Direction :
Clockwise/counter-clockwise rotation (CW&CCW)
Working Range :
3V
Shell Stator Size :
Φ32* L 19.5 mm(Φ 1.26 inch * 0.77 inch)
Out Shaft Diameter :
Φ2.0mm(0.079 inch)
Shaft Length :
Free customization
No-load Speed :
1100Rpm
Motor Applications :
Application: Smart trash Can / Waste bin / Stirring cup / Household appliance / Portable Electric Sprayer / phlegm suction machine
Description

RF-500TB-10660 DC3V 1100Rpm 32mm DC Brushed Motor For Automatic Watch Shaking

Technical Specifications

Motor Type:RF-500TB-10660

Voltage:1V-5V DC

Rated Volt:3V

Speed: 1100±110 RPM

Diameter: 32mm

Stall Torque:13.0 g-cm (min.)

Shaft Diameter: 10.5±0.3mm

Shaft Length:9mm (customizable)

Current (No Load): ≤15mA

Torque: 40mN·mNoise Level <45dB: Ideal for household and office environments.

Wide Temperature Range: Operates efficiently in -20°C to 70°C environments.

Extended Lifespan: Engineered for 5,000+ hours of continuous operation.

Weight: 40

RF-500TB DC Brushed Motor Paramter Reference

Model

Voltage

No Load

At Maximum Efficiency

Stall

V

Current

Speed

Current

Speed

Torque

Output

Current

Torque

A

RPM

A

RPM

g·cm

W

A

g·cm

RF-500TB-19250

3

0.031

3100

0.17

2617

12.55

0.34

0.92

80.52

RF-500TB-18280

6

0.033

5640

0.22

4917

14.75

0.74

1.49

115.06

RF-500TB-19220Y

2.7

0.036

3011

0.18

2513

11.73

0.3

0.91

70.85

RF-500TB-20215

3

0.04

3550

0.2

2965

12.46

0.38

1.01

75.61

Customized product parameter are available upon your request

Note:1mNm= 1Ncm = 10.2gcm

RF-500TB-10660 DC3V 1100Rpm 32mm DC Brushed Motor Dimension

32mm 1100Rpm Brushed DC Electric Motor 3V For Automatic Watch Shaking

Notes:
1.Motor Body Length:17.5mm
2.Motor Output Shaft Length:L±0.5mm
3.Motor Output Shaft Diameter:2mm
4.Motor Diameter:32mm
5.Fixed Aperture:M2.5*0.45mm
6.Step Height: about 1.9mm
7.Step diameter: about 6.2mm
8.Distance between two fixed aperture:22±0.1mm

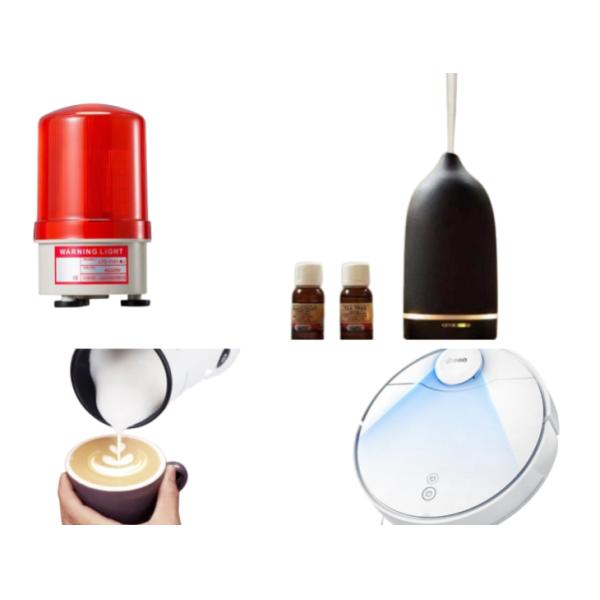

RF-500TB Motor – Versatile Applications in Modern Devices

The RF-500TB motor is a compact and high-performance motor designed for a wide range of applications. Below are examples of its use in aroma diffusers, robot vacuum cleaners, warning lights, and milk frothers:

RF-500TB Motor Applications in Common Devices

Product

Application Scenario

Function

Typical Motor Parameters

Additional Notes

Aroma Diffuser

Drives fan or ultrasonic atomizer

Helps disperse fragrance mist evenly

Rated Voltage: 3V–6V

Speed: 3000–7000 RPM

Low noise operation, suitable for quiet environments; stable airflow output.

Robot Vacuum Cleaner

① Drives side brush ② Main brush roller ③ Vacuum fan

Provides power for sweeping, brushing, and suction

High-speed version: ~8000–10000 RPM; Can be used with gear reduction system

RF-500TB often used for side brush or fan impeller; for main brush, often paired with gearbox.

Warning Light (Rotating Beacon)

Drives the rotating dome or platform

Creates rotating flashing light effect

3V–12V, Moderate speed (~3000–5000 RPM), continuous duty motor

Low noise, continuous running capability; torque sufficient to rotate light assembly.

Milk Frother

Spins the frothing whisk or stirrer head

Creates rich milk foam

High-speed version: 7000–12000 RPM (with light torque)

RF-500 series commonly used in handheld or small frothers; good balance between speed and size.
