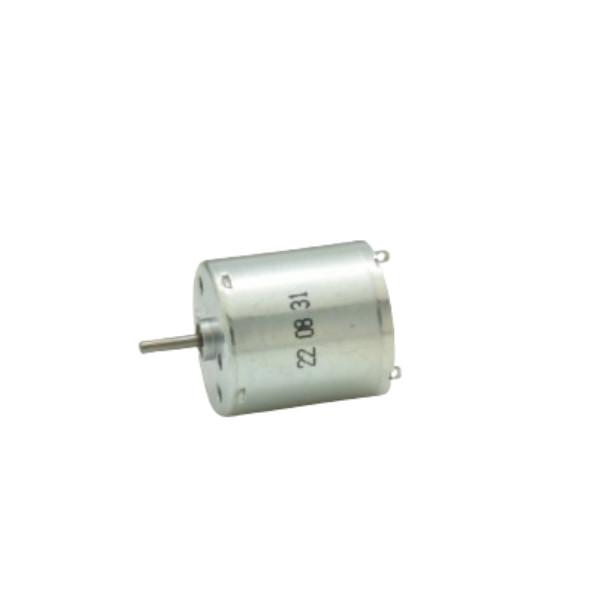

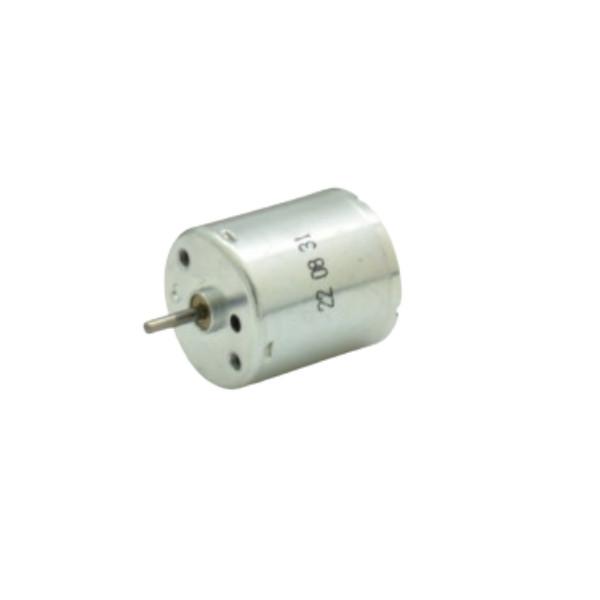

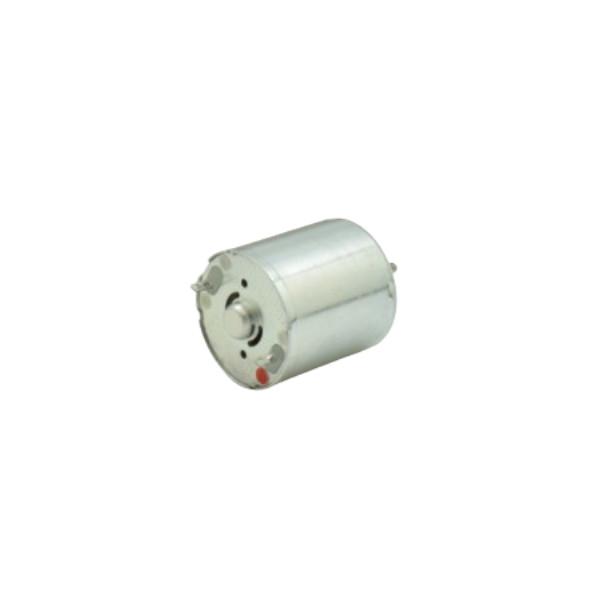

24.4mm*26mm 6V DC Motor High Torque 7000rpm For Punch Machine CD Player
24.4mm*26mm 6V DC Motor High Torque 7000rpm For Punch Machine CD Player
24.4mm*26mm 6V DC Motor High Torque 7000rpm For Punch Machine CD Player
24.4mm*26mm 6V DC Motor High Torque 7000rpm For Punch Machine CD Player
24.4mm*26mm 6V DC Motor High Torque 7000rpm For Punch Machine CD Player
24.4mm*26mm 6V DC Motor High Torque 7000rpm For Punch Machine CD Player
Specifications
Place Of Origin :
China
MOQ :
3000PCS
Payment Terms :
L/C,T/T
Supply Ability :
15000PCS/Day
Delivery Time :
35-45Days
Packaging Details :
Carton
Brand Name :
Lihua Motor/ HCS Motors
Model Number :
RF-350
Certification :
ISO9001/CE/RoHs/Reach
Place of Origin :
Dongguan,Chia
Diameter :
24mm*26mm
Material :
Metal
Type :
DC Motor Brushed
Motor Type :
RF-350CH/RK-350SH
Motor Volt :
1.5V-24V
Motor Speed :
5600RPM/6900RPM/12000RPM Or as you need
Motor Shaft Diameter :
2mm
Motor Applications :
Punch machine/Printer Copier/ CD player/ Blood Pressure Device
Name :
Brushed DC Electric Motor
Description

24.4mm*26mm 6 Volt DC Motor High Torque 7000rpm For Punch Machine CD Player CE

RF/RK-350CH/SH Features:

  • Product Name: RF/RK-350CH/SH Brushed DC Electric Motor
  • Power Source: Electric
  • Nominal Volt:6.0V
  • No-load Speed: 5400 RPM/7300RPM or custom as you need
  • Motor Diameter: 24.4mm Max
  • Motor Body Length:26mm
  • Motor Shaft Diameter:2mm
  • Out Shaft Length:15mm or Custom as your need
  • Stall Torque:117g.cm/141g.cm
  • Weight: 48g
  • Features:
    • Brushed DC Motor
    • Carbon Brushed DC Motor
    • Brushed Magnet Motor

24.4mm*26mm 6 Volt DC Motor High Torque Technical Parameters:

Model Voltage(V) No Load Rated Load Stall
Range Rated Speed Current Torque Speed Current Output Torque Current
R/min A m.Nm R/min A W g.cm A
RK-350CA-18250 3-6V 6.0V 5486 0.053 2.01 4529 0.251 0.57 117 1.20
RF-350CA-20190 3-6V 6.0V 7332 0.052 2.01 6264 0.305 1.26 141 1.79

Customized product parameter are available upon your request

Note:1mNm= 1Ncm = 10.2gcm

24.4mm*26mm 6V DC Motor High Torque 7000rpm For Punch Machine CD Player
Notes:
1.Motor Body Length:26mm
2.Motor Output Shaft Length:L±0.5mm
3.Motor Output Shaft Diameter:2mm
4.Motor Diameter:24.4mm Max
5.Fixed Aperture:3mm
6.Step Height: about 1.5mm

7.Step diameter: about 6.4mm
8.Distance between two fixed aperture:17mm

Applications:

24.4mm*26mm 6 Volt DC Motor High Torque 7000rpm is commonly used in various applications. It is used in printer, where it is used to power the printing mechanism. In addition, the RF-350 Brushed DC Electric Motor is used in small-scale automated systems such as CD player, where it is used to power the movement of items.

The Brushed DC Electric Motor is also used in the Medical Industry. It is used in blood pressure Devices, where it is used to power the movement of small-scale components.

In conclusion, the Brushed DC Electric Motor is a reliable and versatile motor that is used across various industries. It is manufactured in China and offers a Voltage Range of 6.0V or customized as per the user's requirements. It has a Stall Current of 240mA and weighs only 48g. The Diameter of the motor is 24mm, making it suitable for small-scale applications.


24.4mm*26mm 6V DC Motor High Torque 7000rpm For Punch Machine CD Player
