Specifications
Brand Name :
CSJY
Model Number :
MBC2406
Certification :
CE
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000pcs/month
Delivery Time :
7 working days
Packaging Details :
cartons
Input power supply :
DC24V
Adaptor motor :
DC brushless motor below 60W with 2400-line position feedback
DC brushless motor below 60W with 2400-line position feedback :
RS232 serial communication, supporting Modbus protocol
Infrared sensor :
6 independent interfaces, PNP, NPN normally open, open collector type
Voice output :
external 8W 4Ω speaker
Power-off :
DC12V battery, or optional super capacitor module
Anti-pinch protection :
Current+position double detection, adjustable sensitivity
Application :
swing gate, speed gate, tripod turnstile gate, flap gate
Features :
long life, MCBF more than 6 million times
Working environment :
-20℃ ~ 55℃, humidity below 90% (no condensation)
Description

Tripod Turnstile Gate Controller Support 6 Pairs Sensor Interface Input Independently


Product Description

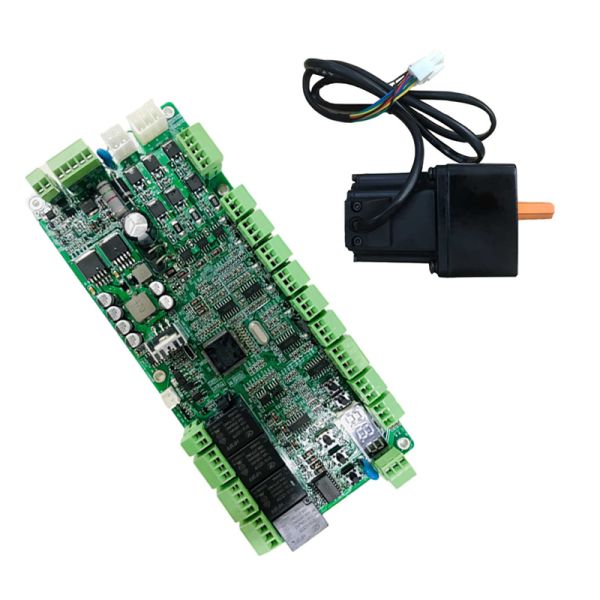

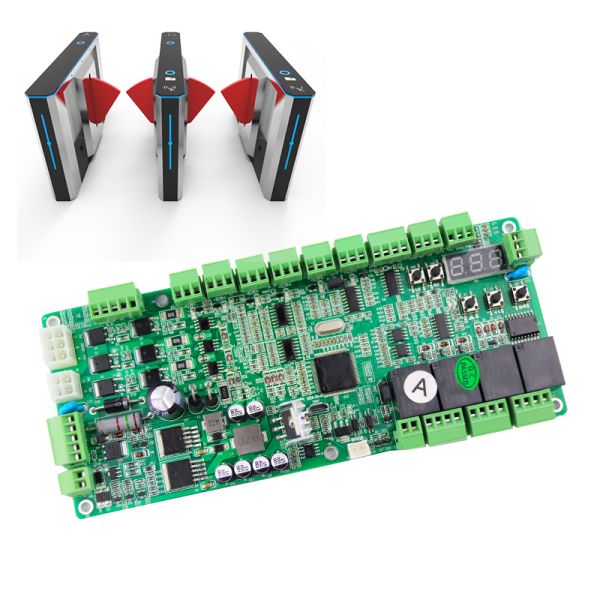

The Tripod Turnstile Gate Controller is a compact and intelligent control board specifically designed for tripod turnstile gates. It supports 6 pairs of sensor interface inputs independently, enabling precise detection and smooth bi-directional access control. Built for high-traffic environments, this controller integrates seamlessly with various access systems such as RFID readers, fingerprint scanners, and QR code terminals. Its modular design and stable performance make it ideal for modern pedestrian entrance management.


Specification

Input power supply

DC24V, dual power connection, 150W/6.5A on one side is recommended; Single power connection, 300W recommended

Adaptor motor

DC brushless motor below 60W with 2400-line position feedback

Communication mode

RS232 serial communication, supporting Modbus protocol

Infrared sensor

6 independent interfaces, PNP, NPN normally open, open collector type

Voice output

external 8W 4Ω speaker

Working environment

-20℃ ~ 55℃, humidity below 90% (no condensation)

Power-off

DC12V battery, or optional super capacitor module


Key Features:

  • 6 Pairs of Independent Sensor Inputs: Ensures accurate passage detection, anti-tailgating, and timely response.

  • Bi-Directional Passage Control: Manages entry and exit directions separately with reliable logic control.

  • Wide Access System Compatibility: Supports integration with card readers, biometric devices, face recognition systems, and more.

  • Smooth and Safe Operation: Supports anti-pinch, auto-reset, and alarm triggering for unauthorized access.

  • LED Indicator & Sound Prompt Support: Easily guides users and alerts on abnormal usage or failures.

  • DC 12V/24V Power Supply Compatibility: Flexible voltage options for different installation environments.

  • ODM Customization Available: Firmware and hardware can be adapted to specific project needs.

Tripod Turnstile Gate Controller Support 6 Pairs Sensor Interface Input Independently


Applications:

  • swing gate

  • tripod turnstile

  • flap gate

  • sliding gate

  • speed gate
