DC 24 / 48V 5A / 15A Swing Barrier Gate Incremental Encoder Control Board for Swing Barrier Gate
DC 24 / 48V 5A / 15A Swing Barrier Gate Incremental Encoder Control Board for Swing Barrier Gate
DC 24 / 48V 5A / 15A Swing Barrier Gate Incremental Encoder Control Board for Swing Barrier Gate
DC 24 / 48V 5A / 15A Swing Barrier Gate Incremental Encoder Control Board for Swing Barrier Gate
DC 24 / 48V 5A / 15A Swing Barrier Gate Incremental Encoder Control Board for Swing Barrier Gate
DC 24 / 48V 5A / 15A Swing Barrier Gate Incremental Encoder Control Board for Swing Barrier Gate
Specifications
Brand Name :
CSJY
Model Number :
JMC4805
Certification :
CE
Place of Origin :
China
MOQ :
2
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000pcs/month
Delivery Time :
7 working days
Packaging Details :
cartons
Input Voltage :
DC 24 / 48V
Rated/peak current :
5A / 15A
Adapted motor :
Low-voltage servo motors
Encoder Feedback :
Incremental (pulse type)
communication interface :
RS232 / RS485 / CAN
hardware protection :
 Over-current protection Short-circuit protection Reverse connection protection

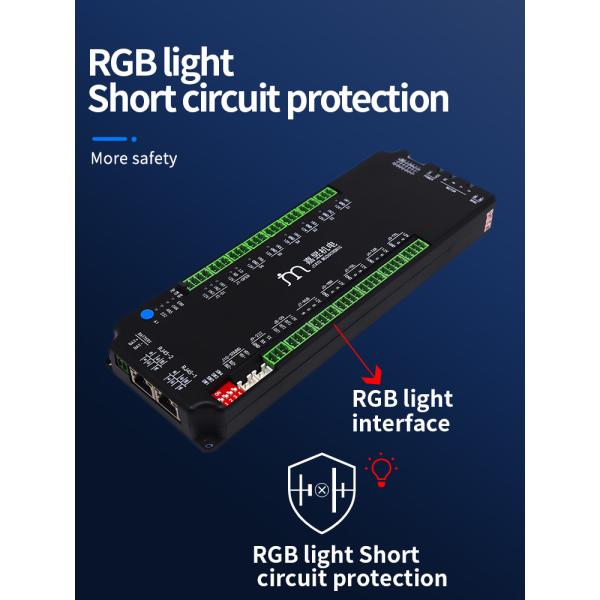

Light Output :
Welcome Lights | Passage Lights | RGB Lights
sound output :
Buzzer, voice each 1 channel
infrared input :
6 independent interfaces, PNP, NPN compatible
Input and output signals :
2 door openers + 3 expansion inputs/outputs
Power down and open the gate :
External 12V 1.3AH battery
Multi-function keys :
Opening doors, setting zero, restoring defaults, etc.
Operating Temperature :
-20°C ~ 55°C
Description

DC 24 / 48V 5A / 15A Swing Barrier Gate Incremental Encoder Control Board for Swing Barrier Gate


Product description

JMC4805 gate controller is a motor-driven + pass logic servo electric control product launched by Jiayu
Mechatronic for pedestrian access gate equipment, supporting the speed pass gate, swing gate, wing gate,
translating gate and other types of equipment to meet the needs of the bus station, commercial buildings,
hospitals, schools and other access control application scenarios.

Technical parameter
Input Voltage
DC 24 / 48V
Rated/peak current
5A / 15A
Adapted motor
Low-voltage servo motors
Encoder Feedback
Incremental (pulse type)
communication
interface
RS232 / RS485 / CAN
hardware protection
Over-current protection Short-circuit
protection Reverse connection protection
Working environment
-20℃ ~ 55℃, humidity below 90% (no condensation)
Light Output
Welcome Lights | Passage Lights | RGB Lights
sound output
Buzzer, voice each 1 channel
infrared input
6 independent interfaces, PNP, NPN compatible

DC 24 / 48V 5A / 15A Swing Barrier Gate Incremental Encoder Control Board for Swing Barrier Gate

DC 24 / 48V 5A / 15A Swing Barrier Gate Incremental Encoder Control Board for Swing Barrier Gate



Application

This control board suitable for swing gate, speed gate, sliding gate hign-end turnstile gate's application.

DC 24 / 48V 5A / 15A Swing Barrier Gate Incremental Encoder Control Board for Swing Barrier Gate

DC 24 / 48V 5A / 15A Swing Barrier Gate Incremental Encoder Control Board for Swing Barrier Gate

RFQ

1. How about your company's actual strength?
We have more than 100 employees, a R&D group with 50 people,1 office and 1 factories. Factories and office buildings are larger than 1500 square meters.

2. How about the payment method?

Standard products: 30% deposit, 70% balance payment before shipment.

3. How long is your warranty period?

One-year guarantee & Life-time technology support.

4. How do you do after-sale service?
We provide life-time technology support online, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

5. How long is your warranty period?
One-year guarantee & Life-time technology support
