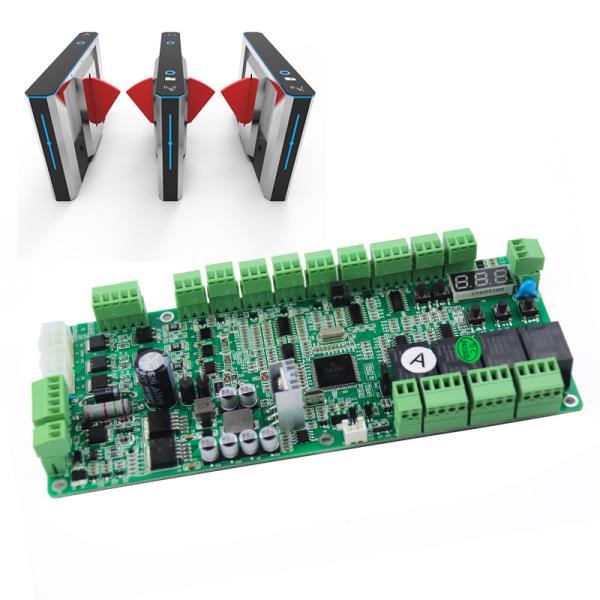

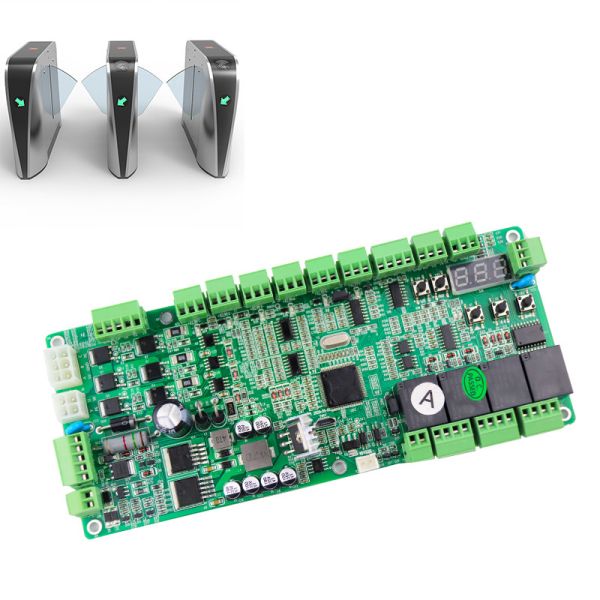

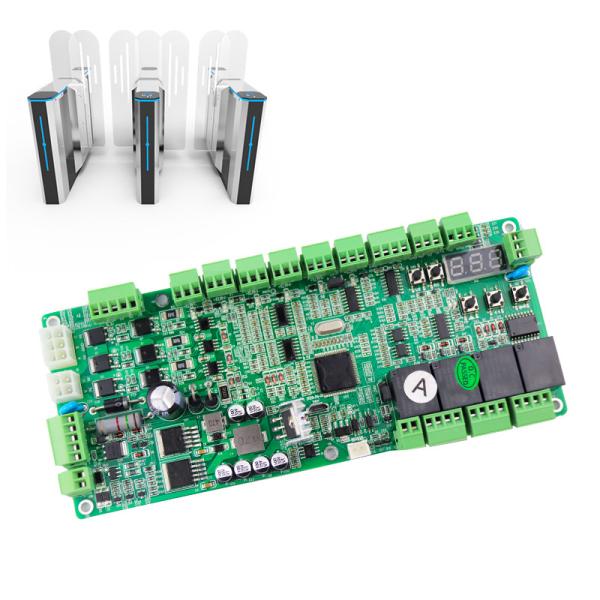

GMBC2406 Turnstile Gate Control Board for Flap Gates
GMBC2406 Turnstile Gate Control Board for Flap Gates
GMBC2406 Turnstile Gate Control Board for Flap Gates
GMBC2406 Turnstile Gate Control Board for Flap Gates
GMBC2406 Turnstile Gate Control Board for Flap Gates
GMBC2406 Turnstile Gate Control Board for Flap Gates
Specifications
Adaptor motor :
DC brushless motor below 60W with 2400-line position feedback
Input power supply :
DC24V, dual power connection, 150W/6.5A on one side is recommended; Single power connection, 300W recommended
Infrared sensor :
6 independent interfaces, PNP, NPN normally open, open collector type
Working environment :
-20℃ ~ 55℃
Anti-pinch protection :
Current+position double detection, adjustable sensitivity
Control effect :
The open speed is fast, and it is stable and does not shake
Brand Name :
CSJY
Model Number :
GMBC2406
Certification :
CE
Place of Origin :
China
MOQ :
2
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000pcs/month
Delivery Time :
7 working days
Packaging Details :
cartons
Voice output :
external 8W 4Ω speaker
Communication mode :
RS232 serial communication, supporting Modbus protocol
Power-off :
DC12V battery, or optional super capacitor module
Application :
swing gate, speed gate, tripod turnstile, sliding gate
Description

MBC2406 Turnstile Gate Control Board for Flap Gates


Product description

This system consists of access gate control board, brushless servo motor, servo control technology, real-time
detection of motor position, self-learning load curve without external encoder, physical anti-pinch protection and
adjustable sensitivity. Support access mode settings such as card swiping, freedom and prohibition at the entrance and exit;It has the logic detection of illegal intrusion, trailing traffic, detention, reverse traffic, infrared anti-pinch, etc., and is suitable for access gate equipment such as speed gate/swing gate, flap gate/sliding gate, etc.

Technical parameter
Input power supply
DC24V, dual power connection, 150W/6.5A on one side is recommended; Single power
connection, 300W recommended;
Adaptor motor
DC brushless motor below 60W with 2400-line position feedback
Communication mode
RS232 serial communication, supporting Modbus protocol
Power-off
DC12V battery, or optional super capacitor module
Infrared sensor
6 independent interfaces, PNP, NPN normally open, open collector type
Voice output
external 8W 4Ω speaker
Working environment
-20℃ ~ 55℃, humidity below 90% (no condensation)

GMBC2406 Turnstile Gate Control Board for Flap Gates


GMBC2406 Turnstile Gate Control Board for Flap Gates

Application

This control board suitable for swing gate, speed gate, sliding gate, tripod turnstile, etc

GMBC2406 Turnstile Gate Control Board for Flap Gates

GMBC2406 Turnstile Gate Control Board for Flap Gates

RFQ

1: Are you trading company or manufacturer ?

We are a professional barrier gate manufacturer, our experience more than 10 years.

2. Do you provide OEM service?

Yes, we can offer OEM services as follows: 1) We can print your logo on barrier gate. 2) We can customize barrier arm size to your needs.

3. Lead time for standard item?

1-50 sets: 3-5 working days; 50-100 sets: 6-10 working days; 100-500sets: 11-20 working days. For custom-made logo, 3-10 working days longer.

4. Do you provide quality guarantee/warranty and after sale service?

We have a one-year standard warranty, excellent after-sales service.

5. Do you provide samples ?

No,we don't provide free samples. The MOQ of our products is 1pc.

6. How about the payment method?

T/T.

7. What kind of technical support you would provide?

We have professional R&D and technical team,you have any technical problem of product.

8. How to ship?

By air or by sea, quantity over 10 sets better to choose by sea to reduce cost.
