Integrated Driver and Controller Function Control Board for Swing Gate Turnstile
Integrated Driver and Controller Function Control Board for Swing Gate Turnstile
Integrated Driver and Controller Function Control Board for Swing Gate Turnstile
Integrated Driver and Controller Function Control Board for Swing Gate Turnstile
Integrated Driver and Controller Function Control Board for Swing Gate Turnstile
Integrated Driver and Controller Function Control Board for Swing Gate Turnstile
Specifications
Brand Name :
CSJY
Model Number :
JMC4805
Certification :
CE
Place of Origin :
CHINA
MOQ :
2
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
7 working days
Packaging Details :
carton
Input Voltage :
DC 24
Feedback Inputs :
Incremental encoder
Communication Ports :
RS232, RS485 (Modbus RTU), optional CAN bus
Obstacle Detection Method :
Motor current monitoring + encoder stall detection
Protection Features :
Overcurrent, overvoltage, undervoltage, short circuit
Rated/peak current :
5A / 15A
Infrared input :
6 independent interfaces, compatible with PNP and NPN
Dedicated output :
1-way clutch output
Power down and open the switch :
External 12V 1.3AH battery
Operating ambient temperature :
-20℃ ~ 55℃
Description

Integrated Driver and Controller Function Control Board for Swing Gate Turnstile


Product Description

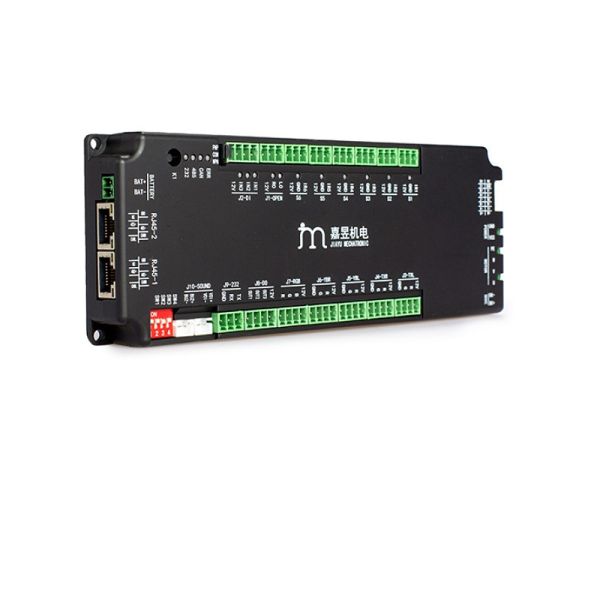

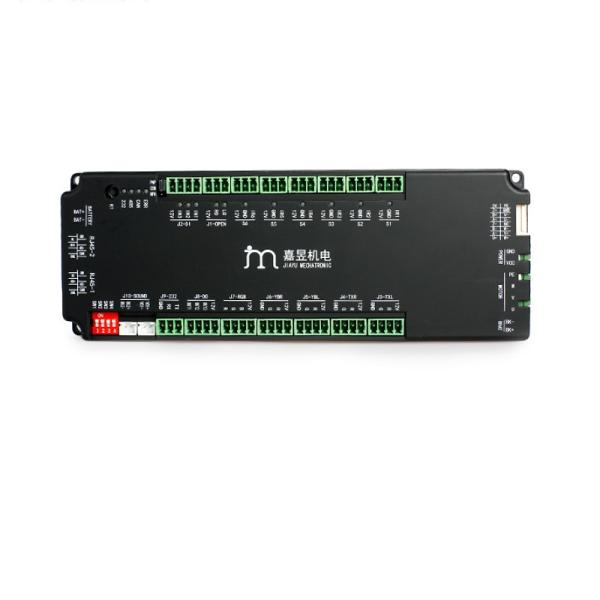

Designed as the central intelligence unit for automatic swing gate turnstiles, this Integrated Driver and Controller Function Control Board combines motor drive electronics, logic control, and I/O interfacing into a single, compact PCB. It eliminates the need for separate drive and control modules, simplifying installation, reducing wiring complexity, and improving overall system reliability for access control applications.


The board integrates a powerful microcontroller (MCU) with pre-programmed turnstile logic, supporting various operational modes (bi-directional, one-way, free passage, locked). It features multiple input/output ports for connecting to external access control systems (card readers, biometric scanners, push buttons), indicator lights, and safety sensors. Built-in protection circuits (overcurrent, overvoltage, short circuit, thermal shutdown) ensure safe operation in high-traffic environments.


Technical Specifications

Input voltage

24–48 VDC

Rated/peak current

5A / 15A

Adapt the motor

Low voltage servomotor

Communication interface

RS232 / RS485 / CAN

Infrared input

6 independent interfaces, compatible with PNP and NPN

Violent breaking through the gate

Built-in brake module

Encoder feedback

Incremental

Input and output signals

2 door openings + 3 expansion inputs/outputs

Typical Applications

  • Swing Gate Turnstiles (pedestrian access control, optical turnstiles)

  • Speed Lanes with glass or metal wings

  • Automatic Entrance/Exit Gates for offices, metro stations, airports, stadiums

  • Anti-Tailgating Security Pedestals

  • Retrofit Kits for existing manual swing gates (motorization upgrade)
