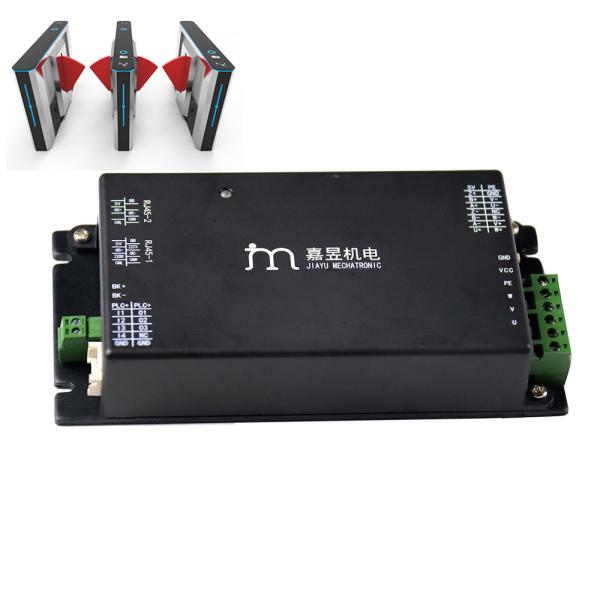

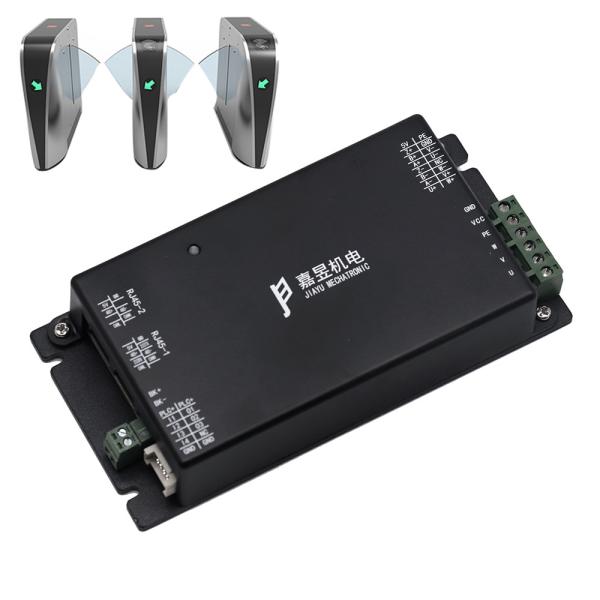

Compact Design DC24V Servo Driver EPS2408 for Fast Speed Gate

Product Description

The EPS2408 is a high-performance, ultra-compact servo driver specifically engineered for fast speed gates, swing barriers, and high-traffic pedestrian access control systems. Operating on a safe 24V DC low voltage, this driver provides precise motion control for brushless DC servo motors equipped with incremental encoders or Hall sensors, ensuring rapid, smooth, and reliable gate operation.

Designed with space-constrained installations in mind, the EPS2408 features an exceptionally compact form factor that fits easily inside slim speed gate pedestals, turnstile housings, and retrofit enclosures. Despite its small size, it delivers a rated current of 8A and a peak current of 15A, providing ample power for fast opening/closing cycles (0.3–0.8 seconds) commonly required in metro stations, airports, office lobbies, and stadiums.

Technical Specifications

Key Features

• Low-Voltage Safe Operation: 24V DC power input meets low-voltage safety standards, compatible with battery/UPS backup systems and suitable for public access areas.

• High Peak Current Capability: 8A continuous / 15A peak current enables fast motor acceleration and deceleration, achieving gate opening/closing times as low as 0.3–0.8 seconds.

• Advanced Servo Control: Implements Field Oriented Control (FOC) and sinusoidal commutation for smooth, silent, and vibration-free motor operation – critical for glass wing speed gates.

• Multiple Feedback Support: Compatible with incremental encoders (A/B/Z, up to 2500 PPR), Hall sensors, and optional absolute encoders.

• Programmable Motion Profiles: Adjustable speed, acceleration/deceleration curves, positioning accuracy, and soft start/stop parameters via DIP switches or serial communication.

• Integrated Obstacle Detection: Real-time torque/current monitoring and encoder stall detection automatically reverses or stops the gate upon obstruction, ensuring pedestrian safety (anti-crushing).
