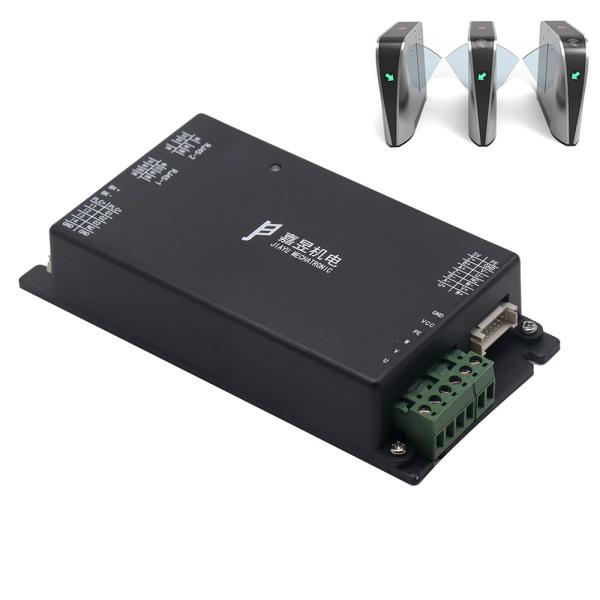

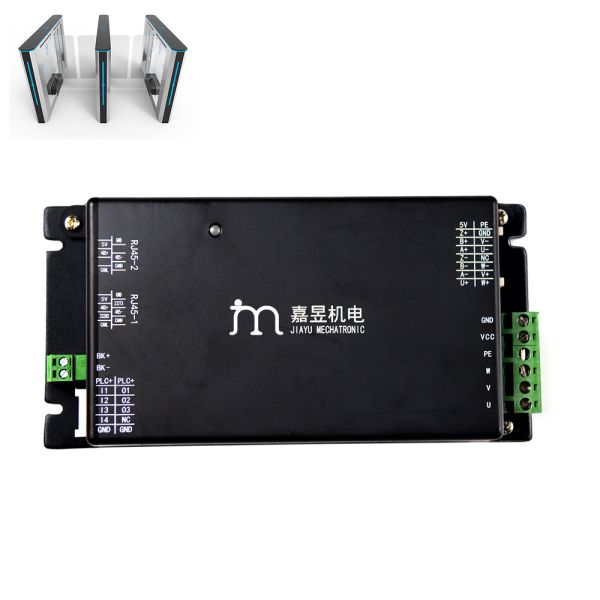

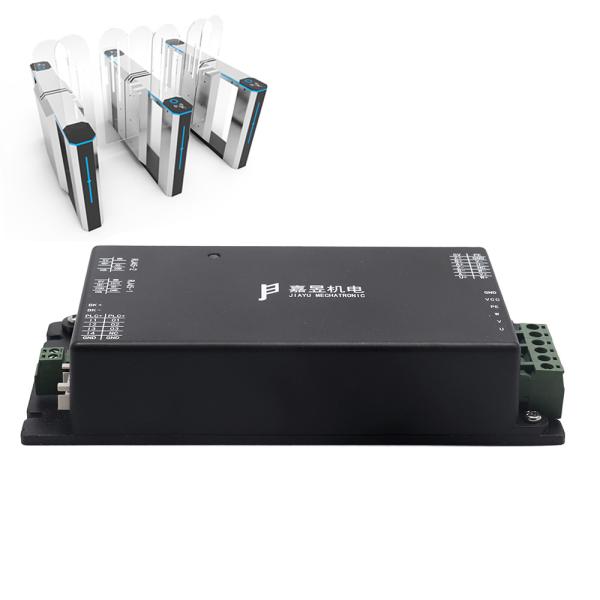

DC24V Servo Driver Matching Servo Motor for Swing Gate Turnstile

Product Description

The EPS2408 integrates advanced closed-loop vector control (FOC – Field Oriented Control) technology, enabling silent operation, minimal vibration, and precise torque/speed/position regulation. It supports multiple command modes (I/O, RS232, RS485 Modbus RTU) and features programmable acceleration/deceleration profiles, adjustable soft start/stop, and real-time obstacle detection for anti-crushing safety compliance.

Built with robust industrial-grade components, the driver includes comprehensive protection against overcurrent, overvoltage, undervoltage, short circuit, and overtemperature, ensuring reliable 24/7 operation in demanding public environments.

Technical Specifications

Key Features

• Low-Voltage Safe Operation: 24V DC power input meets low-voltage safety standards, compatible with battery/UPS backup systems and suitable for public access areas.

• High Peak Current Capability: 8A continuous / 15A peak current enables fast motor acceleration and deceleration, achieving gate opening/closing times as low as 0.3–0.8 seconds.

• Advanced Servo Control: Implements Field Oriented Control (FOC) and sinusoidal commutation for smooth, silent, and vibration-free motor operation – critical for glass wing speed gates.

• Multiple Feedback Support: Compatible with incremental encoders (A/B/Z, up to 2500 PPR), Hall sensors, and optional absolute encoders.

• Programmable Motion Profiles: Adjustable speed, acceleration/deceleration curves, positioning accuracy, and soft start/stop parameters via DIP switches or serial communication.

• Integrated Obstacle Detection: Real-time torque/current monitoring and encoder stall detection automatically reverses or stops the gate upon obstruction, ensuring pedestrian safety (anti-crushing).
