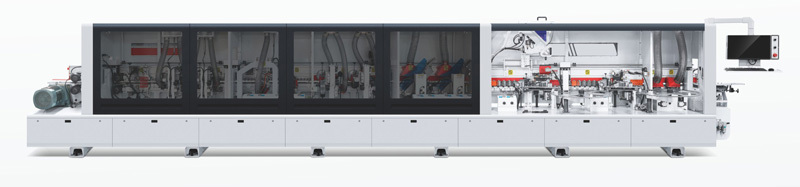

CR-818GSKD Edge Banding Machine with 15-23m/min Feed Speed Automatic Lifting and Pre-milling for Panel Edge Sealing
CR-818GSKD Edge Banding Machine with 15-23m/min Feed Speed Automatic Lifting and Pre-milling for Panel Edge Sealing
Specifications
Description
CR-818GSKD
Machine Functions
  • Pre-milling
  • Adhesive welt 1
  • Quick melt glue + glue pot 2
  • Double rail head
  • Rough finishing
  • Finishing
  • Trace trimming
  • Edge Shaving 1
  • Edge Shaving 2
  • Strickle
  • Polishing 1
  • Polishing 2
  • Front and rear cleaning
  • Hot lamp
  • Automatic lifting of the compression beam
Applications

This machine is suitable for panel furniture, door panel edge sealing, customized furniture, cabinet and wardrobe, office furniture, solid wood furniture, tables, chairs, doors and windows, wood products, and decoration industry applications.

Machinable Materials

Density board, Ecological board, Multi-layer board, Particleboard, Flat solid wood board, Aluminum honeycomb board, and similar materials.

Technical Specifications
Model CR-818GSKD
Total Power 28.87 KW
Feed Speed 15-23 m/min
Panel Width ≥45 mm
Sheet Length ≥120 mm
Edge Thickness 0.4-3 mm
Panel Thickness 10-60 mm
Electric Lifting 0.37 KW
Working Pressure 0.6 MPa
Overall Size (L * W * H) 9750 * 970 * 1900 mm
Component Brands
Component Brand
Oil Water Separator Easun
Corner Round Cylinder Air Tac
Proximity Switch Nokeci
Magnetic Valve Air Tac
Conveying Motor CPG/GER
PLC Taiwan Delta
High Speed Motor Rundwords
Glue Tank Sealing Ring Taiwan SOG
Frequency Converter Taiwan Delta
Limit Switch Korea Kacon
Glue Tank High Temperature Bearing Germany SWC
Touch Screen Lunluntongtai
Temperature Control Meter Korea Autonics
End Cutting and Other Cylinder Air Tac or WSM
Contactor SIMENS/Shilin, Taiwan
