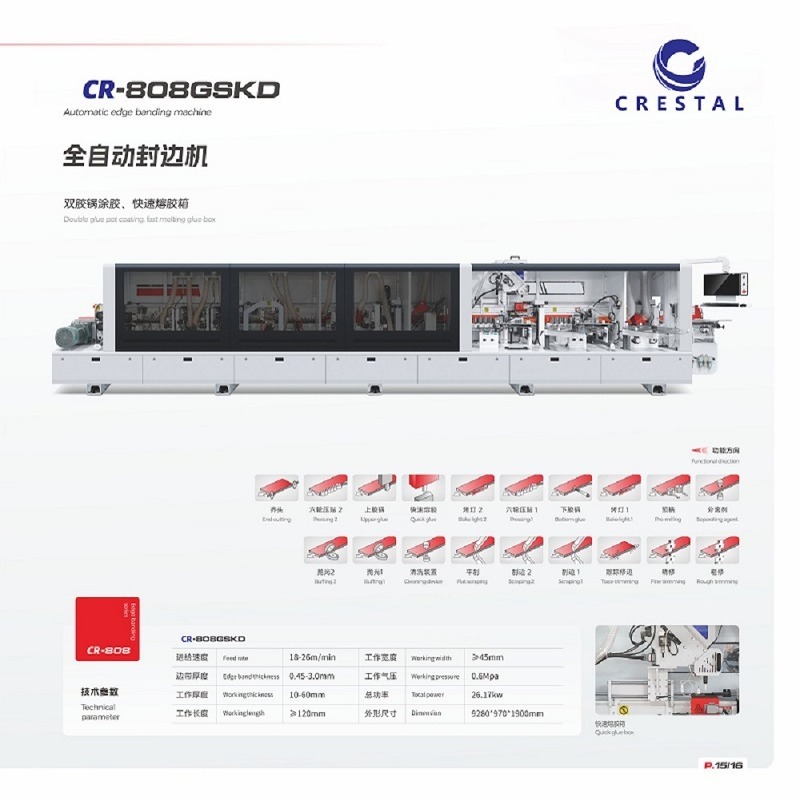

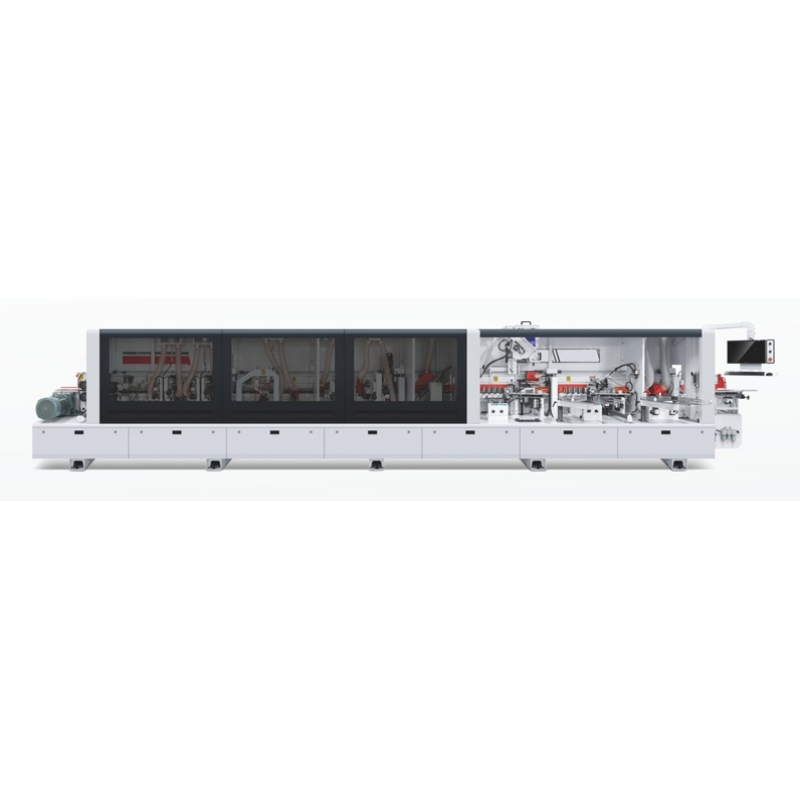

CR-808GSKD Straight Edge Bander with 25.47KW Total Power 15-23m/min Feed Speed and Automatic Pressure Beam Lift
CR-808GSKD Straight Edge Bander with 25.47KW Total Power 15-23m/min Feed Speed and Automatic Pressure Beam Lift
CR-808GSKD Straight Edge Bander with 25.47KW Total Power 15-23m/min Feed Speed and Automatic Pressure Beam Lift
CR-808GSKD Straight Edge Bander with 25.47KW Total Power 15-23m/min Feed Speed and Automatic Pressure Beam Lift
CR-808GSKD Straight Edge Bander with 25.47KW Total Power 15-23m/min Feed Speed and Automatic Pressure Beam Lift
CR-808GSKD Straight Edge Bander with 25.47KW Total Power 15-23m/min Feed Speed and Automatic Pressure Beam Lift
Specifications
Description
CR-808GSKD
Main Functions
  • Pre-milling
  • Glue pot 1
  • Fast melt glue + upper glue pot 2
  • End cutting
  • Rough trimming
  • Fine trimming
  • Corner rounding
  • Scraping 1
  • Scraping 2
  • Flat scraping
  • Buffing 1
  • Buffing 2
  • Front and rear cleaning
  • Heat lamp
  • Automatic pressure beam lift
Scope of Application

Suitable for panel furniture, custom furniture, cabinets and wardrobes, office furniture, solid wood furniture, tables, chairs, doors and windows, wood products, and interior decoration industries.

Processable Boards

Suitable for various boards such as MDF, eco-friendly boards, multi-layer boards, particle boards, flat solid wood boards, and aluminum honeycomb panels.

Technical Parameters
Parameter Specification
Model CR-808GSKD
Total Power 25.47 KW
Feed Speed 15-23 m/min
Panel Width ≥45mm (端头50mm)
Sheet Length ≥120mm
Edge Thickness 0.4-3mm
Panel Thickness 10-60mm
Electric Lifting 0.37 KW
Working Pressure 0.6 MPa
Overall Size (L x W x H) 9280 × 970 × 1900 mm
