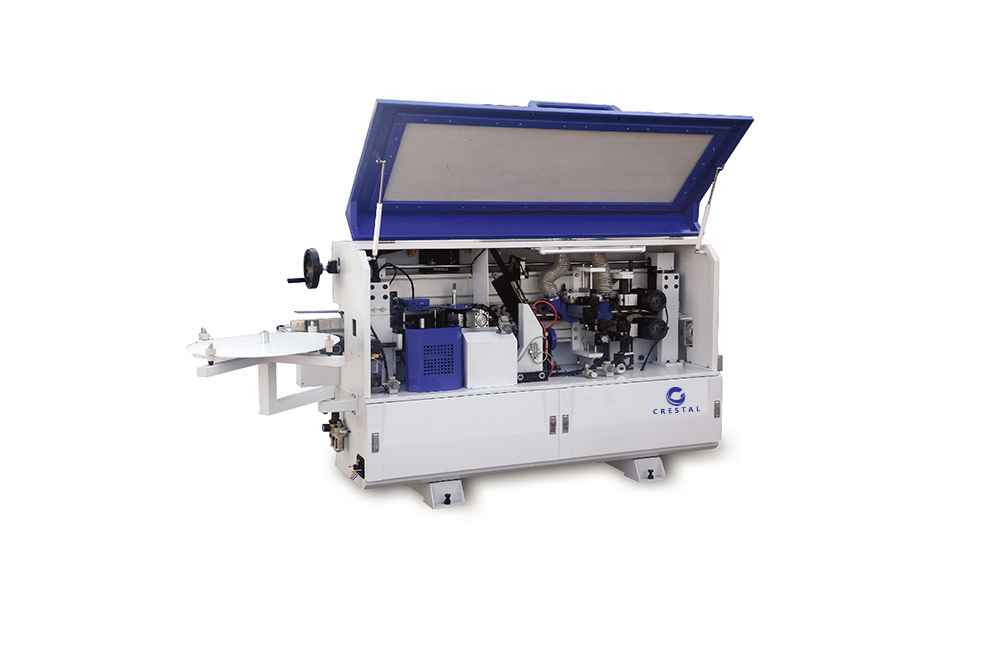

6.0KW Total Power Straight Edge Bander with 12~15m/min Feeding Speed for Pre-Milling and Fine Trimming
6.0KW Total Power Straight Edge Bander with 12~15m/min Feeding Speed for Pre-Milling and Fine Trimming
Specifications
Description
CR-5 Edge Banding Machine
Function & Application

Functions: Gluing, end cutting, fine trimming, buffing, pre-milling, rough trimming, corner trimming, scraping, slotting

Applications: Suitable for MDF, block board, solid wood board, particleboard, polymer door plates, plywood, and other materials for straight line edging and trimming.

Technical Specifications
Parameter Specification
Model CR-5
Total Power 6.0KW
Overall Size 2600×600×1400mm
Feeding Speed 12-15m/min
Panel Thickness 10-40mm
Edge Banding Tape Thickness 0.4-2mm
Panel Width ≥40mm
Working Air Pressure 0.8Mpa
Weight 900kg
Key Features
  • Ideal for building automatic production lines with superior stability and control
  • Pre-milling equipment with double trim-blades eliminates wave effects from precise sawing
  • Special glue mechanism ensures uniform gelatinization and solid adhesion
  • End-trimming mechanism with precise guide track movement and automatic tracking
  • Rough & fine trimming units with individual high-frequency motors
  • Scraping unit for perfect finishing of applied edges
  • Buffing device with cotton polishing wheels for smooth surfaces
  • Optional grooving function for panel slotting applications
Advantages
  • Domestic famous motors and high-quality electrical components
  • Firm and steady fuselage for enhanced machine stability
  • Aluminum alloy beam for superior precision and straightness
  • Auto cleaning, high precision, and high efficiency operation
  • Customizable machine configurations available
  • Automatic gluing procedure with integrated double finishing
  • Multiple air cylinders for precise material positioning
  • Secondary dust exhaust system for clean processing
  • Sound insulation, dust control, and manual micro-adjustment capabilities
