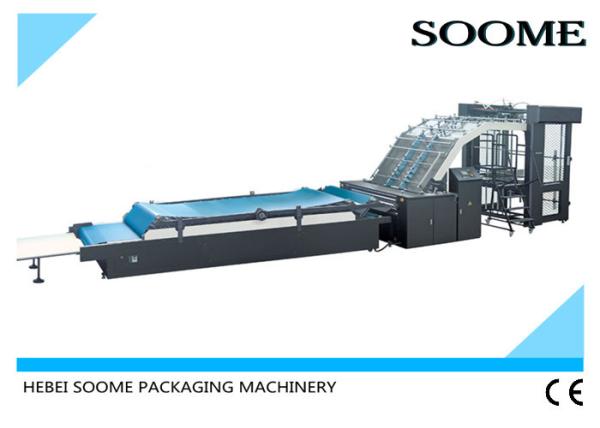

Vacuum Semi Automatic Flute Laminator Convenient For Making Surface Paper
Vacuum Semi Automatic Flute Laminator Convenient For Making Surface Paper
Vacuum Semi Automatic Flute Laminator Convenient For Making Surface Paper
Vacuum Semi Automatic Flute Laminator Convenient For Making Surface Paper
Specifications
Brand Name :
SOOME
Model Number :
SMTM-QZD-1600
Certification :
CE
Place of Origin :
Cangzhou, China
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
35sets per month
Delivery Time :
30-35days after deposit
Packaging Details :
Wrapped with film or in wooden case
Application :
For printed top paper pasting on bottom corrugated board
Automaticity :
Automatic
Economic speed :
0-100pcs/min.
Bottom board range :
A / B / C / E / F flute
Max. size of cover face :
1600mm x 1250mm
Min. size of cover face :
360mmx360mm
Lminating precision :
±1
Power :
11.5kw
Machine size :
11m x 2.25m x 1.5m
Machine weight :
4200kgs
Description

Vacuum Semi Automatic Flute Laminator Convenient For Making Surface Paper

I. General introduction

Flute laminating machine is used in packaging field. For high quality corrugated cartons making.

Usually for the high quality cartons, the top surface paper is printed by offset machinery so the patterns

is very clear and beautiful. Surface paper quality also is high grade. So use laminating machine to paste the high quality surface paper on the corrugated board which without top paper. Then the flat board can be very delicate.

II. Main feature

1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.

2. Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.

3. New concept front gauge location, position high accuracy, bottom sheet never pull ahead.

4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.

5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.

6. Roller design scientifically, avoid glue fly out when the speed is high.

7. Pressure rollers adopt one side adjustment, convenient and fast.

8. Rocker controls wash roller's fluctuation, easy cleaning.

9. Counter designs scientifically, easy recording the amount you have been worked.

III. Technological parameters:

Model SMTM-QZD-1400 SMTM-QZD-1600

Max. size of cover face

 1400mm x 1250mm 1600mm x 1250mm

Min. size of cover face

 360mm x 360mm 360mm x 360mm

Economic speed

 0-120 piece/min 0-120 piece/min

Precision

 ±1mm ±1mm

Power

 11.5kw 11.5kw

Size

 11m x 2.05m x 1.5m 11m x 2.25m x 1.5m

Weight

 About 3.9T About 4.2T

Vacuum Semi Automatic Flute Laminator Convenient For Making Surface Paper Vacuum Semi Automatic Flute Laminator Convenient For Making Surface Paper
