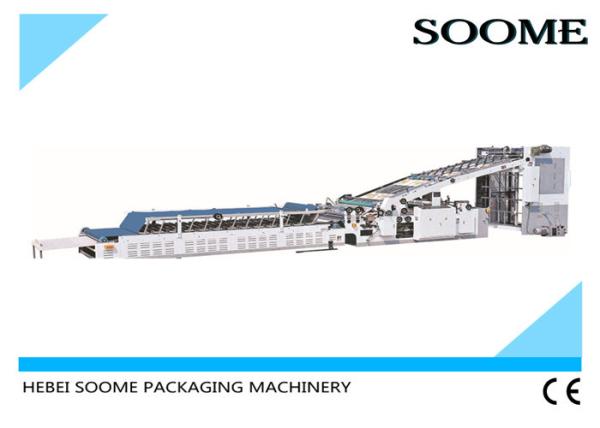

Heavy Duty Flute Laminating Machine , Top Paper Auto Flute Laminator 12kw
Heavy Duty Flute Laminating Machine , Top Paper Auto Flute Laminator 12kw
Heavy Duty Flute Laminating Machine , Top Paper Auto Flute Laminator 12kw
Heavy Duty Flute Laminating Machine , Top Paper Auto Flute Laminator 12kw
Specifications
Brand Name :
SOOME
Model Number :
SMTM-QZD-1450
Certification :
CE
Place of Origin :
Cangzhou, China
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
35sets per month
Delivery Time :
30-35days after deposit
Packaging Details :
Wrapped with film or in wooden case
Application :
For printed top paper pasting on bottom corrugated board
Automaticity :
Automatic
Design speed :
6000 sheets / h
Bottom board range :
A / B / C / E / F flute
Max. size of cover face :
1100mm x 1450mm
Min. size of cover face :
350mmx350mm
Lminating precision :
≦±1.5mm
Power :
12kw
Machine size :
12.5m x 2.25m x 1.5m
Machine weight :
7200kgs
Description

Heavy Duty Flute Laminating Machine , Top Paper Auto Flute Laminator 12kw

I. General introduction

Flute laminating machine is used in packaging field. For high quality corrugated cartons making.

Usually for the high quality cartons, the top surface paper is printed by offset machinery so the patterns

is very clear and beautiful. Surface paper quality also is high grade. So use laminating machine to paste the high quality surface paper on the corrugated board which without top paper. Then the flat board can be very delicate.

II. Main feature

1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.

2. Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.

3. New concept front gauge location, position high accuracy, bottom sheet never pull ahead.

4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.

5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.

6. Roller design scientifically, avoid glue fly out when the speed is high.

7. Pressure rollers adopt one side adjustment, convenient and fast.

8. Rocker controls wash roller's fluctuation, easy cleaning.

9. Counter designs scientifically, easy recording the amount you have been worked.

III. Technological parameters:

Model SMTM-QZD-1300 SMTM-QZD-1450 SMTM-QZD-1600

Max. size of cover face

 1100mmx1300mm 1400mm x 1250mm 1600mm x 1250mm

Min. size of cover face

 350mm x 350mm 350mm x 350mm 350mm x 350mm

Design speed

 6000sheets/h 6000sheets/h 6000sheets/h

Precision

 ≦±1.5mm ≦±1.5mm ≦±1.5mm

Total power

 12kw 12kw 13kw

Machine length

 12.5m 12.5m 15m

Weight

 About 6.8T About 7.2T About 8.0T

Heavy Duty Flute Laminating Machine , Top Paper Auto Flute Laminator 12kwHeavy Duty Flute Laminating Machine , Top Paper Auto Flute Laminator 12kw
