Electric Flute auto feed laminator Heavy Duty Corrugated Laminator Machine
Electric Flute auto feed laminator Heavy Duty Corrugated Laminator Machine
Electric Flute auto feed laminator Heavy Duty Corrugated Laminator Machine
Electric Flute auto feed laminator Heavy Duty Corrugated Laminator Machine
Electric Flute auto feed laminator Heavy Duty Corrugated Laminator Machine
Electric Flute auto feed laminator Heavy Duty Corrugated Laminator Machine
Specifications
Brand Name :
SOOME
Model Number :
SMTM-BZD-1600
Certification :
CE
Place of Origin :
Made In China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets/Month
Delivery Time :
30 Days
Packaging Details :
Wapped With Film
Condition :
New
Automatic Grade :
Semi- automatic
Voltage :
220V/380V
Weight :
6T
Warranty :
1 Year
Driven Type :
Electric
Description

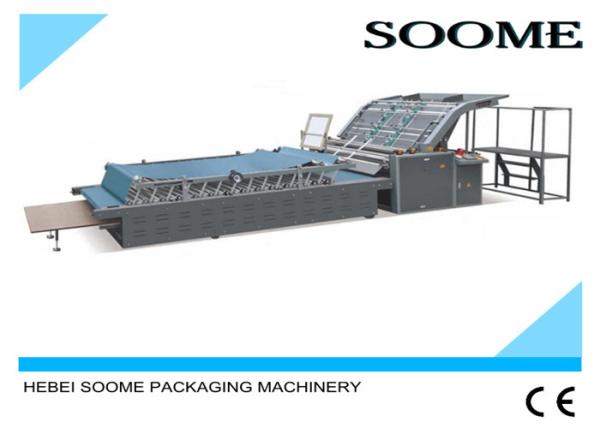

Electric Flute Auto Feed Laminator Heavy Duty Corrugated Laminator Machine

Instruction:

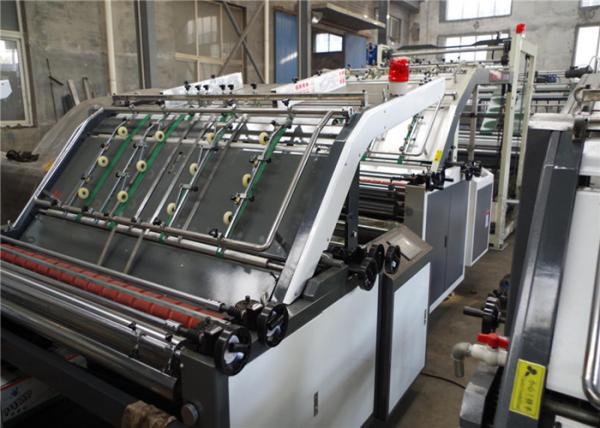

This Semi automatic flute laminator use bottom sheet automatically sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for color top sheet and corrugated paper laminating, color top sheet and grey cardboard laminating.

Feature:

1. Board paper laminating machine

2. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking

3. The humanized design that manually feeding from the front makes delivery more easier and efficient.

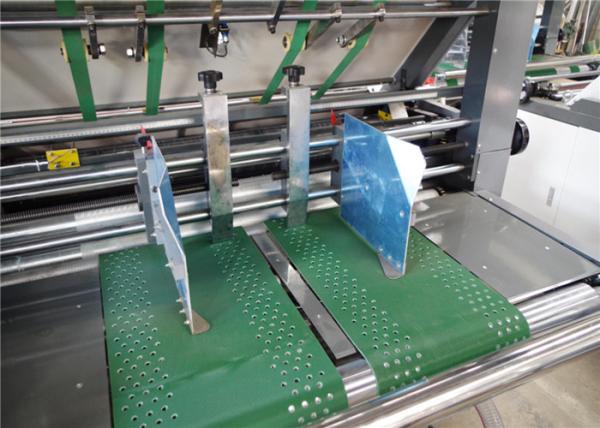

4. Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.

5. Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm

6. The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;

7. The scientific design of the metering roller speed to ensure the glue evenly on the same time, to avoid rejection of glue at high speed.

8. Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick control of water tank cleaning cycle using an independent method, clean, hard rubber product.

9. Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating;

10. Color top sheet 175-500g and grey cardboard paper laminating

Model Max.Sheet size Min.Sheet size Total power Speed Weight Measurement
1100 1100*1100mm 350*350mm 8kw 0-90m/min 4500kg 8000*1770*1750mm
1300 1300*1250mm 350*350mm 8kw 0-90m/min 5000kg 8000*1970*1750mm
1450 1450*1250mm 350*350mm 9kw 0-90m/min 5500kg 8000*2020*1750mm
1650 1650*1250mm 350*350mm 11kw 0-90m/min 6000kg

8000*2250*1750mm

Main Electronics

No. Name Brand Add
1 SERVO MOTOR DELTA TAIWAN
2 AC DRIVE DELTA TAIWAN
3 INVERTER DELTA TAIWAN
4 MAIN MOTOR MENGNIU

CHINA
5 TOUCH SCREEN MCGS

CHINA
6 PLC

DELTA

 TAIWAN
7 TRANSFORMER RENMIN SHANGHAI
8 OTHER ELECTRIC SYSTERM

CHINT

 CHINA
9 BEARING Rhonda CHINA
11 BELT

MEGAPOWER

 ITALY
12 COMPRESSOR JINZENG CHINA

Electric Flute auto feed laminator Heavy Duty Corrugated Laminator Machine
