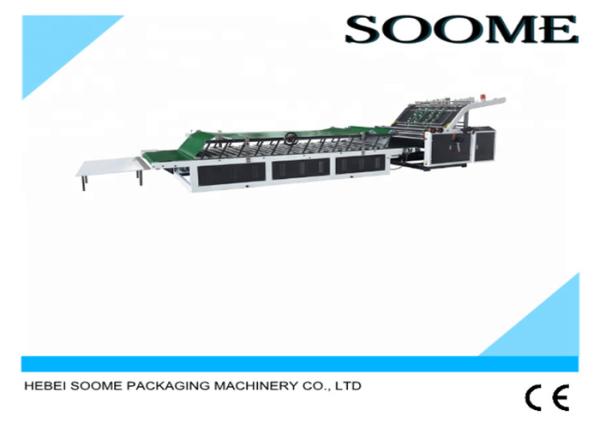

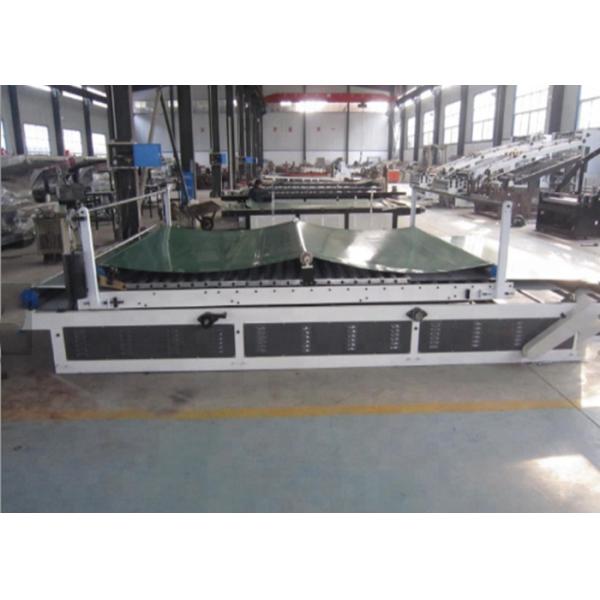

Semi Automatic Flute Laminating Machine Heavy Duty Corrugated Laminator Machine
Semi Automatic Flute Laminating Machine Heavy Duty Corrugated Laminator Machine
Semi Automatic Flute Laminating Machine Heavy Duty Corrugated Laminator Machine
Semi Automatic Flute Laminating Machine Heavy Duty Corrugated Laminator Machine
Specifications
Brand Name :
SOOME
Model Number :
SMTM-BZD-1500
Certification :
CE
Place of Origin :
Made in China
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30-35 days after deposit
Packaging Details :
Wrapped with film or in wooden case
Automaticity :
Semi automatic
Economic speed :
0-120pcs/min.
Bottom board range :
A / B / C / E flute
Max. size of cover face :
1500x1100mm
Min. size of cover face :
360x360mm
Warranty :
1 Year
Machine size :
10.66×2.23×1.26m
Machine weight :
2500kg
Description

Semi Automatic Flute Laminating Machine Heavy Duty Corrugated Laminator Machine

I. General introduction

Flute laminating machine is used in packaging field. For high quality corrugated cartons making.Usually for the high quality cartons, the top surface paper is printed by offset machinery so the patterns is very clear and beautiful. Surface paper quality also is high grade. So use laminating machine to paste the high quality surface paper on the corrugated board which without top paper. Then the flat board can be very delicate.

II. Features

This machine has adsorbing wind belt transmission function, and settle the problern of corrugating paper arch and hold up.Adopt bottom paper pushing feeding paper,orientation exact,convenience stable,high speed,low noise.Ensure the machine capability stable and reliable,users can adopt two jointing function of in-phase and front according to self need.

III. Technological parameter

Model SMTM-BZD-1300 SMTM-BZD-1500
Max. size of cover face 1300×1100mm 1500×1100mm
Min. size of cover face 360×360mm 360×360mm
Machinery speed 0-120m/min 0-120m/min
Whole machine size 10.66×1.98×1.26m 10.66×2.23×1.26m
Total power 4.3kw 4.3kw
Tissue request clip paper ≥200g/m2 ≥200g/m2
Bottom paper request dip paper ≥250g/m2 ≥250g/m2


Semi Automatic Flute Laminating Machine Heavy Duty Corrugated Laminator Machine
