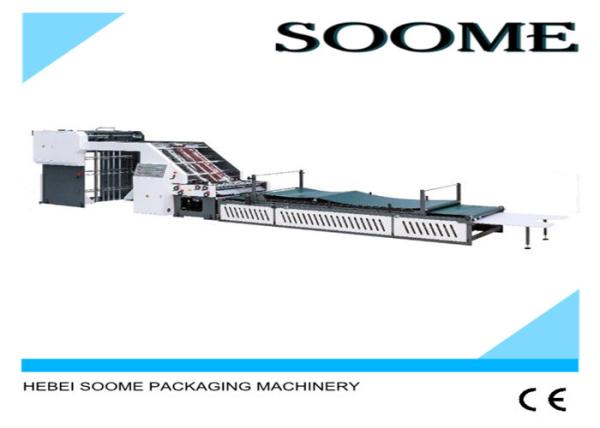

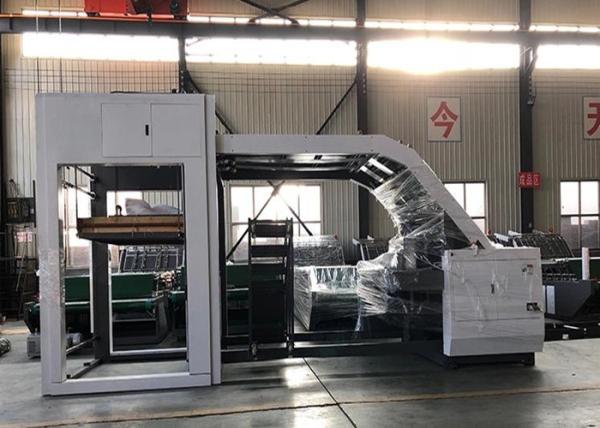

Electrical Auto Lamination Machine Intelligent With Vacuum Suction Type

Main Feature

1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.

2. Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.

3. New concept front gauge location, position high accuracy, bottom sheet never pull ahead.

4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.

5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.

6. Roller design scientifically, avoid glue fly out when the speed is high.

7. Pressure rollers adopt one side adjustment, convenient and fast.

8. Rocker controls wash roller's fluctuation, easy cleaning.

9. Counter designs scientifically, easy recording the amount you have been worked.

Information For Laminating Machine

1.Top board/Paper thickness- minimum and maximum:Min.:175g, Max.:350g,Top paper must be flat.
2. Ply thickness and quality can feed in this machine:Min.: 2ply E flute,Max.: 4ply A+A flute less than 10mm corrugated sheet must be flat.
3. Servo Specification:1.5KW SERVO MOTOR, Brand: Shilin or Delta from TAIWAN.
4. Electrical parts/ PLC/Motor brand:Adopt 3 Inverter, 1 PLC, brand: Shilin or DELTA from TAIWAN.
5. What component will come along with machine and what other equipment has to arrange by customer:

Machine include: Host machine 1 set, pressure part 1 set, Air compressor 1set, wind pump 1set, glue pump 1 set, table 1 set.Customer arrange: Glue, top paper, corrugated sheet, wire
6. Required Power supply inputs:14kw.
7. What support you will give in first Installation:Operation book and circuit diagram.
8. What spares I have to keep in stock for after sales service and what is dealer and customer price of that list:I will give you some spring as free spare parts. The others are not easy to broken.
9. Specification of glue applying system and glue circulatory system:Automatic gluing, and automatic circulatory.
10. Scope of standard warranty:1 year warranty for the machine. But not include electric parts.
