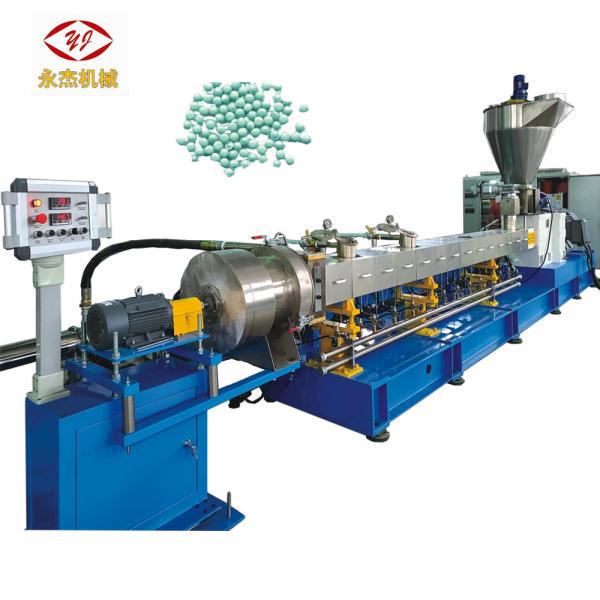

2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant
2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant
2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant
2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant
2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant
2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant
2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant
2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant
2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant
2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant
2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant
2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant
2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant
2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant
Specifications
加工塑料类型 :
PE, PP, HDPE, HDPE/PP, PE/PP, LLDPE, LDPE
应用 :
颗粒
螺杆设计 :
双螺杆
双螺杆类型 :
同向平行双螺杆
螺杆材质 :
W6Mo5Cr4V2
螺杆直径（mm） :
71.8
螺杆长径比 :
52:1
螺杆转速 (rpm) :
800 rpm
原产地 :
Jiangsu, China
品牌 :
YongJie
电压 :
380V 50HZ
尺寸(长×宽×高) :
型号
功率 （kW） :
315
保修期 :
1年
核心卖点 :
全自动
视频出厂验货 :
可提供
核心组件 :
电机, PLC, 齿轮箱
机械测试报告 :
可提供
颜色 :
任何颜色作为您的要求
提供售后服务 :
工程师可在海外为机械提供服务
L/D :
32-62
RPM( r/min) :
600
T/N :
4.4/4.8
为工作 :
PP/PE + 80-92% caoc3
功能 :
塑料配料和造粒
逆变器 :
ABB品牌
电机品牌 :
WN/Siemens Beide/ WEG
认证 :
CE ISO
营销类型 :
2020年新产品
状态 :
New
展示厅地点（在海外哪些国家有样品间） :
None
适用行业 :
生产车间
核心组件质保期 :
1年
重量 :
6 KG
Description

2.5tons per hour Twin screw extruder machine plastic pellet granule making machine plant

The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

Product Description

1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.

2.LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.

3.PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.

4.PE, ABS, PS, EVA masterbatch etc.

5.ABS, EVA flaming retarding masterbatch etc.

6.PE, PP, PS filling and biodegradable masterbatch, etc.

Main technical data of various model of twin screw extruder plastic pellet granule making machine

Model type

Series

Barrel Diameter (mm)

Screw Diameter (mm)

Screw L/D

screw speed n(r/min)

Main motor power(Kw)

Screw torque T(N.m)

Torque rating (T/A3)

Typical production capacity (kg/h)

SJSL20

A/B

22

21.7

32-44

500/600

4/5.5kw

30/30

SJSL-36

A/B/C/D

36

35.6

32-48

400/600

11/15/18.5/22

125-225

4.6-8.3

30-120

SJSL-51

A/B/C/D

51

50.5

32-52

500/600

45/55/75/90

405-680

5.1-8.5

120-400

SJSL-65

A/B/C/D

63

62.4

32-64

500/600

75/90/110/132

680-1200

4.8-8.5

180-750

SJSL-75

A/B/C/D

72

71

32-64

500/600

110/132/160/250

995-1890

4.6-8.7

300-1200

SJSL-95

A/B/C/D

94

93

32-64

500/600

250/315/450/550

2260-4510

4.7-8.7

700-2500

SJSL-135

A/B/C/D

135

133

32-48

400/500

550/750/900/1200

6200-10800

4.4-7.7

1550-6500
Image & Data

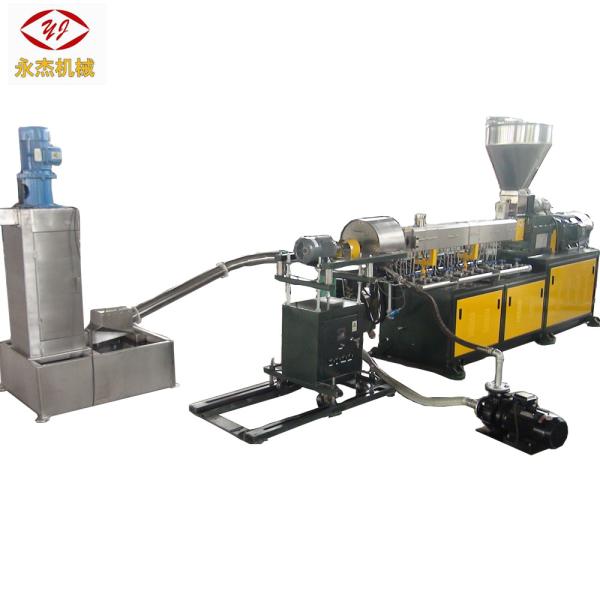

Twin screw extruder plastic pellet granule making machine Filler masterbatch machine sjsl-75D

2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant

2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant

2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant

Application for twin screw extruder machine plastic pellet granule making machine

.

Other product

Twin screw extruder plastic elletizing in the water line

2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant

Air-cooling hot-face twin screw extruder plastic pelletizing line

2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant

Air-cooling strand twin screw extruder plastic pelletizing line

2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant

2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant

2.5tons Per Hour Twin Screw Extruder Machine Plastic Pellet Granule Making Machine Plant

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. how long is the warranty?

We can offer one-year warranty for the whole machine.
