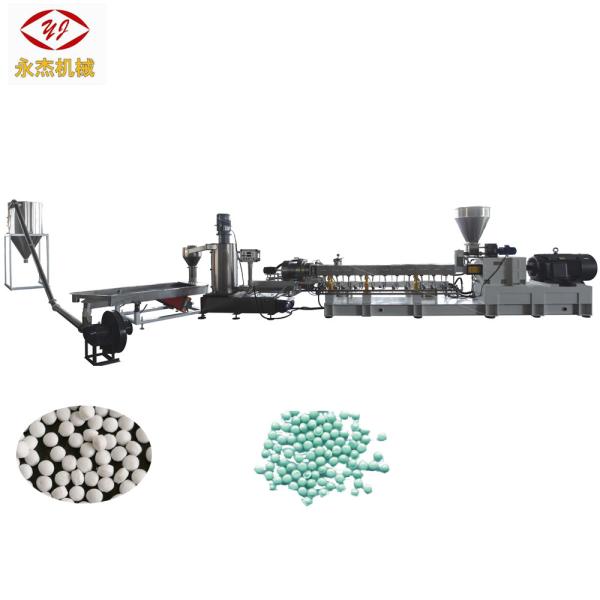

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine
China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine
China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine
China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine
China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine
China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine
China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine
China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine
China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine
China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine
China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine
China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine
China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine
China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine
Specifications
plastic processed :
HDPE, HDPE/PP, PE/PP, Lldpe, PP, MLLDPE, LDPE
output (kg/h) :
1600 - 2000 kg/h
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Gearbox, motor
Place of Origin :
Jiangsu, China
Brand Name :
YONGJIE
screw design :
Double
voltage :
Customized
dimension(l*w*h) :
Size
power (kw) :
315
warranty :
1 Year
twin screw type :
Co-rotating Parallel Twin-screw
screw speed (rpm) :
50 - 800 rpm
After-sales Service Provided :
Engineers available to service machinery overseas
Material :
PP/PE
Color :
Custom- Made
Application :
Granules Production
Inverter :
Customizable
Machine Type :
Extrusion Plastic Machine
Marketing Type :
New Product 2020
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
None
Certification :
CE ISO
Condition :
New
Warranty of core components :
1 Year
Type :
Granulating Production Line
Showroom Location :
None
Applicable Industries :
Manufacturing Plant
Weight :
8000KG
Description

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machiner

water ring plastic pelletizing machine can be used to the processing and application of

filling and modified of polymer compounding material

Application for water ring plastic pelletizing line:

For: PE, EVA etc. + CaCo3, talc, Tio2, filling modified

and carbon black etc.

For: LDPE , HDPE , LLDPE , MDPE , drivepipe,

insulation material , crosslinking material,

cable coating material ,thermal contraction

pipe material, etc.

For: PPR pipe compounds, PE crosslinking tube

material, TPR, TPU thermoplastic elastomer,

EVA and hot melt adhesive etc.

For: PE, ABS, PS, EVA masterbatch, etc.

For: ABS, EVA Flaming retarding masterbatch, etc.

For: PE, PP, PS filling masterbatch, etc.

Flow digram:

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine

Water ring Plastic pelltetizing line photos:

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine

Extruder material description:

PLC electric control

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine

Gearbox

The gear is made of high quality alloy (20CrNi2Mo).It had been treated by cementation process, the precision grade can reach 6th.

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine

Screw

1.The screw elements are made of W6Mo5Cr4V2(6542#)high speed tool steel that had been treated by the vacuum hardening process with the hardness of the surface is HRC58-62.

2. The screw elements are connected to the core axle through involute spline.

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine

Screen changer

Automatic hydraulic screen changer, double-position, elliptic shape.

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine

Auxiliary machinery for water-ring granulating line:

Centrifugal dehydrator:

100kg--3kw; 300kg--4kw; 500kg--5.5kw;

800kg--7.5kw; 1000kg--11kw

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine

Vibrating sieve

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine

Storage bin

China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. How long is the warranty?

We can offer one-year warranty for the whole machine.
