Specifications
plastic processed :
PP/PVC/WPC/PE/ABS/XPS/Polystyrene
application :
Granules
Screw Design :
Double-screw
screw diameter (mm) :
62.4 mm
Place of Origin :
Jiangsu, China
Brand Name :
YongJie
voltage :
380V 50HZ
dimension(l*w*h) :
Model
warranty :
1 Year
key selling points :
Energy saving
After-sales Service Provided :
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Keyword :
extruder plastic machine
Name :
YongJie
Color :
any color as your require
Diameter(mm) :
63
L/D :
32-62/32-64
RPM ( r/min) :
400/500/600/800
T/N :
4.4/4.8
Capacity (Kg/h) :
160-500
Torque(N.m) :
620/675/620
Output (kg/h) :
200 - 300 kg/h
Automatic Grade :
High Automation
Certification :
CE ISO9001
Power :
55/75/90/110kw
Applicable Industries :
Manufacturing Plant
Condition :
New
Weight :
1t-10t
Description

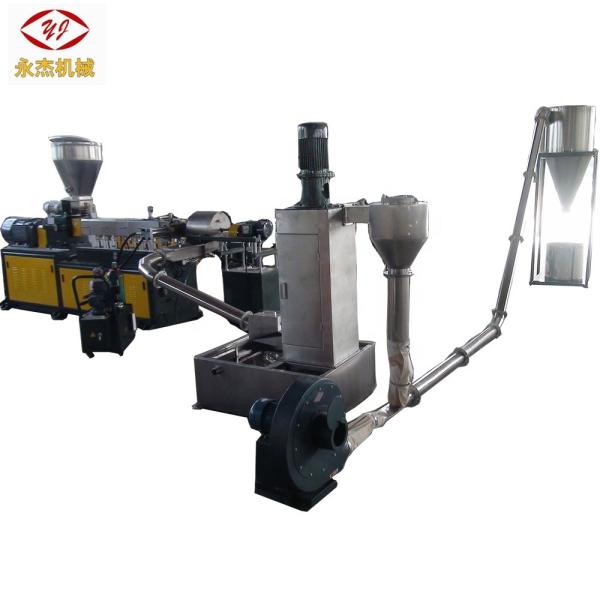

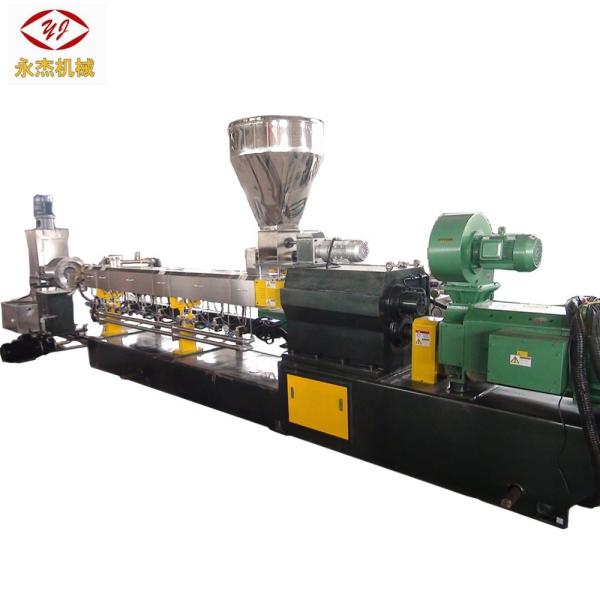

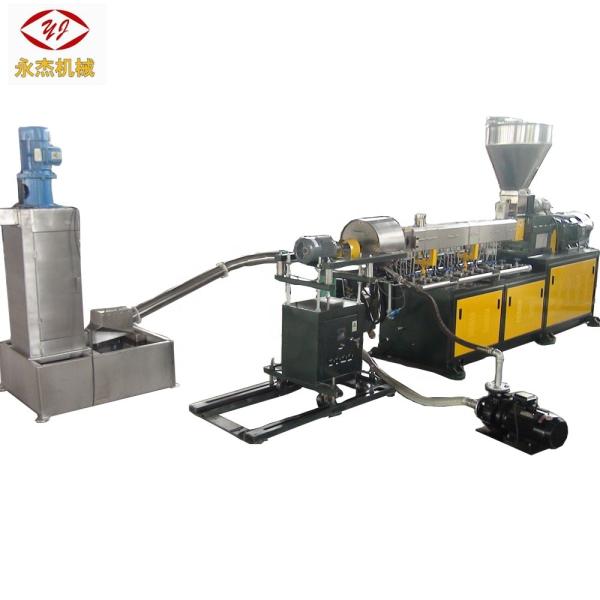

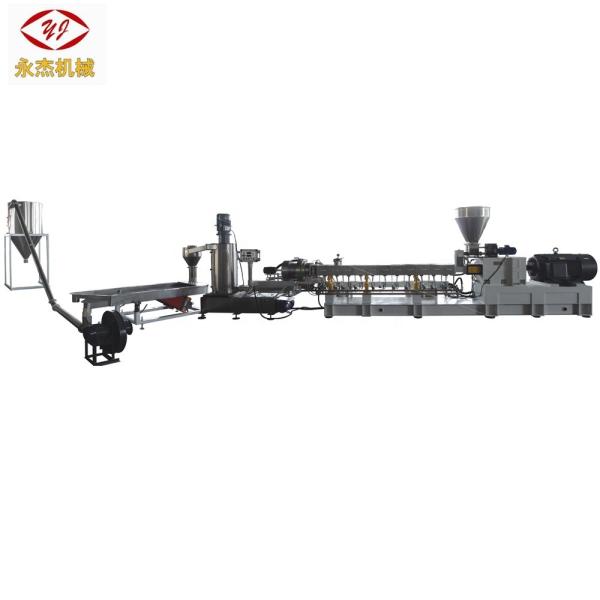

OEM twin screw plastic extruder machine for masterbatch

The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

Model Diameter(mm) L/D RPM ( r/min) Power (Kw) Torque(N.m) T/N Capacity (Kg/h)
SJSL-202032-446005.5304.86.5-15
SJSL-363632-48600151154.230-75
SJSL-51A5132-52500454055.1100-200
SJSL-51B5132-52600554155.2150-25
SJSL-63A6332-62400 55 620 4.4 160-250
500756754.8200-300

SJSL-63B

6332-64600 90 675 4.8 225-375
8001106204.4300-500
SJSL-75A7232-64400 90 1015 4.7 225-350
50011010054.6300-550
SJSL-75B7232-64600 132 990 4.6 400-650
8001609004.2480-800
SJSL-92A9232-64400 2502815 5.9 650-1050
50022504.7750-1250
SJSL-92B9232-64600 2802365 5.0 900-1500
80022504.71200-2000
SJSL-135A13532-4840031561904.61500-2500
SJSL-135B13532-4850040067505.1200-3500
OEM Twin Screw Plastic Extruder Machine for Masterbatch

OEM Twin Screw Plastic Extruder Machine for MasterbatchOEM Twin Screw Plastic Extruder Machine for Masterbatch

Application for water-ring hot face production line

1. Filling master batch: PE, EVA, etc. + caco3, talc, filling modified and carbon black etc.

2. LDPE, HDPE, LLDPE, MDPE, drivepipe, insulation material, crosslinking material,

cable coating material , thermal contraction pipe material.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic

elastomer, EVA and hot melt additives.

4. Color mater batch: PE, ABS, PS, EVA master batch, etc.

5. ABS, EVA flaming retarding master batch, etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.

Auxiliary

Water-ring cover

pelletizer

OEM Twin Screw Plastic Extruder Machine for Masterbatch

Centrifugal dehydrator

OEM Twin Screw Plastic Extruder Machine for Masterbatch

Vibrating sieve

OEM Twin Screw Plastic Extruder Machine for Masterbatch

Bin

OEM Twin Screw Plastic Extruder Machine for Masterbatch

Other product

Pelletizing in the water line

OEM Twin Screw Plastic Extruder Machine for Masterbatch

Air-cooling strand pelletizing line

OEM Twin Screw Plastic Extruder Machine for Masterbatch

Air-cooling hot-face pelletizing line

OEM Twin Screw Plastic Extruder Machine for Masterbatch

Water-cooling stand pelletizing line

OEM Twin Screw Plastic Extruder Machine for Masterbatch

OEM Twin Screw Plastic Extruder Machine for Masterbatch

OEM Twin Screw Plastic Extruder Machine for Masterbatch

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. How long is the warranty?

We can offer one-year warranty for the whole machine.
