Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine
Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine
Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine
Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine
Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine
Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine
Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine
Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine
Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine
Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine
Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine
Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine
Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine
Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine
Specifications
plastic processed :
HDPE, HDPE/PP, PE/PP, Lldpe, PP
output (kg/h) :
400 - 500 kg/h
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Gearbox, motor
Place of Origin :
Jiangsu, China
Brand Name :
YONGJIE
screw design :
Double
voltage :
Customized
dimension(l*w*h) :
Size
power (kw) :
132
warranty :
1 Year
twin screw type :
Co-rotating Parallel Twin-screw, Co-rotating Parallel Twin-screw
Screw L/D Ratio :
48:1, 48:1
screw speed (rpm) :
50 - 500 rpm
Barrel diameter :
73
Color :
Custom- Made
Application :
Granules Production
Inverter :
ABB/DELTA
Machine Type :
Extrusion Plastic Machine
Max. Capacity :
100-500kg/h
Certification :
CE ISO
Temp. control meter :
OMRON
Condition :
New
Warranty of core components :
1 Year
Type :
Granulating Production Line
Screw diameter (mm) :
71, 71
Showroom Location :
None
Applicable Industries :
Manufacturing Plant
Weight :
5000
Description

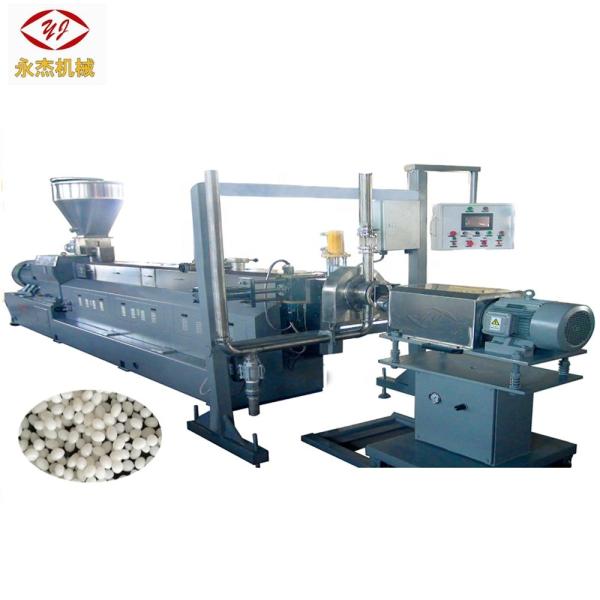

Twin screw extruder machine underwater cutting system

Underwater pelletizing machine can be used to the processing and application of the vast majority high polymer material, especially the special material the other cutting system is not available. such as: TPU, TPV and so on. The main part usually include: driving valve, screen changer, underwater pelletizer, centrifugal dehydrator, vibrating sieve, product container and so on.

Application for underwater pelletizing:

Thermoplastic elastomer:

PP+SBS=TPR, PP+SEBS=TPE, PP+EPDM=TPV, TPU, EVA.

Flow digram:

Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine

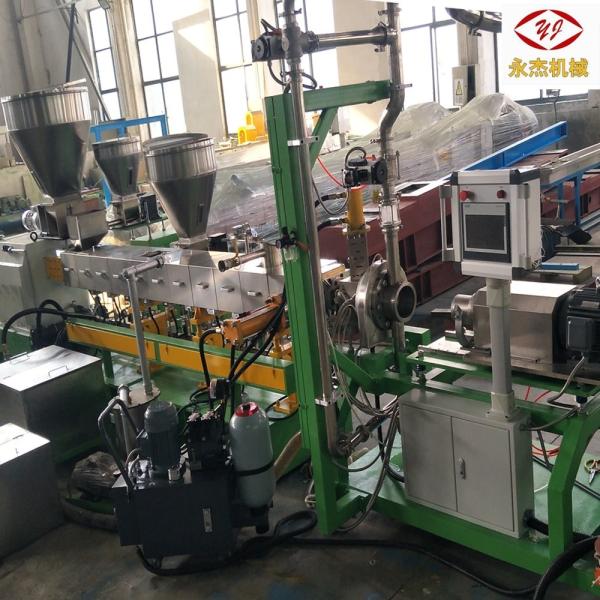

Under water production line:

Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine

Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine

Extruder material description:

PLC electric control

Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine

Gearbox

The gear is made of high quality alloy (20CrNi2Mo).It had been treated by cementation process, the precision grade can reach 6th.

Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine

Screw

1.The screw elements are made of W6Mo5Cr4V2(6542#)high speed tool steel that had been treated by the vacuum hardening process with the hardness of the surface is HRC58-62.

2. The screw elements are connected to the core axle through involute spline.

Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine

Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine

Screen changer

Automatic hydraulic screen changer, double-position, elliptic shape.

Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine

Auxiliary machinery for water-ring granulating line:

Centrifugal dehydrator:

100kg--3kw; 300kg--4kw; 500kg--5.5kw;

800kg--7.5kw; 1000kg--11kw

Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine

Vibrating sieve

Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine

Storage bin

Twin Screw Extruder Machine Plastic Underwater Pelletizer Machine

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. How long is the warranty?

We can offer one-year warranty for the whole machine.
