Specifications
plastic processed :
PE/PP, PP
output (kg/h) :
250 - 300 kg/h
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Gearbox
Place of Origin :
Jiangsu, China
Brand Name :
YongJie
screw design :
Double
voltage :
380v50hz
dimension(l*w*h) :
MODEL
power (kw) :
90
warranty :
1 year
twin screw type :
Co-rotating Parallel Twin-screw, Co-rotating Parallel Twin-screw
Screw L/D Ratio :
48:1, 48:1
screw speed (rpm) :
50 - 600 rpm
Color :
any color as your require
Diameter(mm) of barrel :
63
Motor brand :
Siemens Beide/WN
Temp. control meter :
Omron
Torque(N.m) :
405/415
T/N :
5.1/5.2
pellets shape :
elliptical
Cutting :
in the water cutting/underwater cutting
Certification :
CE ISO9001
Material of barrel :
45# forged steel
Condition :
New
Warranty of core components :
1 Year
Type :
Granulating Production Line
Screw diameter (mm) :
62.4, 62.4
Showroom Location :
None
Applicable Industries :
Manufacturing Plant
Weight :
4500
Description

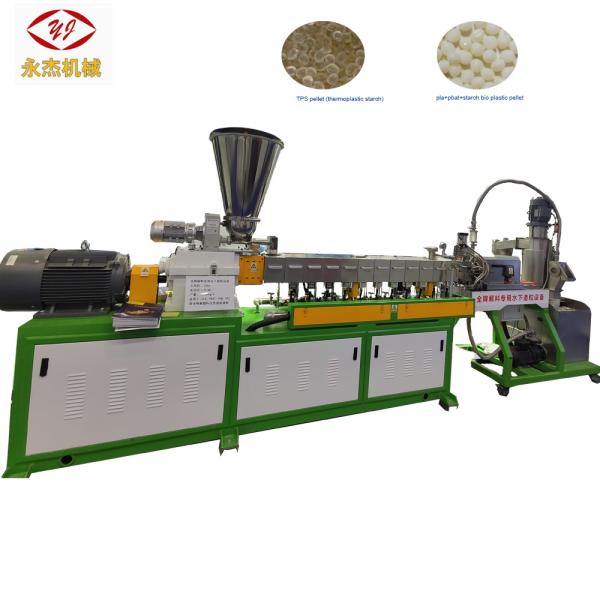

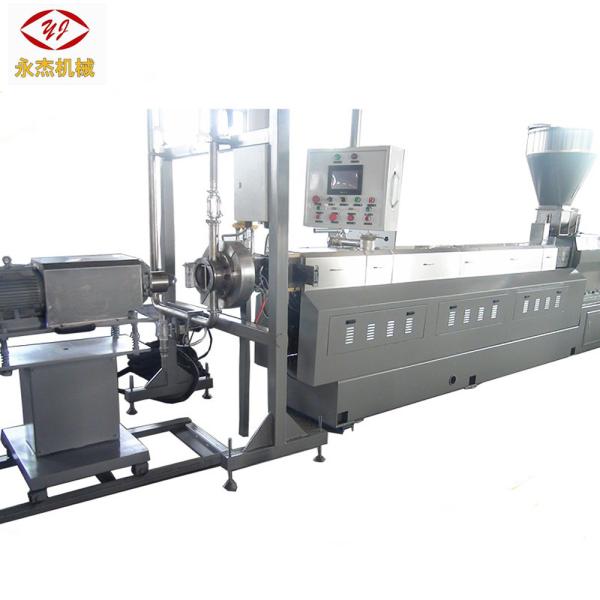

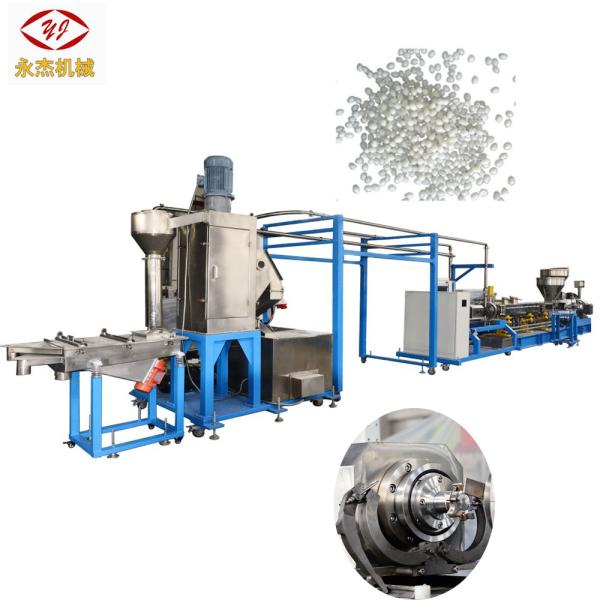

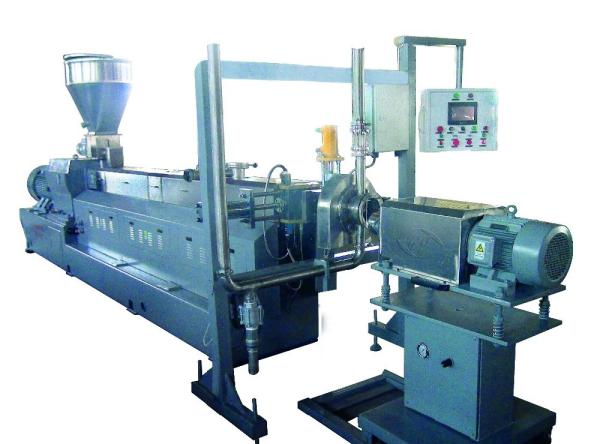

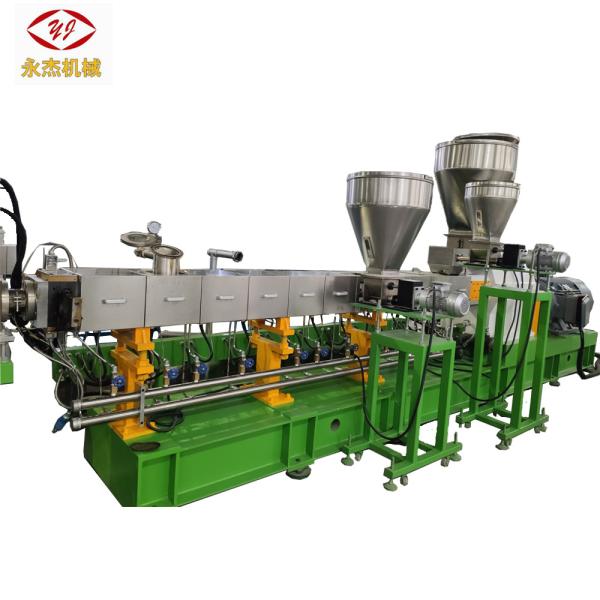

CE mark twin screw extruder plastic granules underwater pelletizing system

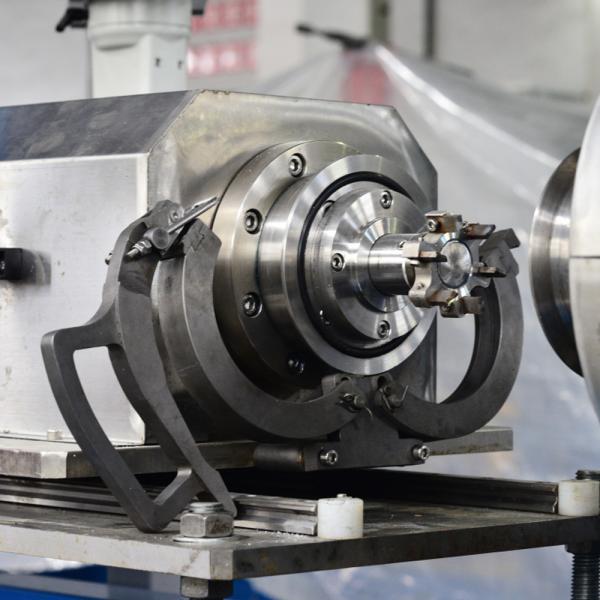

Underwater pelletizing machine can be used to the processing and application of the vast majority high polymer material, especially the special material the other cutting system is not available. such as: TPU, TPV and so on. The main part usually include :driving valve,screen changer, underwater pelletizer, centrifugal dehydrator ,vibrating sieve ,product container and so on.

Model Diameter(mm) L/D RPM ( r/min) Power (Kw) Torque(N.m) T/N Capacity (Kg/h)
SJSL-20 20 32-44 600 5.5 30 4.8 6.5-15
SJSL-36 36 32-48 600 15 115 4.2 30-75
SJSL-51A 51 32-52 500 45 405 5.1 100-200
SJSL-51B 51 32-52 600 55 415 5.2 150-25
SJSL-63A 63 32-62 400 55 620 4.4 160-250
500 75 675 4.8 200-300

SJSL-63B

 63 32-64 600 90 675 4.8 225-375
800 110 620 4.4 300-500
SJSL-75A 72 32-64 400 90 1015 4.7 225-350
500 110 1005 4.6 300-550
SJSL-75B 72 32-64 600 132 990 4.6 400-650
800 160 900 4.2 480-800
SJSL-92A 92 32-64 400 250 2815 5.9 650-1050
500 2250 4.7 750-1250
SJSL-92B 92 32-64 600 280 2365 5.0 900-1500
800 2250 4.7 1200-2000
SJSL-135A 135 32-48 400 315 6190 4.6 1500-2500
SJSL-135B 135 32-48 500 400 6750 5.1 200-3500
CE Mark Twin Screw Extruder Plastic Granules Underwater Pelletizing System

CE Mark Twin Screw Extruder Plastic Granules Underwater Pelletizing System

CE Mark Twin Screw Extruder Plastic Granules Underwater Pelletizing System

Application for underwater pelletizing:

1. Thermoplastic elastomer:

PP+SBS=TPR, PP+SEBS=TPE, PP+EPDM=TPV, TPU, EVA

Centrifugal dehydrator

100kg 3kw 300kg 4kw;

500kg 5.5kw; 800kg 7.5kw; 1000kg 11kw

CE Mark Twin Screw Extruder Plastic Granules Underwater Pelletizing System

Vibrating sieve

 CE Mark Twin Screw Extruder Plastic Granules Underwater Pelletizing System

Bin

CE Mark Twin Screw Extruder Plastic Granules Underwater Pelletizing System

CE Mark Twin Screw Extruder Plastic Granules Underwater Pelletizing SystemCE Mark Twin Screw Extruder Plastic Granules Underwater Pelletizing SystemCE Mark Twin Screw Extruder Plastic Granules Underwater Pelletizing System

CE Mark Twin Screw Extruder Plastic Granules Underwater Pelletizing System
CE Mark Twin Screw Extruder Plastic Granules Underwater Pelletizing SystemCE Mark Twin Screw Extruder Plastic Granules Underwater Pelletizing System

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. how long is the warranty?

We can offer one-year warranty for the whole machine.
