Specifications
plastic processed :
PE/PP, EVA, TPR/TPE/TPU/TPV
output (kg/h) :
200 - 300 kg/h
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Gearbox, motor
Place of Origin :
Jiangsu, China
Brand Name :
YongJie
screw design :
Double
voltage :
380v50hz
dimension(l*w*h) :
MODEL
power (kw) :
90/110
warranty :
1 Year
twin screw type :
Co-rotating Parallel Twin-screw
Screw L/D Ratio :
48:1
screw speed (rpm) :
50 - 600 rpm
Cutting :
Underwater granulator
Name :
YongJie
Color :
any color as your require
Diameter(mm) :
62.4
L/D :
56
RPM ( r/min) :
600
Torque(N.m) :
1015/1005/990/900
T/N :
4.7/4.6/4.2
Power :
90/110/132/160kw
Marketing Type :
New Product 2020
Screw diameter (mm) :
75
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Egypt, Turkey, United Kingdom, United States, Italy, Mexico, Thailand, Malaysia, Argentina, South Korea, Kazakhstan
Certification :
CE ISO9001
Condition :
New
Warranty of core components :
1 Year
Type :
Granulating Production Line
Showroom Location :
None
Applicable Industries :
Manufacturing Plant
Weight :
1t-10t
Description

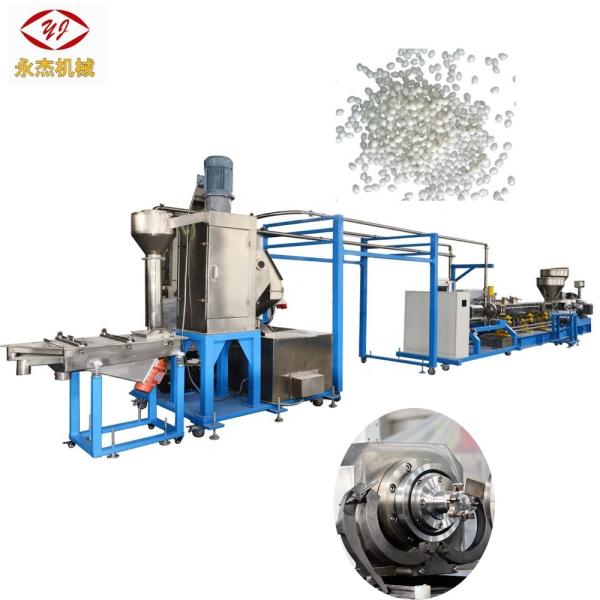

Euro-quality twin screw extruder plastic machinery underwater plastic granulator

Underwater plastic granulator pelletizing machine can be used to the processing and application of the vast majority high polymer material, especially the special material the other cutting system is not available. such as: TPU, TPV and so on. The main part usually include :driving valve,screen changer, underwater pelletizer, centrifugal dehydrator ,vibrating sieve ,product container and so on.

Model Diameter(mm) L/D RPM ( r/min) Power (Kw) Torque(N.m) T/N Capacity (Kg/h)
SJSL-20 20 32-44 600 5.5 30 4.8 6.5-15
SJSL-36 36 32-48 600 15 115 4.2 30-75
SJSL-51A 51 32-52 500 45 405 5.1 100-200
SJSL-51B 51 32-52 600 55 415 5.2 150-25
SJSL-63A 63 32-62 400 55 620 4.4 160-250
500 75 675 4.8 200-300

SJSL-63B

 63 32-64 600 90 675 4.8 225-375
800 110 620 4.4 300-500
SJSL-75A 72 32-64 400 90 1015 4.7 225-350
500 110 1005 4.6 300-550
SJSL-75B 72 32-64 600 132 990 4.6 400-650
800 160 900 4.2 480-800
SJSL-92A 92 32-64 400 250 2815 5.9 650-1050
500 2250 4.7 750-1250
SJSL-92B 92 32-64 600 280 2365 5.0 900-1500
800 2250 4.7 1200-2000
SJSL-135A 135 32-48 400 315 6190 4.6 1500-2500
SJSL-135B 135 32-48 500 400 6750 5.1 200-3500
Euro-quality Twin Screw Extruder Plastic Machinery Underwater Plastic Granulator

Euro-quality Twin Screw Extruder Plastic Machinery Underwater Plastic Granulator

Euro-quality Twin Screw Extruder Plastic Machinery Underwater Plastic Granulator

Application for underwater plastic granulator:

1. Thermoplastic elastomer:

PP+SBS=TPR, PP+SEBS=TPE, PP+EPDM=TPV, TPU, EVA

Centrifugal dehydrator

100kg 3kw 300kg 4kw;

500kg 5.5kw; 800kg 7.5kw; 1000kg 11kw

Euro-quality Twin Screw Extruder Plastic Machinery Underwater Plastic Granulator

Vibrating sieve

 Euro-quality Twin Screw Extruder Plastic Machinery Underwater Plastic Granulator

Bin

Euro-quality Twin Screw Extruder Plastic Machinery Underwater Plastic Granulator

Euro-quality Twin Screw Extruder Plastic Machinery Underwater Plastic GranulatorEuro-quality Twin Screw Extruder Plastic Machinery Underwater Plastic GranulatorEuro-quality Twin Screw Extruder Plastic Machinery Underwater Plastic Granulator

Euro-quality Twin Screw Extruder Plastic Machinery Underwater Plastic Granulator
Euro-quality Twin Screw Extruder Plastic Machinery Underwater Plastic GranulatorEuro-quality Twin Screw Extruder Plastic Machinery Underwater Plastic Granulator

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages of underwater plastic granulator?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. how long is the warranty?

We can offer one-year warranty for the whole machine.
