Specifications
加工塑料类型 :
HDPE, HDPE/PP, PE/PP, LLDPE, PP, 聚乙烯对苯二甲酸脂(塑料)
产能(kg/h) :
900 - 2000 kg/h
视频出厂验货 :
可提供
机械测试报告 :
可提供
核心组件 :
齿轮箱, 电机
原产地 :
Jiangsu, China
品牌 :
YongJie
螺杆设计 :
双排
电压 :
380V 50HZ
尺寸(长×宽×高) :
型号
功率 (kW) :
315
保修期 :
1年
双螺杆类型 :
同向平行双螺杆, 同向平行双螺杆
螺杆长径比 :
44:1, 44:1
螺杆转速 (rpm) :
50 - 600 rpm
关键词 :
挤出机塑料回收:
姓名 :
永洁
保修 :
1年
颜色 :
任何颜色作为您的要求
L/D :
32-64
RPM ( r/min) :
400-800r /min
扭矩 (N.m) :
2250-2815N.m
容量 (Kg/h) :
650-2000kg/h
T/N :
4.7-5.9
认证 :
CE ISO9001
状态 :
New
核心组件质保期 :
1年
机器类型 :
造粒生产线
螺杆直径(mm) :
91, 91
展示厅地点(在海外哪些国家有样品间) :
None
适用行业 :
生产车间
重量 :
9000
Description

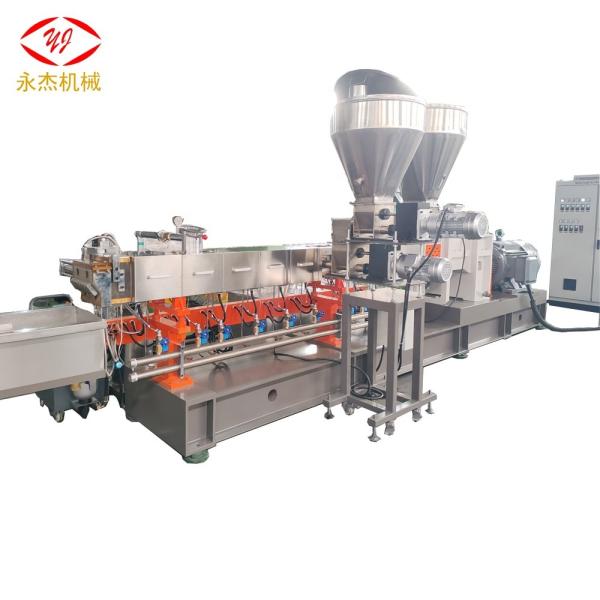

Double screw extruder plastic bottle recycling machine extruder machine plastic recycling pelletizing machine

SJSL-20 20 32-44 600 5.5 30 4.8 6.5-15
SJSL-36 36 32-48 600 15 115 4.2 30-75
SJSL-51A 51 32-52 500 45 405 5.1 100-200
SJSL-51B 51 32-52 600 55 415 5.2 150-250
SJSL-63A 63 32-62 400 55 620 4.4 160-250
500 75 675 4.8 200-300
SJSL-63B 63 32-64 600 90 675 4.8 225-375
800 110 620 4.4 300-500
SJSL-75A 72 32-64 400 90 1015 4.7 225-350
500 110 1005 4.6 300-550
SJSL-75B 72 32-64 600 132 990 4.6 400-650
800 160 900 4.2 480-800
SJSL-92A 92 32-64 400 250 2815 5.9 650-1050
500 2250 4.7 750-1250
SJSL-92B 92 32-64 600 280 2365 5.0 900-1500
800 2250 4.7 1200-2000
SJSL-135A 135 32-48 400 315 6190 4.6 1500-2500
SJSL-135B 135 32-48 500 400 6750 5.1 200-3500

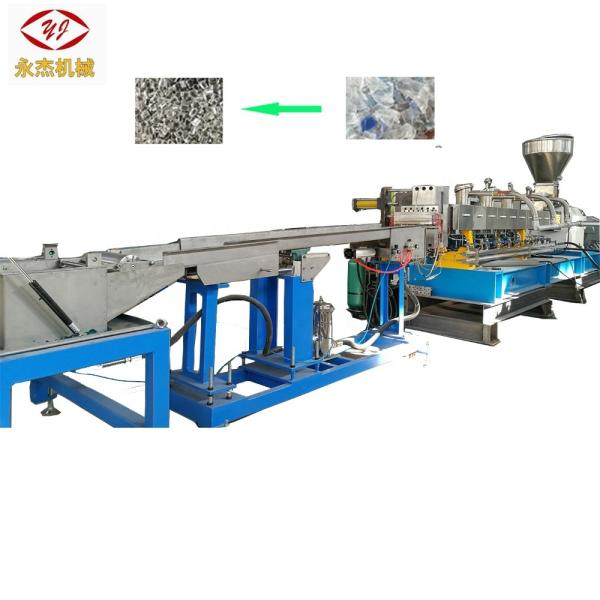

Application for water-cooling strand

1. Fiber reinforcement and modification: filling glass fiber or carbon fiber for: PP, PA, PBT,

ABS, AS, POM, PPS, PET, etc.

2. Ploymer compounding: PC+ABS, PA+ABS,CPE+ABS,PP+EPDM,PA+EPDM,

PA+SBS, etc.

3. Filling modified: Filling CaCO3,Talc,Titanium, carbon black for PVC PE,PP, EVA etc.

4. Cable material: cable sheath, cable insulation compounds, crosslinking compounds,

optical fiber protection compounds, cable coating material, thermal contraction material,

etc.

5. Dedicated material: PPR pipe compounds, PE crosslinking tube material, cigarettes

filter tip material, acetate fiber material, etc.

6. High Concentration Color Masterbatch: PE,ABS,PS,EVA,PET,PP + color +

additives, etc.

7. Flaming Retardants: PVC, PP, PA, ABS, EVA, PBT + flame retardants, etc.

8. Special Functional Masterbatch: double protection masterbatch, antistatic masterbatch,

anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material, etc.

9. The degradable masterbatch: PP, PE, PS + starch+ additives, etc.

Double Screw Extruder Plastic Bottle Recycling Machine Extruder Machine Plastic Recycling Pelletizing MachineDouble Screw Extruder Plastic Bottle Recycling Machine Extruder Machine Plastic Recycling Pelletizing Machine

Double Screw Extruder Plastic Bottle Recycling Machine Extruder Machine Plastic Recycling Pelletizing MachineDouble Screw Extruder Plastic Bottle Recycling Machine Extruder Machine Plastic Recycling Pelletizing MachineDouble Screw Extruder Plastic Bottle Recycling Machine Extruder Machine Plastic Recycling Pelletizing MachineDouble Screw Extruder Plastic Bottle Recycling Machine Extruder Machine Plastic Recycling Pelletizing MachineDouble Screw Extruder Plastic Bottle Recycling Machine Extruder Machine Plastic Recycling Pelletizing MachineDouble Screw Extruder Plastic Bottle Recycling Machine Extruder Machine Plastic Recycling Pelletizing Machine

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. How long is the warranty?

We can offer one-year warranty for the whole machine.
