Promotion Plastic Pellet Making Machine Twin Screw Extruder
Promotion Plastic Pellet Making Machine Twin Screw Extruder
Promotion Plastic Pellet Making Machine Twin Screw Extruder
Promotion Plastic Pellet Making Machine Twin Screw Extruder
Promotion Plastic Pellet Making Machine Twin Screw Extruder
Promotion Plastic Pellet Making Machine Twin Screw Extruder
Promotion Plastic Pellet Making Machine Twin Screw Extruder
Promotion Plastic Pellet Making Machine Twin Screw Extruder
Promotion Plastic Pellet Making Machine Twin Screw Extruder
Promotion Plastic Pellet Making Machine Twin Screw Extruder
Promotion Plastic Pellet Making Machine Twin Screw Extruder
Promotion Plastic Pellet Making Machine Twin Screw Extruder
Promotion Plastic Pellet Making Machine Twin Screw Extruder
Promotion Plastic Pellet Making Machine Twin Screw Extruder
Specifications
plastic processed :
HDPE, HDPE/PP, PA, PE/PP, Lldpe, ABS/PP, PP, MLLDPE, LDPE, PC
output (kg/h) :
300 - 500 kg/h
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Gearbox
Place of Origin :
Jiangsu, China
Brand Name :
YongJie
screw design :
Double-screw
voltage :
380V 50HZ
dimension(l*w*h) :
MODEL
power (kw) :
110
warranty :
1 Year
Color :
any color as your require
RPM( r/min) :
400/500/600/800
Torque(N.m) :
1015/1005/990/900
T/N :
4.7/4.6/4.2
Inverter :
ABB Brand
Motor :
Siemens Beide
Vacuum degassing :
included
Automatic screen changer :
included
Solenoid valve :
Danfoss
Water tank :
4000mm
Marketing Type :
Hot Product 2019
Condition :
New
Warranty of core components :
1 Year
Type :
Recycling Granulator
Showroom Location :
None
Applicable Industries :
Manufacturing Plant
Weight :
8000
Description

Promotion plastic pellet making machine twin screw extruder

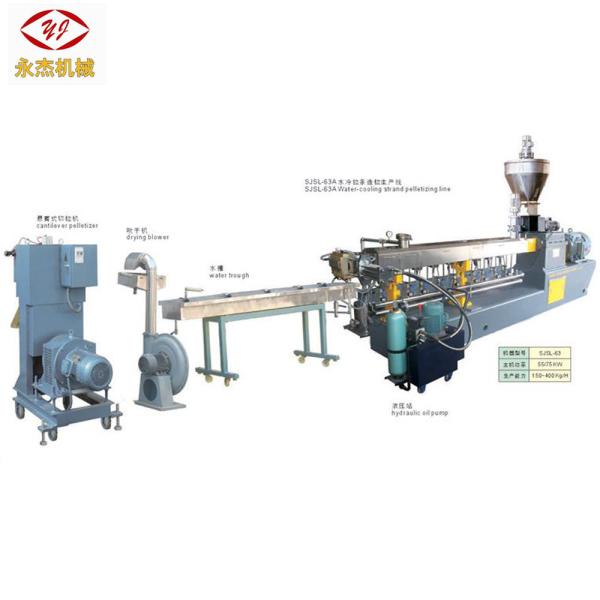

Brief introduction: plastic pellet making machine twin screw extruder water strand pelletizing line is extrusion strand pelletizing, consisting of parallel twin-screw extruder and corresponding auxiliary granulation.

The gearbox is high torque design, implement smooth operation, low noise.

Apply to: Masterbatch and regenerationof PP,PE,PET,PS,ABS,PA,PVC,PC,POM,EVA,PMMA

Model Diameter(mm) L/D RPM ( r/min) Power (Kw) Torque(N.m) T/N Capacity (Kg/h)
SJSL-20 20 32-44 600 5.5 30 4.8 6.5-15
SJSL-36 36 32-48 600 15 115 4.2 30-75
SJSL-51A 51 32-52 500 45 405 5.1 100-200
SJSL-51B 51 32-52 600 55 415 5.2 150-25
SJSL-63A 63 32-62 400 55 620 4.4 160-250
500 75 675 4.8 200-300

SJSL-63B

 63 32-64 600 90 675 4.8 225-375
800 110 620 4.4 300-500
SJSL-75A 72 32-64 400 90 1015 4.7 225-350
500 110 1005 4.6 300-550
SJSL-75B 72 32-64 600 132 990 4.6 400-650
800 160 900 4.2 480-800
SJSL-92A 92 32-64 400 250 2815 5.9 650-1050
500 2250 4.7 750-1250
SJSL-92B 92 32-64 600 280 2365 5.0 900-1500
800 2250 4.7 1200-2000
SJSL-135A 135 32-48 400 315 6190 4.6 1500-2500
SJSL-135B 135 32-48 500 400 6750 5.1 200-3500

Application for plastic pellet making machine twin screw extruder:

1. Master batch and color master batch:

PP/PE/ABS+Caco3/Sio2(silicon dioxide)/talc(chalk)/carbon black

2. PP/PA/PA3/PA66/PA10/PA1012/ABS/PBT/PET/POM+glass fiber/carbon Fiber/iron fiber

3. PBT, PET recycling

4. EVA

Promotion Plastic Pellet Making Machine Twin Screw Extruder

Promotion Plastic Pellet Making Machine Twin Screw Extruder

Promotion Plastic Pellet Making Machine Twin Screw Extruder

Auxiliary

Water trough

SJSL20:1-2m

SJSL-36/51:3m

SJSL-63A/75A:4m

SJSL-75B/95:5/6m

Promotion Plastic Pellet Making Machine Twin Screw Extruder

Blowing dryer

SJSL-20: 1.5kw

SJSL-36/51: 1.5kw

SJSL-75A/63A:2.2kw

SJSL-75B/95:3kw,4kw

Promotion Plastic Pellet Making Machine Twin Screw Extruder

Pelletizer

SJSL-20: 50kg/h 0.75kw

SJSL-36:100kg/h 2.2kw

SJSL-51/63A: 300kg/h 4kw

SJSL-63B/75A: 500kg/h 5.5kw

SJSL-75B/95:1000kg/h

Promotion Plastic Pellet Making Machine Twin Screw Extruder

Other product

Water-ring Hot-face pelletizing line Pelletizing in the water line

Promotion Plastic Pellet Making Machine Twin Screw ExtruderPromotion Plastic Pellet Making Machine Twin Screw Extruder

Air-cooling hot-face pelletizing line Air-cooling strand pelletizing line

Promotion Plastic Pellet Making Machine Twin Screw ExtruderPromotion Plastic Pellet Making Machine Twin Screw Extruder

Promotion Plastic Pellet Making Machine Twin Screw Extruder

Promotion Plastic Pellet Making Machine Twin Screw ExtruderPromotion Plastic Pellet Making Machine Twin Screw ExtruderPromotion Plastic Pellet Making Machine Twin Screw Extruder

Promotion Plastic Pellet Making Machine Twin Screw Extruder

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. how long is the warranty?

We can offer one-year warranty for the whole machine.
