Specifications
plastic processed :
PP/PVC/WPC/PE/ABS/XPS/Polystyrene
application :
Granules
Screw Design :
Double-screw
twin screw type :
Co-rotating Parallel Twin-screw
Screw Material :
W6Mo5Cr4V2
screw diameter (mm) :
72 mm
Screw L/D Ratio :
40:1
Screw Speed (rpm) :
600 rpm
Place of Origin :
Jiangsu, China
Brand Name :
YongJie
voltage :
380V 50HZ
dimension(l*w*h) :
Model
power (kw) :
132
warranty :
1 Year
key selling points :
Easy to Operate
video outgoing-inspection :
Provided
core components :
motor, PLC, Gearbox
machinery test report :
Provided
Brand :
Yongjie
Color :
any color as your require
Motor brand :
SIENEMS BEIDE
Inverter brand :
ABB
RPM( r/min) :
600
Torque(N.m) :
995
torque level :
4.6
Electric control model :
PID/PLC
Automatic Grade :
High Automation
Certification :
CE ISO9001
Marketing Type :
Hot Product 2019
Condition :
New
Showroom Location :
None
Applicable Industries :
Manufacturing Plant
Warranty of core components :
1 Year
Weight :
1 KG
Description

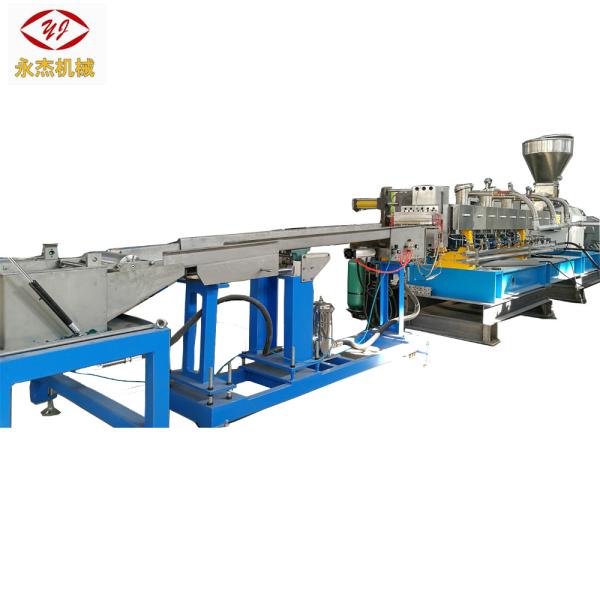

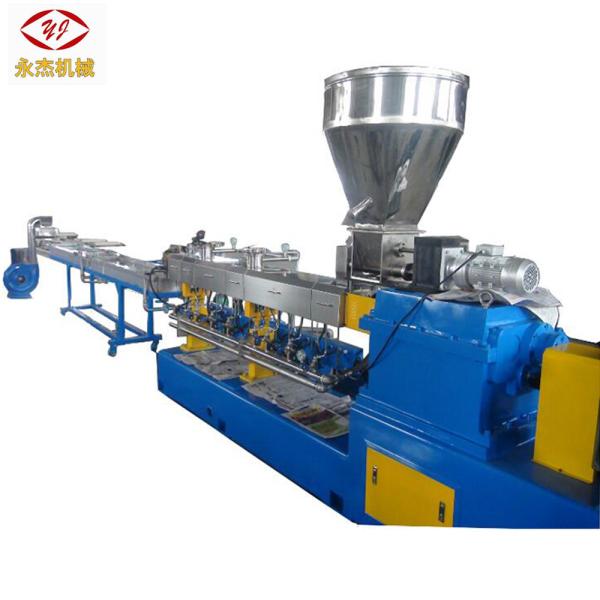

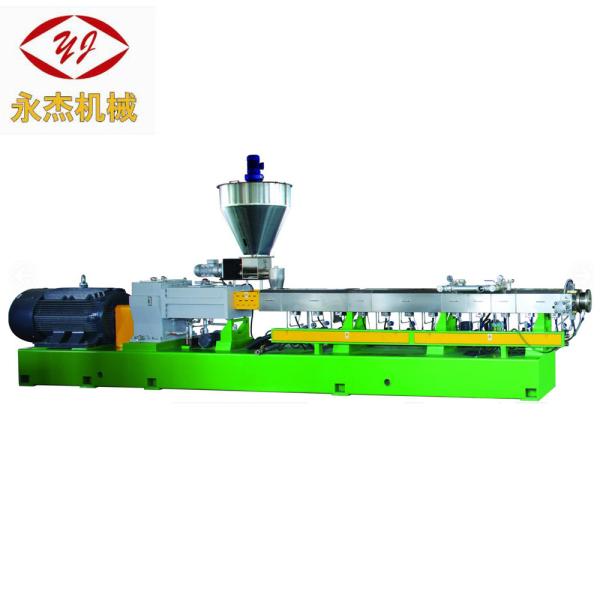

Plastic granules extruder grain making machine sale

The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

Model Diameter(mm) L/D RPM ( r/min) Power (Kw) Torque(N.m) T/N Capacity (Kg/h)
SJSL-20 20 32-44 600 5.5 30 4.8 6.5-15
SJSL-36 36 32-48 600 15 115 4.2 30-75
SJSL-51A 51 32-52 500 45 405 5.1 100-200
SJSL-51B 51 32-52 600 55 415 5.2 150-25

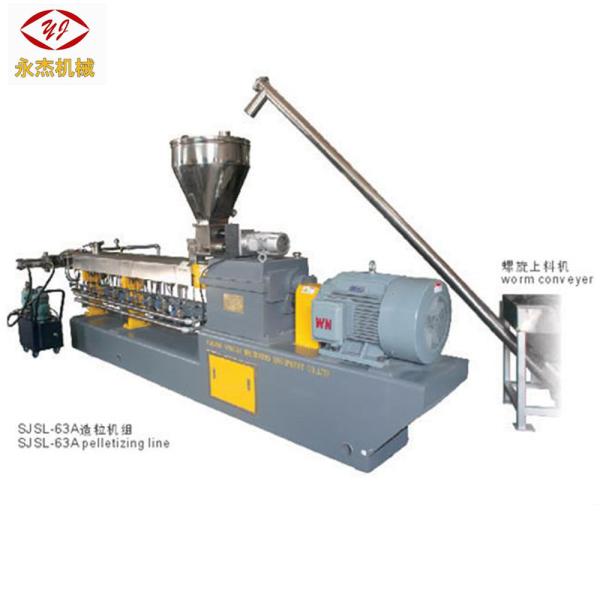

SJSL-63A 63 32-62 400 55 620 4.4 160-250
500 75 675 4.8 200-300

SJSL-63B

63 32-64 600 90 675 4.8 225-375
800 110 620 4.4 300-500
SJSL-75A 72 32-64 400 90 1015 4.7 225-350
500 110 1005 4.6 300-550
SJSL-75B 72 32-64 600 132 990 4.6 400-650
800 160 900 4.2 480-800
SJSL-92A 92 32-64 400 250 2815 5.9 650-1050
500 2250 4.7 750-1250
SJSL-92B 92 32-64 600 280 2365 5.0 900-1500
800 2250 4.7 1200-2000
SJSL-135A 135 32-48 400 315 6190 4.6 1500-2500
SJSL-135B 135 32-48 500 400 6750 5.1 200-3500
Plastic Granules Extruder Grain Making Machine Sale
Plastic Granules Extruder Grain Making Machine Sale

Plastic Granules Extruder Grain Making Machine Sale

Auxiliary

Water trough

SJSL20:1-2m

SJSL-36/51:3m

SJSL-63A/75A:4m

SJSL-75B/95:5/6m

Plastic Granules Extruder Grain Making Machine Sale

Blowing dryer

SJSL-20: 1.5kw

SJSL-36/51: 1.5kw

SJSL-75A/63A:2.2kw

SJSL-75B/95:3kw,4kw

Plastic Granules Extruder Grain Making Machine Sale

Pelletizer

SJSL-20: 50kg/h 0.75kw

SJSL-36:100kg/h 2.2kw

SJSL-51/63A: 300kg/h 4kw

SJSL-63B/75A: 500kg/h 5.5kw

SJSL-75B/95:1000kg/h

Plastic Granules Extruder Grain Making Machine Sale

Application for water-cooling strand

1. Fiber reinforcement and modification: filling glass fiber or carbon fiber for: PP, PA, PBT,

ABS, AS, POM, PPS, PET, etc.

2. Ploymer compounding: PC+ABS, PA+ABS,CPE+ABS,PP+EPDM,PA+EPDM,

PA+SBS, etc.

3. Filling modified: Filling CaCO3,Talc,Titanium, carbon black for PVC PE,PP, EVA etc.

4. Cable material: cable sheath, cable insulation compounds, crosslinking compounds,

optical fiber protection compounds, cable coating material, thermal contraction material,

etc.

5. Dedicated material: PPR pipe compounds, PE crosslinking tube material, cigarettes

filter tip material, acetate fiber material, etc.

6. High Concentration Color Masterbatch: PE,ABS,PS,EVA,PET,PP + color +

additives, etc.

7. Flaming Retardants: PVC, PP, PA, ABS, EVA, PBT + flame retardants, etc.

8. Special Functional Masterbatch: double protection masterbatch, antistatic masterbatch,

anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material, etc.

9. The degradable masterbatch: PP, PE, PS + starch+ additives, etc.

Other product

Water-ring Hot-face pelletizing line

Plastic Granules Extruder Grain Making Machine Sale

Pelletizing in the water line

Plastic Granules Extruder Grain Making Machine Sale

Air-cooling hot-face pelletizing line

Plastic Granules Extruder Grain Making Machine Sale

Air-cooling strand pelletizing line

Plastic Granules Extruder Grain Making Machine Sale

Plastic Granules Extruder Grain Making Machine Sale

Plastic Granules Extruder Grain Making Machine Sale

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. how long is the warranty?

We can offer one-year warranty for the whole machine.
