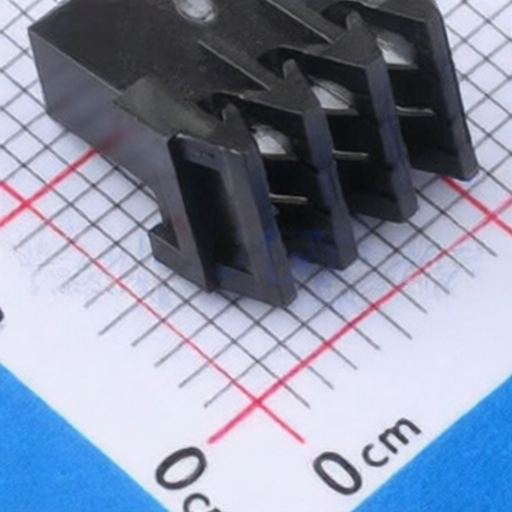

NRD Connector: Disconnectable Insulation Displacement Connector

The NRD connector is a 2.5mm pitch insulation displacement connector, an evolution of the NR connector designed for printed circuit boards. It facilitates daisy chaining, simplifying connection systems in electronic equipment by allowing multiple signals to be bussed across different PCBs. The connector features a reliable insulation displacement construction, utilizing contacts identical to the proven NR connector. For enhanced durability, two strain relief sections are integrated into the housing to absorb vibration, bending forces, and other external stresses, protecting the insulation displacement section. The header is designed for interchangeability with XH (crimp style), NR (IDC style), and JQ (board-to-board style) connectors.

Product Attributes

  • Brand: JST
  • Type: Disconnectable Insulation Displacement Connector
  • Pitch: 2.5mm
  • Certifications: E60389 (Standards Recognized), LR20812 (Certified)
  • RoHS Compliance: Compliant
  • Available Forms: Emboss Tape, Radial Tape

Technical Specifications

No. of circuitsModel No. (AWG #28)Model No. (AWG #26)Model No. (AWG #24)Dimension A (mm)Dimension B (mm)Q'ty / boxMaterial and Finish
202NR-D8M-P02NR-D6S-P02NR-D4K-P2.57.51,000Contact: Phosphor bronze, tin-plated (reow treatment)
Housing: PA 66, UL94V-0
303NR-D8M-P03NR-D6S-P03NR-D4K-P5.010.01,000Contact: Phosphor bronze, tin-plated (reow treatment)
Housing: PA 66, UL94V-0
404NR-D8M-P04NR-D6S-P04NR-D4K-P7.512.51,000Contact: Phosphor bronze, tin-plated (reow treatment)
Housing: PA 66, UL94V-0
505NR-D8M-P05NR-D6S-P05NR-D4K-P10.015.0500Contact: Phosphor bronze, tin-plated (reow treatment)
Housing: PA 66, UL94V-0
606NR-D8M-P06NR-D6S-P06NR-D4K-P12.517.5500Contact: Phosphor bronze, tin-plated (reow treatment)
Housing: PA 66, UL94V-0
707NR-D8M-P07NR-D6S-P07NR-D4K-P15.020.0500Contact: Phosphor bronze, tin-plated (reow treatment)
Housing: PA 66, UL94V-0
808NR-D8M-P08NR-D6S-P08NR-D4K-P17.522.5500Contact: Phosphor bronze, tin-plated (reow treatment)
Housing: PA 66, UL94V-0
909NR-D8M-P09NR-D6S-P09NR-D4K-P20.025.0250Contact: Phosphor bronze, tin-plated (reow treatment)
Housing: PA 66, UL94V-0
1010NR-D8M-P10NR-D6S-P10NR-D4K-P22.527.5250Contact: Phosphor bronze, tin-plated (reow treatment)
Housing: PA 66, UL94V-0
1212NR-D8M-P12NR-D6S-P12NR-D4K-P27.532.5250Contact: Phosphor bronze, tin-plated (reow treatment)
Housing: PA 66, UL94V-0
1414NR-D8M-P14NR-D6S-P14NR-D4K-P32.537.5200Contact: Phosphor bronze, tin-plated (reow treatment)
Housing: PA 66, UL94V-0
1616NR-D8M-P16NR-D6S-P16NR-D4K-P37.542.5200Contact: Phosphor bronze, tin-plated (reow treatment)
Housing: PA 66, UL94V-0

General Specifications

SpecificationValue
Current rating2A AC, DC (AWG #24)
Voltage rating250V AC, DC
Temperature range-25 to +85 (including temperature rise in applying electrical current)
Contact resistanceInitial value/10m max. After environmental testing/20m max.
Insulation resistance1,000M min.
Withstanding voltage1,500V AC/minute
Applicable wireUL1007 (AWG #28, #26, #24) - Conductor/7 strands, tin-coated; Insulation O.D./1.1 to 1.5mm
Applicable PC board thickness1.6mm

2211282200_JST-03NR-D4K-P_C567270.pdf
