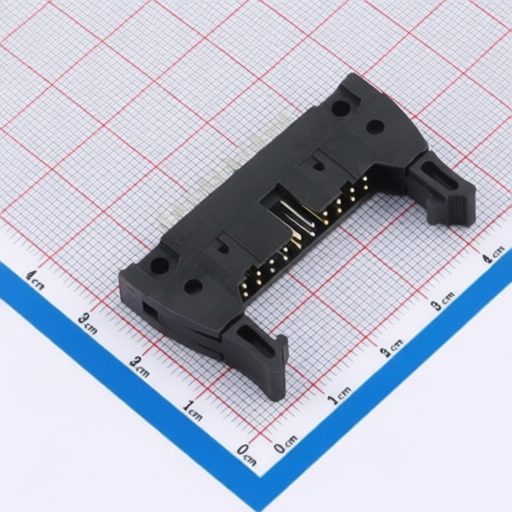

Wire To Board Connector DLL XG-20A Featuring 2.54 Millimeter Pitch And Multiple Circuit Configurations
Wire To Board Connector DLL XG-20A Featuring 2.54 Millimeter Pitch And Multiple Circuit Configurations
Specifications
Row Spacing :
2.54mm
Operating Temperature :
-40℃~+105℃
Color :
黑色
Current Rating :
3A
Contact Plating :
锡
Contact Material :
黄铜
Number of Positions or Pins :
2x10P
Voltage Rating (Max) :
250V
Number of PINs Per Row :
10
Number of Rows :
2
Pitch :
2.54mm
Connector Type :
牛角扣
Mounting Type :
直插
Description :
2.54mm -40℃~+105℃ 3A Tin Brass 2x10P 250V 10 2 2.54mm IDC Header Through Hole Through Hole,P=2.54mm Free Hanging, Panel Mount RoHS
Mfr. Part # :
XG-20A
Package :
Through Hole,P=2.54mm
Model Number :
XG-20A
Description

Product Overview

The ZHE JIANG DELI CONNECTORS CO., LTD. 2.54 mm Pitch Wire To Board Wafer series offers reliable connectivity solutions designed for various electronic applications. These connectors are constructed with PBT UL94V-0 housing and Brass/Tin-Plated or Gold-Plated pins, ensuring durability and performance. They are suitable for wire-to-board connections and are available in multiple configurations to meet specific circuit requirements.

Product Attributes

  • Brand: ZHE JIANG DELI CONNECTORS CO., LTD.
  • Origin: China
  • Housing Material: PBT UL94V-0
  • Pin Material: Brass / Tin-Plated or Gold-Plated
  • Pitch: 2.54 mm
  • Certifications: RoHS criteria (for XG-Y series)

Technical Specifications

Model Series Product Name Circuits Rated Voltage Rated Current Contact Resistance Insulation Resistance Withstand Voltage Ambient Temperature Guide Groove
XG-A DL25413(XG)-A 4-64 Pins 250V AC 3A AC/DC 20 m 1000 m 500V AC/minute -40105 1 Guide groove (XG-A), 2 Guide grooves (XG-A-L)
XG-AS DL25413(XG)-AS 4-64 Pins 250V AC 3A AC/DC 20 m 1000 m 500V AC/minute -40105 1 Guide groove (XG-A), 2 Guide grooves (XG-A-L)
XG-AW DL25413(XG)-AW 4-64 Pins 250V AC 3A AC/DC 20 m 1000 m 500V AC/minute -40105 1 Guide groove (XG-AW), 2 Guide grooves (XG-AW-L)
XG-A-GOLD DL25413(XG)-A-GOLD 4-64 Pins 250V AC 3A AC/DC 20 m 1000 m 500V AC/minute -40105 1 Guide groove (XG-A), 2 Guide grooves (XG-A-L)
XG-AS-GOLD DL25413(XG)-AS-GOLD 4-64 Pins 250V AC 3A AC/DC 20 m 1000 m 500V AC/minute -40105 1 Guide groove (XG-A), 2 Guide grooves (XG-A-L)
XG-AW-GOLD DL25413(XG)-AW-GOLD 4-64 Pins 250V AC 3A AC/DC 20 m 1000 m 500V AC/minute -40105 1 Guide groove (XG-AW), 2 Guide grooves (XG-AW-L)
XG-Y DL25413(XG)-Y 4-64 Pins N/A N/A N/A N/A N/A N/A 1 Guide post (XG-Y)
DL25413(XG)-T Crimp Terminal N/A N/A Accepts AWG #2822 Wire Range N/A N/A N/A N/A Used in DL25413-Y Series Housing
DL25413(XG)-T-GOLD Crimp Terminal (Gold Plated) N/A N/A Accepts AWG #2822 Wire Range N/A N/A N/A N/A Used in DL25413-Y Series Housing

2504101957_DLL-XG-20A_C46638787.pdf
