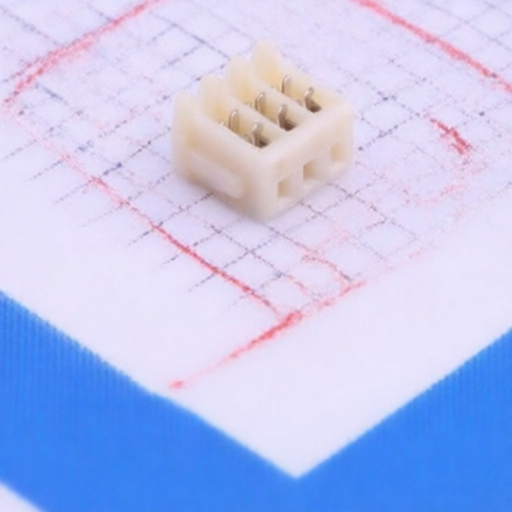

Versatile JST 03SR-3S connector designed for disconnectable wire termination in electronic assemblies
Versatile JST 03SR-3S connector designed for disconnectable wire termination in electronic assemblies
Specifications
Row Spacing :
-
Contact Plating :
锡
Contact Material :
磷青铜
Number of Rows :
1
Connector Type :
IDC连接器
Pitch :
1mm
Mounting Type :
-
Description :
Connector IDC Connectorector 1mm
Mfr. Part # :
03SR-3S
Package :
P=1mm
Model Number :
03SR-3S
Description

SR/SZ CONNECTOR 1.0mm pitch/Disconnectable Insulation Displacement Connectors

The SR/SZ Connector series offers compact insulation displacement connectors with a 1.0mm pitch, designed for efficient and reliable connections. These connectors feature a twin U-slot insulation displacement section and a 3-point grip construction, ensuring secure wire termination. The header is specifically designed for vacuum pick and place robotics, facilitating automated assembly processes. Available in through-hole and SMT types, these connectors are suitable for various PCB applications, including top entry and side entry configurations.

Product Attributes

  • Brand: JST
  • Material (Contact): Phosphor bronze, tin-plated (reflow treatment) / Brass, tin-plated (reflow treatment) / Copper alloy, copper-undercoated, tin-plated (reflow treatment)
  • Material (Housing): PA, UL94V-0, natural / Glass-filled PBT, UL94V-0, natural (white)
  • Color: Natural (white)
  • Certifications: UL Recognized (E60389), LR Certified (LR20812)
  • Compliance: RoHS

Technical Specifications

Model No.CircuitsTypeQ'ty / boxDimensions (mm) (L x W)Material (Contact)Material (Housing)
B03B-SZ3Through-hole9,4055.2 x 3.0Phosphor bronze, tin-platedPA, UL94V-0, natural
B04B-SZ4Through-hole7,9206.2 x 4.0Phosphor bronze, tin-platedPA, UL94V-0, natural
B05B-SZ5Through-hole6,7657.2 x 5.0Phosphor bronze, tin-platedPA, UL94V-0, natural
B06B-SZ6Through-hole5,9408.2 x 6.0Phosphor bronze, tin-platedPA, UL94V-0, natural
B07B-SZ7Through-hole5,2809.2 x 7.0Phosphor bronze, tin-platedPA, UL94V-0, natural
B08B-SZ8Through-hole4,62010.2 x 8.0Phosphor bronze, tin-platedPA, UL94V-0, natural
B09B-SZ9Through-hole4,09511.2 x 9.0Phosphor bronze, tin-platedPA, UL94V-0, natural
B11B-SZ11Through-hole3,15013.2 x 11.0Phosphor bronze, tin-platedPA, UL94V-0, natural
B14B-SZ14Through-hole2,10016.2 x 14.0Phosphor bronze, tin-platedPA, UL94V-0, natural
S03B-SZ3SMT9,4055.2 x 3.0Brass, tin-platedGlass-filled PBT, UL94V-0, natural (white)
S04B-SZ4SMT7,9206.2 x 4.0Brass, tin-platedGlass-filled PBT, UL94V-0, natural (white)
S05B-SZ5SMT6,7657.2 x 5.0Brass, tin-platedGlass-filled PBT, UL94V-0, natural (white)
S06B-SZ6SMT5,9408.2 x 6.0Brass, tin-platedGlass-filled PBT, UL94V-0, natural (white)
S07B-SZ7SMT5,2809.2 x 7.0Brass, tin-platedGlass-filled PBT, UL94V-0, natural (white)
BM02B-SRSS-TB2Shrouded Header (Through-hole)3,0004.0 x 1.0Copper alloy, tin-platedPA, UL94V-0, natural
BM03B-SRSS-TB3Shrouded Header (Through-hole)3,0005.0 x 2.0Copper alloy, tin-platedPA, UL94V-0, natural
BM04B-SRSS-TB4Shrouded Header (Through-hole)3,0006.0 x 3.0Copper alloy, tin-platedPA, UL94V-0, natural
BM05B-SRSS-TB5Shrouded Header (Through-hole)3,0007.0 x 4.0Copper alloy, tin-platedPA, UL94V-0, natural
BM06B-SRSS-TB6Shrouded Header (Through-hole)3,0008.0 x 5.0Copper alloy, tin-platedPA, UL94V-0, natural
BM07B-SRSS-TB7Shrouded Header (Through-hole)3,0009.0 x 6.0Copper alloy, tin-platedPA, UL94V-0, natural
BM08B-SRSS-TB8Shrouded Header (Through-hole)3,00010.0 x 7.0Copper alloy, tin-platedPA, UL94V-0, natural
BM09B-SRSS-TB9Shrouded Header (Through-hole)3,00011.0 x 8.0Copper alloy, tin-platedPA, UL94V-0, natural
BM10B-SRSS-TB10Shrouded Header (Through-hole)3,00012.0 x 9.0Copper alloy, tin-platedPA, UL94V-0, natural
BM11B-SRSS-TB11Shrouded Header (Through-hole)3,00013.0 x 10.0Copper alloy, tin-platedPA, UL94V-0, natural
BM12B-SRSS-TB12Shrouded Header (Through-hole)3,00014.0 x 11.0Copper alloy, tin-platedPA, UL94V-0, natural
BM13B-SRSS-TB13Shrouded Header (Through-hole)3,00015.0 x 12.0Copper alloy, tin-platedPA, UL94V-0, natural
BM14B-SRSS-TB14Shrouded Header (Through-hole)1,50016.0 x 13.0Copper alloy, tin-platedPA, UL94V-0, natural
SM02B-SRSS-TB2Shrouded Header (SMT)2,0004.25 x 1.0Copper alloy, tin-platedPA, UL94V-0, natural
SM03B-SRSS-TB3Shrouded Header (SMT)2,0005.25 x 2.0Copper alloy, tin-platedPA, UL94V-0, natural
SM04B-SRSS-TB4Shrouded Header (SMT)2,0006.25 x 3.0Copper alloy, tin-platedPA, UL94V-0, natural
SM05B-SRSS-TB5Shrouded Header (SMT)2,0007.25 x 4.0Copper alloy, tin-platedPA, UL94V-0, natural
SM06B-SRSS-TB6Shrouded Header (SMT)2,0008.25 x 5.0Copper alloy, tin-platedPA, UL94V-0, natural
SM07B-SRSS-TB7Shrouded Header (SMT)2,0009.25 x 6.0Copper alloy, tin-platedPA, UL94V-0, natural
SM08B-SRSS-TB8Shrouded Header (SMT)2,00010.25 x 7.0Copper alloy, tin-platedPA, UL94V-0, natural
SM09B-SRSS-TB9Shrouded Header (SMT)2,00011.25 x 8.0Copper alloy, tin-platedPA, UL94V-0, natural
SM10B-SRSS-TB10Shrouded Header (SMT)2,00012.25 x 9.0Copper alloy, tin-platedPA, UL94V-0, natural
SM11B-SRSS-TB11Shrouded Header (SMT)2,00013.25 x 10.0Copper alloy, tin-platedPA, UL94V-0, natural
SM12B-SRSS-TB12Shrouded Header (SMT)2,00014.25 x 11.0Copper alloy, tin-platedPA, UL94V-0, natural
SM13B-SRSS-TB13Shrouded Header (SMT)2,00015.25 x 12.0Copper alloy, tin-platedPA, UL94V-0, natural
SM14B-SRSS-TB14Shrouded Header (SMT)1,50016.25 x 13.0Copper alloy, tin-platedPA, UL94V-0, natural

General Specifications

SpecificationValue
Current Rating0.7A DC
Voltage Rating50V DC
Temperature Range-25C to +85C
Contact ResistanceInitial: 20m max. / After environmental testing: 40m max.
Insulation Resistance100M min.
Withstanding Voltage500V AC/minute
Applicable WireConductor size: AWG #30, 7 strands, tin-coated annealed copper; Insulation O.D.: 0.54 to 0.58mm

1810251634_JST-03SR-3S_C268118.pdf
