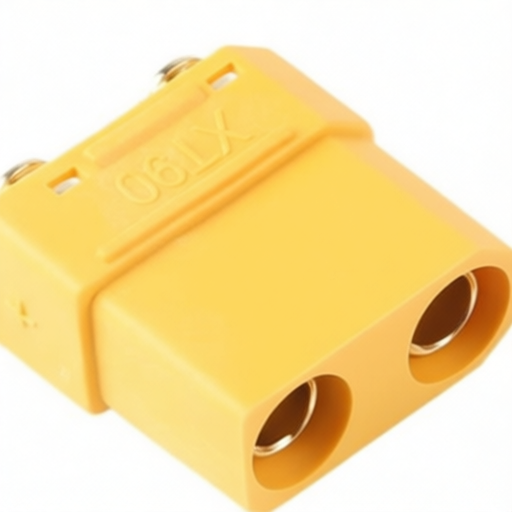

The Amass XT90PB30-F.G.* is a vertical plug-in type 2-pin connector designed to provide an integrated solution for PCB boards requiring vertical space. It offers options for gold plating and nickel plating, as well as wire-to-wire configurations. This connector is specifically designed for lithium battery applications.

Product Attributes

  • Brand: Amass
  • Origin: Changzhou Aimes Electronics Co., Ltd.
  • Plating Options: Gold Plating (G2: Thick Gold (Au)), Nickel Plating
  • Plastic Shell Material: PA66
  • Plastic Shell Color: Yellow (Y), Black (B)
  • Flame Retardant Grade: UL94-V0
  • Certifications: UL, CE, RoHS 2.0, Reach

Technical Specifications

Category Specification Details Test Method
Electrical Performance Withstand Voltage DC 500V UL1977
Rated Current 30A UL1977
Contact Resistance 0.40m GB/T5095.2
Insulation Resistance 2000M GB/T5095.2
Instantaneous Current (&A) 1min <80 at 60A -
Temperature Rise (30A, 4h) <60 UL1977
Creepage Distance 12.20mm GB/T2900.18
Mechanical Performance Insertion Force 3.5kg-6.5kg GB/T5095.8
Withdrawal Force 3.5kg-6.5kg GB/T5095.8
Mating Cycles 100 times GB/T5095.1
Protection Level IP40 GB/T4208 -
Environmental Performance Operating Temperature -20 to 120 GB/T 2423.3
Salt Spray 48h GB/T 2423.17
Model XT90PB30-F.G.* Solder Pin Height: 2.8mm -
Material (Metal Parts) H59-1 Plating: G2: Thick Gold (Au), 0.03m -
Current Carrying Recommendation (mm) 8# 60: 55A / 85: 60A -
Current Carrying Recommendation (mm) 10# 60: 50A / 85: 55A -
Current Carrying Recommendation (mm) 12# 60: 45A / 85: 50A -

Important Notes for Usage

  • Do not exceed the rated current and voltage during use.
  • Do not use the connector while applying external force.
  • Confirm the operating environment.
  • Handle with care.
  • Current and voltage overload can lead to malfunctions and accidents.
  • Do not plug or unplug the connector while it is live; always ensure power is off.
  • Do not apply power when the connector or wires are under stress. Excessive external force can cause damage and lead to malfunctions or accidents.
  • The connector is designed as a circuit connection component and should not be used as part of a structural object like an enclosure.
  • Do not use in environments with high temperature or humidity.
  • Using the connector outside of the specified environmental conditions may result in malfunction.
  • The connector is a precision component; handle with caution.
  • Exercise caution from the moment of unpacking. Even products packaged with carrier tape or tubes can experience terminal deformation, bending, or detachment if subjected to strong impacts.
