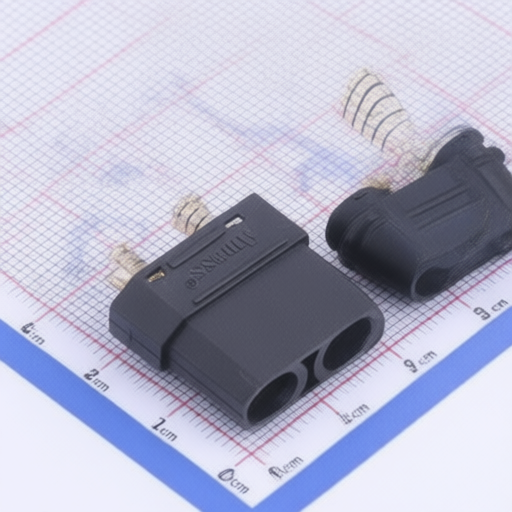

The Amass XT90H-F.G.* is a classic, solder-injection molded 2-pin connector designed as a standard for 40A power lithium battery applications. It offers a choice between gold-plated and nickel-plated finishes, with options for wire-to-board design and anti-spark features. This connector is recommended for use with lithium batteries.

Product Attributes

  • Brand: Amass
  • Model: XT90H-F.G.*
  • Type: Classic welding injection molded 2-pin connector
  • Plating Options: Gold-plated (G), Nickel-plated
  • Design Options: Wire-to-board
  • Features: Anti-spark design
  • Application Modules: Lithium battery
  • Plastic Shell Material: PA6
  • Plastic Shell Color Options: Yellow (Y), Black (B)
  • Flame Retardant Rating: UL94-V0
  • Certifications: UL, CE, RoHS 2.0
  • Optional Features: Rear cover, Snap-fit buckle, Waterproof, Anti-spark

Technical Specifications

Category Specification Details
Electrical Performance Withstand Voltage DC 500V (UL1977)
Rated Current 30A (UL1977)
Contact Resistance 0.40m (GB/T5095.2)
Insulation Resistance 2000M (GB/T5095.2)
Instantaneous Current 60A (12# wire) for 1 min, <80
Temperature Rise <60 at 30A (12# wire) for 4h (UL1977)
Creepage Distance 1.20mm (GB/T2900.18)
Mechanical Performance Insertion Force 3.5kg-6.5kg (GB/T5095.8)
Extraction Force 3.5kg-6.5kg (GB/T5095.8)
Mating Cycles 100 times (GB/T5095.1)
Protection Class IP40 (GB/T4208)
Environmental Performance Operating Temperature -20 to 120 (GB/T 2423.3)
Salt Spray 48h (GB/T 2423.17)
Wiring Recommendation (AWG) Temperature Rise 60 8#: 55A, 10#: 50A, 12#: 45A
Wiring Recommendation (AWG) Temperature Rise 85 8#: 60A, 10#: 55A, 12#: 50A
Material - Metal Parts Specification H59-1
Plating - Metal Parts Plating Thickness 0.03m (Gold)
