Horizontal PCB Connector Changzhou Amass Elec XT90PW-F30 G Y Featuring Anti Spark Waterproof Options
Horizontal PCB Connector Changzhou Amass Elec XT90PW-F30 G Y Featuring Anti Spark Waterproof Options
Specifications
Output :
-
Input :
-
Belt length :
-
Size :
-
Interface :
-
specifications :
7.4mm
RatedVoltage :
DC 500V
Type1 :
-
Power :
-
MaximumCurrent :
-
contact resistance :
0.4mΩ
InsulationMaterial :
PA
RatedCurrent :
30A
RecommendedWireGauge :
8/10/12AWG
FlameRetardantGrade :
-
Colour :
黄色
NumberOfUSBHoles :
-
InterfaceType :
-
MetalMaterial :
镀金
Description :
Banana and Tip Connector Adapters RoHS
Mfr. Part # :
XT90PW-F30.G.Y
Model Number :
XT90PW-F30.G.Y
Description

Product Overview

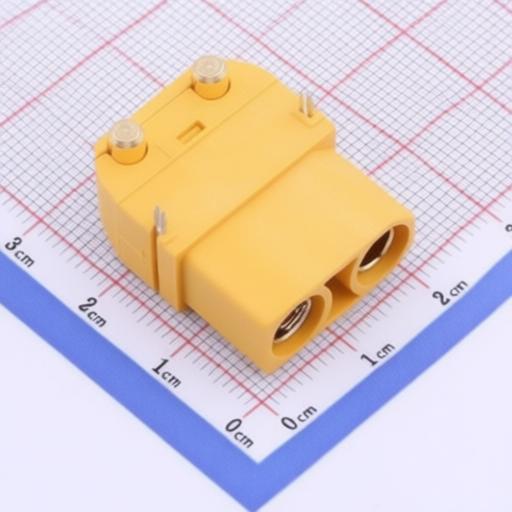

The Amass XT90PW30-F.G.* is a horizontal PCB mountable 2-pin connector designed to provide an integrated solution for PCBs with limited horizontal space. It offers options for gold plating and nickel plating, as well as a wire-to-wire design. This connector is suitable for applications involving lithium batteries.

Product Attributes

  • Brand: Amass
  • Certifications: UL, RoHS 2.0, Reach
  • Optional Features: Rear Cover, Clip, Waterproof, Anti-spark

Technical Specifications

Category Specification Details
Model & Dimensions Product Model XT90PW30-F.G.*
Solder Pin Height 3.0mm
Materials Metal Part Material H59-1
Plating Options G: Thick Gold (Au) / Nickel Plating
Plating Thickness 0.03m
Plastic Housing Material PA66
Flame Retardant Rating UL94-V0
Electrical Performance Test Method UL1977, GB/T5095.2
Withstand Voltage DC 500V
Rated Current 30A
Contact Resistance 0.40m
Insulation Resistance 2000M
Instantaneous Current (1 min) 60A (Temperature rise < 80)
Temperature Rise (30A, 4h) < 60
Creepage Distance GB/T2900.18 7.40mm
Mechanical Performance Insertion Force 3.5kg-6.5kg (GB/T5095.8)
Extraction Force 3.5kg-6.5kg (GB/T5095.8)
Durability 100 times (GB/T5095.1)
Ingress Protection IP40 (GB/T4208) -
Environmental Performance Operating Temperature -20 to 120 (GB/T 2423.3)
Salt Spray Test 48h (GB/T 2423.17)
Recommended Current Carrying Capacity (Ambient Temp. < 60) Wire Gauge Current
8# 55A
10# 50A
Recommended Current Carrying Capacity (Ambient Temp. < 85) Wire Gauge Current
8# 60A
10# 55A
Recommended Current Carrying Capacity (Continued) Wire Gauge Current
12# 45A (for < 60), 50A (for < 85)
