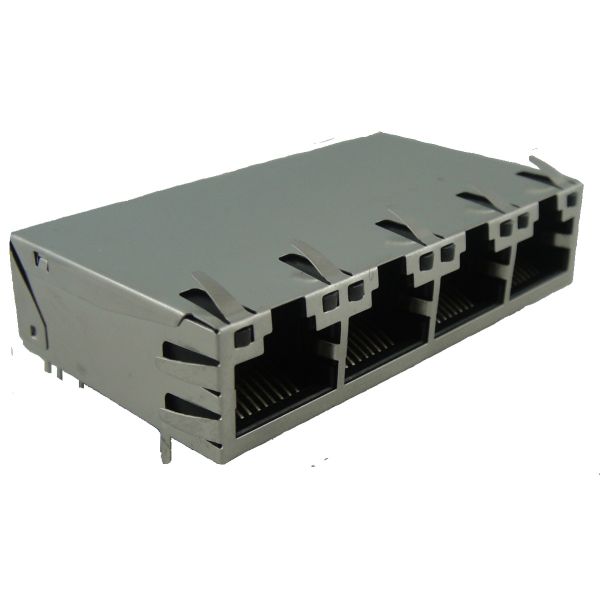

Shielded Modular Jack Amphenol RJMG2V1SLN12W5R Supporting 1x2 to 1x8 Port Configurations for Industrial
Shielded Modular Jack Amphenol RJMG2V1SLN12W5R Supporting 1x2 to 1x8 Port Configurations for Industrial
Specifications
Number of Ports :
1
Shielding :
有屏蔽
Mounting Type :
立贴
LED :
带LED
Description :
Jack Modular Connector Through Hole Shielded
Mfr. Part # :
RJMG2V1SLN12W5R
Package :
Through Hole
Model Number :
RJMG2V1SLN12W5R
Description

Product Overview

The Amphenol ICC RJMG series offers a comprehensive range of RoHS compliant Magnetic Modular Jacks for RJ45, designed to support 100BASE-T, 1G, 2.5G, 5G, and 10G Ethernet PHY. These right-angle through-hole connectors are available in 1xN port configurations (1x2, 1x4 through 1x8) with tab-up and tab-down options. The series features LED options, Power over Ethernet (PoE) compatibility, and shielded and EMI options for enhanced protection. Gold plating is available for the contact area, providing price and performance flexibility. Applications span Communications, Consumer, Data, Industrial & Instrumentation, and Medical markets.

Product Attributes

  • Brand: Amphenol ICC
  • RoHS Compliant: Yes
  • Certifications: Designed to meet IEEE802.3ab standard
  • Material - Housing: High Temperature Thermoplastic, UL 94V-0, Black
  • Material - Contacts: Phosphor Bronze, Plated with 1.27um (50u) min Gold over 1.27um (50u) min Nickel on the Mating Area and 2.54um (100u) min Matte Tin over Nickel on the Contact Tails
  • Material - Shell: Copper Alloy or Stainless Steel
  • Material - LEDs: Epoxy Lens, Tin Plated Steel Tails
  • Material - PCB: FR4 Fibreglass, Lead-Free
  • Color: Black (Housing)

Technical Specifications

Specification Details
Ethernet Standards Supported 100BASE-T, 1G, 2.5G, 5G, and 10G Ethernet PHY
Port Configurations 1xN (1x2, 1x4 through 1x8)
Mounting Type Right Angle, Through-Hole, DIP type
Tab Options Tab-up, Tab-down
LED Options Available (customer can opt for LED color of choice)
PoE Compatibility Yes (Power over Ethernet, PoE function/PoE function plus)
Shielding Shielded and EMI options available
Contact Plating Gold plating option available
Standard Operating Temperature 0C to 75C
Extended Operating Temperature -40C to +85C and -40C to +105C
Durability 750 Mating Cycles (Per EIA 364-09)
Vibration Resistance Per EIA 364-28 Random Condition II (10g, 10-500Hz, 6 Hours), No Discontinuity > 1us
Shock Resistance Per EIA 364-27 Test Condition A (11 ms, 50g, 1/2 Sine), No Discontinuity > 1us
Insertion & Withdrawal Force 20N (4.5lbf) max. (Latch Disengaged) (Per EIA-364-13)
Temperature Life With Load 1.5A, 70C, 500 Hours (Per EIA-364-17)
Temperature Life Without Load 105C, 1000 Hours (Per EIA-364-17)
Thermal Shock -55C to +105C, 25 Cycles (Per EIA-364-32)
Humidity (21 Cycles) 504 Hrs, 25C to 65C, 90-95% RH, with -10C Cold Shock (Per EIA 364-31)
Humidity (Steady State) 21 Days, 50C, 90-95% RH (Per EIA 364-31)
Mixed Flowing Gas Class IIA (Cl2, NO2, H2S and SO2), 14 Day Exposure (Per EIA 364-65)
Salt Spray 250 Hours, 5% Salt, 35C (Per EIA 364-26)
Solvent Resistance Isopropyl Alcohol and 5% Sodium Hydroxide Solution, 24 Hrs Each
LED Luminous Intensity 0.5mCd min at 2mA Forward Current
Solderability 95% Coverage after Category 2 Steam Aging (Per EIA-364-52)
Packaging Tray/Tube/Tape and Reel available upon request
Target Markets/Applications Communications, Consumer, Data, Industrial & Instrumentation, Medical
Part Number Examples RJMG212 series, RJMG212S series, RJMG2128 series, RJMG212TM series, RJMG221P series, RJMG3128 series, RJMG214 series, RJMG214K series, RJMG414 series, RJMG514 series, RJMG4128 series, RJMG2V1SLN12W5R

2411201527_Amphenol-RJMG2V1SLN12W5R_C6647577.pdf
