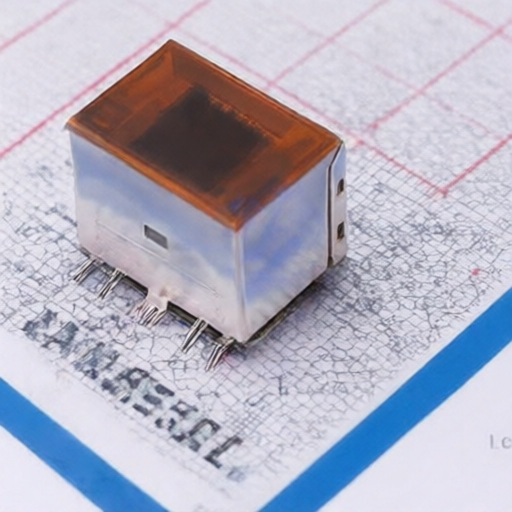

Integrated magnetics and LED equipped vertical 1x1 network socket HCTL HC-RJ45-511Q-1-2 for 1000BASE Ethernet
Integrated magnetics and LED equipped vertical 1x1 network socket HCTL HC-RJ45-511Q-1-2 for 1000BASE Ethernet
Specifications
PoE :
不带PoE
Shielding :
有屏蔽
Number of Ports :
1
Mounting Type :
立贴
LED :
带LED
Description :
Shielded 1 Surface Mount,Vertical With LED SMD Modular/Ethernet Connector Jacks With Magnetics RoHS
Mfr. Part # :
HC-RJ45-511Q-1-2
Package :
SMD
Model Number :
HC-RJ45-511Q-1-2
Description

Product Overview

This is a vertical 1x1 HC-RJ45-511Q-1-2 network socket designed for 1000BASE applications. It features integrated magnetics and LEDs for enhanced connectivity and status indication.

Product Attributes

  • Brand: Shenzhenhuacantianlu ELECTRONICS CO.,LTD
  • Origin: Shenzhen
  • Material: Housing: LCP, UL94V-0, Black; Terminals: Phosphor Bronze C5191, T=0.35mm, 15u" Gold Plating on Contact Area, Nickel 50-80 Micro-inch; Bracket: LCP, UL94V-0, Black; Shield: C2680, T=0.20mm, Nickel Plating on All Area
  • Color: Black
  • Certifications: UL94V-0

Technical Specifications

SpecificationDetails
Operating Temperature-40C ~ +85C
Storage Temperature-40C ~ +85C
Mating Force23N MAX
Durability750 Cycles MIN
Electrical - Turn Ratio1~2:J1~J2=1CT:1CT(2%); 3~4:J3~J6=1CT:1CT(2%); 7~8:J4~J5=1CT:1CT(2%); 9~10:J7~J8=1CT:1CT(2%)
Electrical - OCL350uH Min. at 100KHz, 100mV, 8mA DC
Electrical - Insertion Loss-1.0 dB Max 1~100MHz
Electrical - Return Loss-18dB Min 1~30MHz; -12dB Min 60~80MHz; -10dB Min 80~100MHz
Electrical - Cross Talk-40dB Min 1~30MHz; -35dB Min 30~60MHz; -30dB Min 60~100MHz
Electrical - CMR-30dB Min 1~100MHz
Electrical - Hi-Pot2250V DC 6S 1mA PRI TO SEC
LED SpecificationsGreen: 568nm, 20mA, 1.85-2.45V; Orange: 585nm, 20mA, 1.7-2.2V
Soldering Profile - Wave SolderPreheating: 120C (60-120s); Soldering: 180C (60s); Gradual Cooling: 120s. Tip temperature: 2605C, Tip temperature time: 5Sec Max. Tip melting point of Sn96.5/Ag3/Cu0.5: 217C. Remarks: Plastic positioning columns may be slightly melted after wave soldering but will not affect function.
General ToleranceX.X 0.30; X.XX 0.20; X.XXX 0.10; Angle 3.0
