RJ45 Connector LINK-PP LPJG16314A4NL Designed to Meet IEEE8023 Specifications for LAN Switch and Hub
RJ45 Connector LINK-PP LPJG16314A4NL Designed to Meet IEEE8023 Specifications for LAN Switch and Hub
Specifications
PoE :
不带PoE
Shielding :
有屏蔽
Number of Ports :
1
Mounting Type :
弯插
Supplementary Features :
有弹片
LED :
带LED
Description :
Shielded 1 Right Angle With LED Through Hole Modular/Ethernet Connector Jacks With Magnetics RoHS
Mfr. Part # :
LPJG16314A4NL
Package :
Through Hole
Model Number :
LPJG16314A4NL
Description

Product Overview

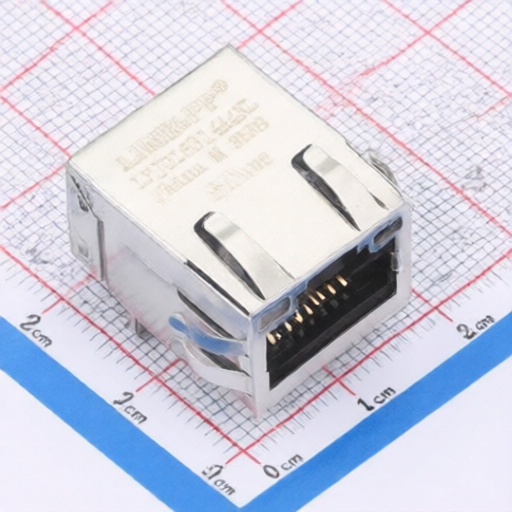

The LINK-PP LPJG16314A4NL is an RJ45 connector with integrated 1000 Base-T magnetics, designed to support applications such as SOHO (ADSL modems), LAN-on-Motherboard (LOM), hubs, and switches. It meets IEEE802.3 specifications and offers high performance with features like low insertion loss and excellent return loss.

Product Attributes

  • Brand: LINK-PP
  • Part Number: LPJG16314A4NL
  • Origin: China
  • Certifications: UL Certification: File Number E484635, RoHS 2011/65/EU
  • Connector Materials: Housing: Thermoplastic PBT+30%G.F UL94V-0, Contact: Phosphor Bronze C5210R-EH (0.35mm), Pins: Brass C2680R-H (0.35mm), Shield: SUS 304-1/2H (0.2mm)
  • Contact Plating: Gold 6 micro-inches min. in contact area
  • LED Colors: Yellow, Green

Technical Specifications

SpecificationValue
Impedance100 ohms
OCL (Open Circuit Inductance)350uH Min @100KHz, 0.1Vrms, 8mADC BIAS
Turns RatioPri:Sec = 1CT:1
Insertion Loss (0.5-100MHz)-1.1dB Max
Return Loss (dB Min)0.5-40MHz: -18; 40.1-100MHz: -12-20LOG(f/50)
Crosstalk (dB Min)0.5-40MHz: -35; 40.1-100MHz: -33-20LOG(f/50)
Common Mode Rejection Ratio (0.5-100MHz)-30dB Min
Isolation (PHY SIDE to Line SIDE)1500Vrms
Operating Temperature070
Capacitance1000pF/2KV
Wave Solder Tip Temperature250, 5 Sec
LED Emitting Color (Typical @IF=20mA)GREEN (p=565nm, VF=1.8~2.6V, IR=10A max), YELLOW (p=585nm, VF=1.8~2.6V, IR=10A max)

2507101715_LINK-PP-LPJG16314A4NL_C22456563.pdf
