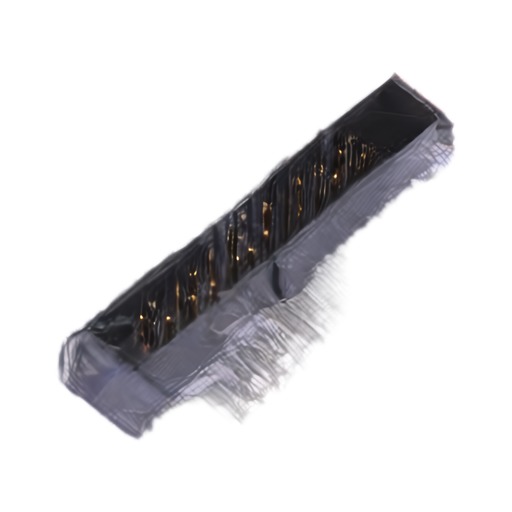

Samtec SHF-115-01-L-D-RA
Samtec SHF-115-01-L-D-RA
Samtec SHF-115-01-L-D-RA
Samtec SHF-115-01-L-D-RA
Specifications
Packaging Details :
Through Hole,Right Angle,P=1.27mm
Model Number :
SHF-115-01-L-D-RA
Delivery Time :
10-15工作日
Brand Name :
SHF-115-01-L-D-RA
Description :
Through Hole,Right Angle,P=1.27mm Free Hanging, Panel Mount RoHS
Stock :
22
MOQ :
4
Description

Product Overview

The SHF-1XX-01-X-D-XX-XX-XX series represents a .050 x .050 Shrouded Terminal Strip designed for various electronic applications. It offers multiple configurations for lead styles, plating options, and packaging, making it a versatile component for system integration.

Brand Samtec
Series SHF-1XX-01-X-D-XX-XX-XX
Terminal Type Shrouded Terminal Strip
Terminal Pitch 0.050" (1.27mm)
Insulator Material Sumika E6810LHF, UL 94 V0
Insulator Color Black
Terminal Material Phosphor Bronze
Certifications UL 94 V0
Series No. of Positions Row Specification Lead Style Plating Option Locking Clip Polyimide Film Packaging
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -TH (Through Hole) -L (10" Light Selective In Contact Area, Matte Tin On Tail) Yes (LC) No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -TH (Through Hole) -F (3" Flash Selective Gold In Contact Area, Matte Tin On Tail) Yes (LC) No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -TH (Through Hole) -S (30" Selective Gold In Contact Area, Matte Tin On Tail) Yes (LC) No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -TH (Through Hole) -L (10" Light Selective In Contact Area, Matte Tin On Tail) No No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -TH (Through Hole) -F (3" Flash Selective Gold In Contact Area, Matte Tin On Tail) No No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -TH (Through Hole) -S (30" Selective Gold In Contact Area, Matte Tin On Tail) No No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -RA (Right Angle) -L (10" Light Selective In Contact Area, Matte Tin On Tail) Yes (LC) No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -RA (Right Angle) -F (3" Flash Selective Gold In Contact Area, Matte Tin On Tail) Yes (LC) No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -RA (Right Angle) -S (30" Selective Gold In Contact Area, Matte Tin On Tail) Yes (LC) No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -RA (Right Angle) -L (10" Light Selective In Contact Area, Matte Tin On Tail) No No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -RA (Right Angle) -F (3" Flash Selective Gold In Contact Area, Matte Tin On Tail) No No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -RA (Right Angle) -S (30" Selective Gold In Contact Area, Matte Tin On Tail) No No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -SM (Surface Mount) -L (10" Light Selective In Contact Area, Matte Tin On Tail) Yes (LC) No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -SM (Surface Mount) -F (3" Flash Selective Gold In Contact Area, Matte Tin On Tail) Yes (LC) No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -SM (Surface Mount) -S (30" Selective Gold In Contact Area, Matte Tin On Tail) Yes (LC) No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -SM (Surface Mount) -L (10" Light Selective In Contact Area, Matte Tin On Tail) No No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -SM (Surface Mount) -F (3" Flash Selective Gold In Contact Area, Matte Tin On Tail) No No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -SM (Surface Mount) -S (30" Selective Gold In Contact Area, Matte Tin On Tail) No No Tubes (Standard)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -SM (Surface Mount) -K (Polyimide Film) No Yes (-SM Only) Tape & Reel
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -TH (Through Hole) -L (10" Light Selective In Contact Area, Matte Tin On Tail) Yes (LC) No Tape & Reel (-TR / -FR)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -RA (Right Angle) -L (10" Light Selective In Contact Area, Matte Tin On Tail) Yes (LC) No Tape & Reel (-TR / -FR)
SHF-1XX-01-X-D-XX-XX-XX -02 thru -25 -D (Double) -SM (Surface Mount) -L (10" Light Selective In Contact Area, Matte Tin On Tail) Yes (LC) No Tape & Reel (-TR / -FR)
Series Packaging Option Notes
SHF-1XX-01-X-D-XX-XX-XX Tubes Standard Packaging (See Note 11)
SHF-1XX-01-X-D-XX-XX-XX Tape & Reel (-TR) See Notes 9 & 10
SHF-1XX-01-X-D-XX-XX-XX Full Reel Qty Tape & Reel (-FR) See Notes 9 & 10
Specification Value (Imperial) Value (Metric)
Pitch .050" 1.27mm
Minimum Pushout Force 1 lb 4.45N
Maximum Allowable Bow .002" per inch 0.05mm per inch
Post Height Variation (Between Pins) .005" 0.13mm
Minimum Retention for Locking Clips .75 lb 3.336N
Maximum Pin Rotation in Body 2 2
