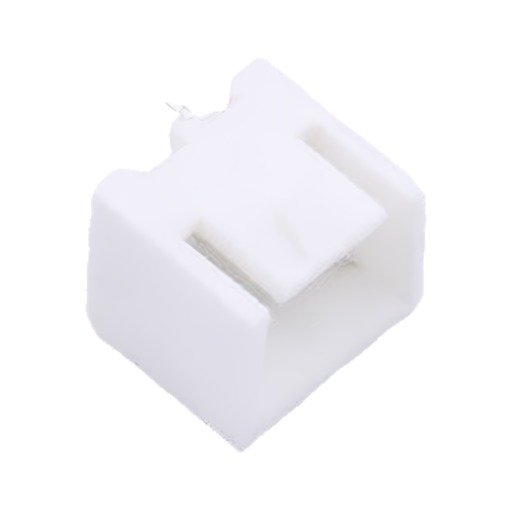

SAMZO 5MLAA020
SAMZO 5MLAA020
SAMZO 5MLAA020
SAMZO 5MLAA020
Specifications
Number of PINs :
2P
Brand Name :
5MLAA020
Number of PINs Per Row :
2
Description :
Connector Header 2 position 2.5mm Pitch 3A Through Hole -25℃~+85℃
Current Rating :
3A
Number of Rows :
1
Mounting Type :
Through Hole
Color :
White
Packaging Details :
Through Hole,P=2.5mm
Pins Structure :
1x2P
Contact Material :
Brass;-
Model Number :
5MLAA020
Reference Series :
XHB
MOQ :
1000
Delivery Time :
7-14工作日
Operating Temperature :
-25℃~+85℃
Stock :
10000
Pitch :
2.5mm
Contact Plating :
Tin
Description

Product Overview

This product is a wafer connector designed for electronic applications. It features a 180 wire-to-board connection with a 2.50mm pitch. The connector is rated for 3A AC/DC current and 250V AC/DC voltage, operating within a temperature range of -25C to +85C. It offers low contact resistance (20m Max) and high insulation resistance (1000M Min), with a withstanding voltage of 1000V AC/minute. Available in various pin counts and sizes, it is suitable for general tolerance applications.

Brand SAM[Z(O)
Series XHB-LOCK
Spacing L-2.50mm
Mounting Type A-WAFER
Connector Type WAFER CONNECTOR
Angle 180
Material N/A (General)
Color N/A (General)
Certifications ROHS
Revision E
ECN NO SAM[Z(O) REAC/ROHS At NEW
Model Number SMLAA-**-0
Drawing Number SML-P2504
Part Number SML250411
PART NO A (mm) B (mm) Current Rating Voltage Rating Temperature Range Contact Resistance Insulation Resistance Withstanding Voltage
02-2P 2.50 7.50 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
03-2P 5.00 10.00 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
04-2P 7.50 12.50 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
05-2P 10.00 15.00 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
06-2P 12.50 17.50 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
07-2P 15.00 20.00 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
08-2P 17.50 22.50 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
09-2P 20.00 25.00 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
10-2P 22.50 27.50 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
11-2P 25.00 30.00 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
12-2P 27.50 32.50 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
20-2P 27.50 59.50 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
