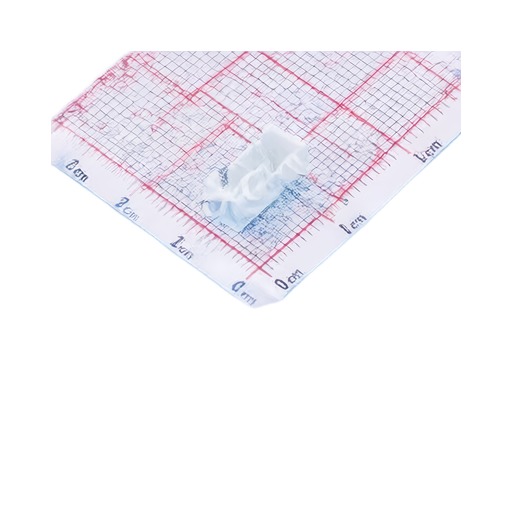

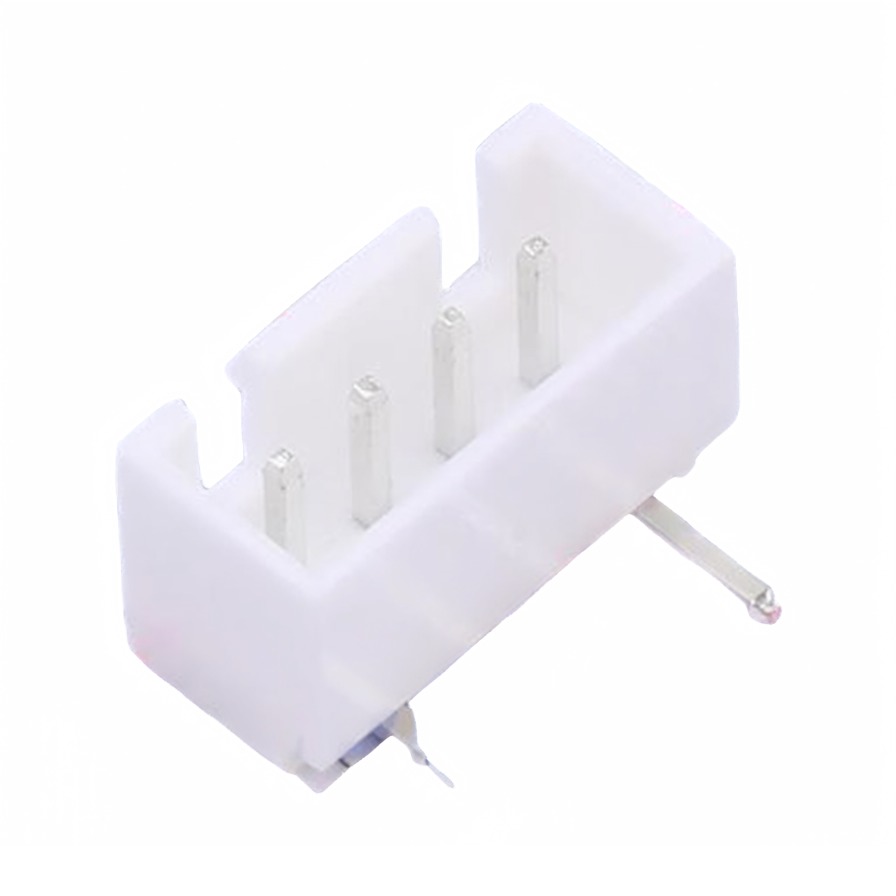

SAMZO 5MLBA040
SAMZO 5MLBA040
SAMZO 5MLBA040
SAMZO 5MLBA040
Specifications
Packaging Details :
Through Hole,Right Angle,P=2.5mm
Number of Rows :
1
Reference Series :
XHB
Pitch :
2.5mm
Operating Temperature :
-25℃~+85℃
Brand Name :
5MLBA040
Description :
Connector Header 4 position 2.5mm Pitch 3A Right Angle -25℃~+85℃
Pins Structure :
1x4P
MOQ :
1000
Number of PINs :
4P
Contact Plating :
Tin
Delivery Time :
7-14工作日
Contact Material :
Brass;-
Number of PINs Per Row :
4
Model Number :
5MLBA040
Current Rating :
3A
Stock :
10000
Mounting Type :
Right Angle
Color :
White
Description

Product Overview

The BM-XHB LOCK series connectors offer a reliable solution for various electronic applications. Designed with a 90 wafer configuration and a 2.50mm pitch, these connectors are suitable for PCB mounting. They feature a locking mechanism for secure connections and are available in a wide range of pin counts, from 2 to 50 positions.

Key Features:

  • Secure Locking Mechanism
  • 90 Wafer Orientation
  • 2.50mm Pitch
  • Wide range of pin counts (2P to 50P)
  • RoHS Compliant

Applications:

Ideal for use in consumer electronics, industrial equipment, and automotive applications where a secure and compact connection is required.

Brand

SAMZ (SAMZO)

Series

BM-XHB LOCK

Mounting Type

B (Wafer)

Standard

A (WAFER)

Pitch

L-2.50mm

Pin Configuration

02-2P (02-20P)

Code

0-REGULAR

Certifications

RoHS

PART NO DIMENSION A (mm) DIMENSION B (mm) Current Rating Voltage Rating Temperature Range Contact Resistance Insulation Resistance Withstanding Voltage
SMLBA-02-0 2.50 7.50 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
SMLBA-03-0 5.00 10.00 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
SMLBA-04-0 7.50 12.50 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
SMLBA-05-0 10.00 15.00 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
SMLBA-06-0 12.50 17.50 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
SMLBA-07-0 15.00 20.00 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
SMLBA-08-0 17.50 22.50 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
SMLBA-09-0 20.00 25.00 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
SMLBA-10-0 22.50 27.50 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
SMLBA-11-0 25.00 30.00 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
SMLBA-12-0 27.50 32.50 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
SMLBA-20-0 47.50 52.50 3A AC, DC 250V AC, DC -25C~+85C 20m Max 1000M Min 1000V AC/minute
