CNC Tech 3220-14-0300-00-TR
CNC Tech 3220-14-0300-00-TR
CNC Tech 3220-14-0300-00-TR
CNC Tech 3220-14-0300-00-TR
Specifications
MOQ :
700
Flame Retardant Rating :
UL94V-0
Operating Temperature :
-40℃~+105℃
Model Number :
3220-14-0300-00-TR
Description :
2x7P Gold 1.27mm 50V 7 2 1.27mm -40℃~+105℃ Surface Mount,Vertical SMD,P=1.27mm Headers, Male Pins RoHS
Pitch :
1.27mm
Contact Plating :
Gold
Mounting Type :
Surface Mount,Vertical
Pins Structure :
2x7P
Row Spacing :
1.27mm
Stock :
20034
Delivery Time :
10-15 working days
Contact Material :
PA9T;Brass
Number of Rows :
2
Packaging Details :
SMD,P=1.27mm
Voltage Rating (Max) :
50V
Number of PINs Per Row :
7
Brand Name :
3220-14-0300-00-TR
Description

Product Description

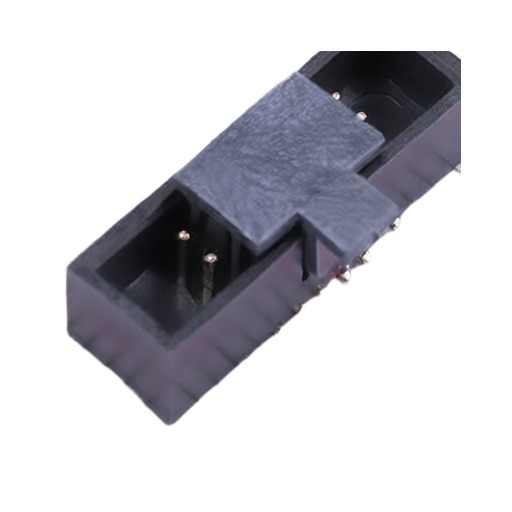

This product is a 1.27 Pitch Box Header SMT Type, designed for reliable electronic connections. It is RoHS compliant, indicating adherence to environmental standards.

Applications:

Suitable for various industrial applications requiring compact and robust surface-mount connectors.

Certifications

RoHS Compliant

Material and Finish

Insulator: High Temp. Plastic (Nylon 9T UL94V-0)
Insulator Color: Black
Terminal: Brass
Plating: Gold Plated Over Nickel

Packaging

Tape Packing
Pitch Current Rating Voltage Rating Contact Resistance (Max) Insulation Resistance (Min) Withstanding Voltage Operating Temperature Range Dimensions (L x W x H) P.C.B Layout
1.27 mm 1.0A AC/DC 50V AC/DC 20 m 1,000 M 500V AC -40C ~ +105C Refer to drawing Refer to drawing
Part Number Reel Width (mm) Pitch (mm) Pcs/Reel Pcs/CTN W (mm) F (mm)
3220-XX-0300-00-TR 24 (Single row hole) 11.2 700 6300
3220-XX-0300-00-TR 32 (Double rows hole) 14.2 700 14900
3220-XX-0300-00-TR 44 (Double rows hole) 20.2 700 3500
3220-XX-0300-00-TR 56 (Double rows hole) 26.2 700 2800
3220-XX-0300-00-TR 72 (Double rows hole) 54.2 500 1500
