SAMZO UKDBBTAAA
SAMZO UKDBBTAAA
SAMZO UKDBBTAAA
SAMZO UKDBBTAAA
Specifications
Description :

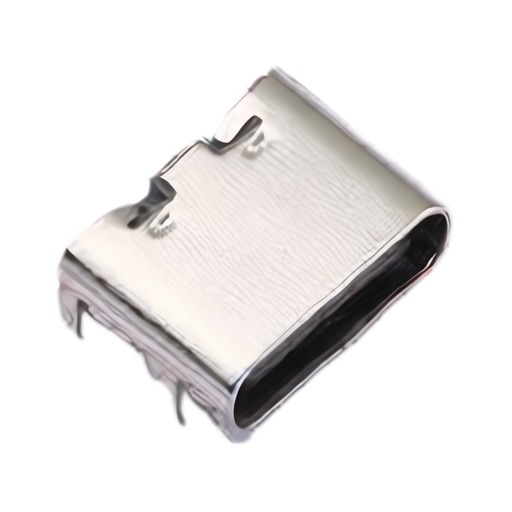

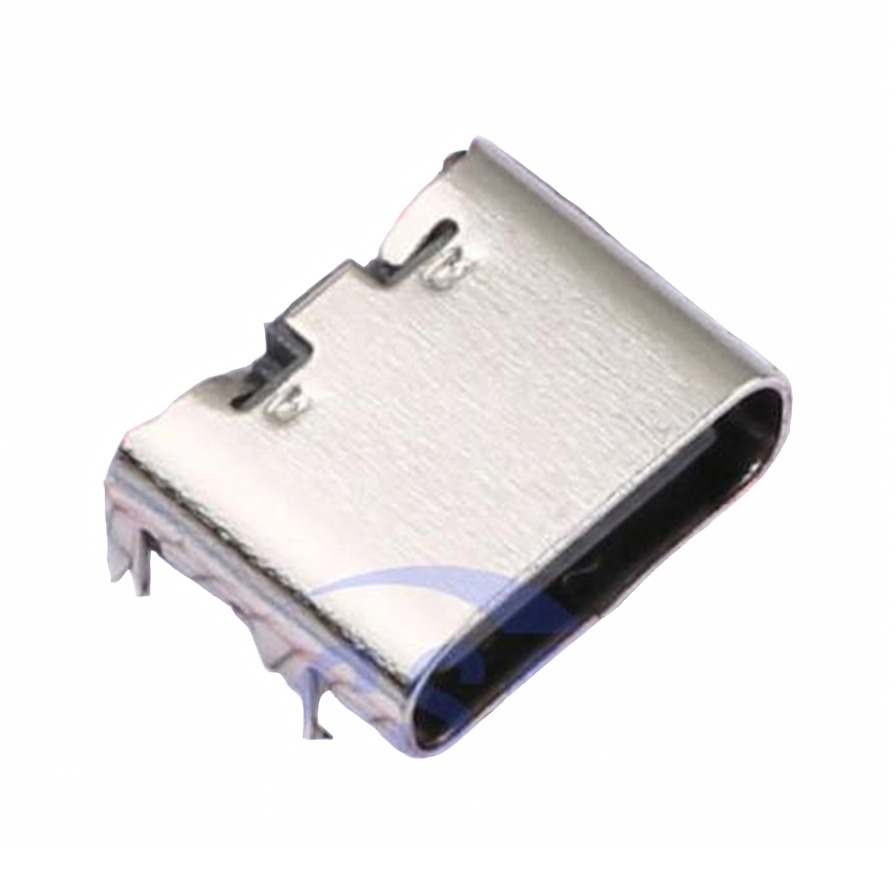

USB-C (USB TYPE-C) Receptacle Connector 6 Position Surface Mount, Right Angle
Current Rating :
3A
MOQ :
1500
Delivery Time :
7-14 working days
length :
6.8mm
Connector Type :
Type-C
Mounting Type :
Surface Mount, Right Angle
Gender :
Female
Brand Name :
UKDBBTAAA
Model Number :
UKDBBTAAA
Stock :
15000
Number of Ports :
1
Number of Contacts :
6P
Packaging Details :
SMD
Connect-Disconnect Life :
3,000 Cycles
Detection color :
Black
Operating Temperature :
-25℃~+85℃
Voltage Rating :
5V
Description

Product Overview

Product Name: TYPE-C CONN

Model No: UKDB-*-T-*-*-A

Part No: UKDB0610072

DWG No: UKDB06-P0001

Description: TYPE-C 6Pin 6.5/6.8MM Board Mount Connector. This connector is designed for electronic switch and connector applications.

Certifications: REAC/ROHS

Brand: SAMZO COMPONENTS

Origin: China

Series

UK-TYPE C

Size

D-6pin

Mounting

B-WD (pronr)

Look

A-L6.5 / B-L6.8mm

Style

T: GENERAL

Material (Shell)

A-SUS201 / B-SUS301 / C-SUS304

Lifetime

A-3000 / B:5000 / C:10000 CYCLES

Code

A-REGULAR

ItemDescriptionMaterialQtyFinish/ColorDesignCheckedApprovalDate
LCP1WANGGUIFAZHENGUILANLILIANJIANG2018.06.12
1 0.8-1.0UWANGGUIFAZHENGUILANLILIANJIANG2018.06.12
1 0.6-30UWANGGUIFAZHENGUILANLILIANJIANG2018.06.12
SUS201/301/3041 50-120UWANGGUIFAZHENGUILANLILIANJIANG2018.06.12
SUS201/301/3041 50-120UWANGGUIFAZHENGUILANLILIANJIANG2018.06.14
Specification CategoryDetails
Material SpecificationCONTACTS: COPPER ALLOY; MID PLATE: 201/301/304 STAINLESS STEEL; FRONT SHELL: 201/301/304 STAINLESS STEEL
Plating SpecificationCONTACTS: Ni 50-120u" MIN. UNDER PLATED OVER ALL. Au PLATED ON THE FUNCTIONAL AREA OF CONTACT (0.6-30u"). PLATING SPECIFICATIONS OF THE SOLDER AREA FOLLOW THE P/N; FRONT SHELL: SEE TABLE1; SHIELD PLATE & EMI PLATE: CLEAR ONLY
Mechanical PerformanceINSERTION FORCE: 0.5~2.0kgf; REMOVAL FORCE: 0.8kgf~2.0kgf; DURABILITY: 3000/5000/10000 CYCLES
Electrical PerformanceCURRENT RATING: 3.0A; VOLTAGE RATING: 5.0V; LLCR: VBUS & GND PINS AND OTHER PINS: 40m/PIN MAX. SHIELD: 50m/MAX. LLCR MAX. CHANGE OF ALL PINS: 10m; INSULATION RESISTANCE: 100M MIN; DIELECTRIC WITHSTAND VOLTAGE: AC 100V FOR 1 MINUTE
Environmental PerformanceOPERATING TEMPERATURE: -25C~+85C
IR ReflowTHE PEAK TEMPERATURE ON THE BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260C
General Tolerance0~2 0.15; 2~5 0.25; 5 0.35
