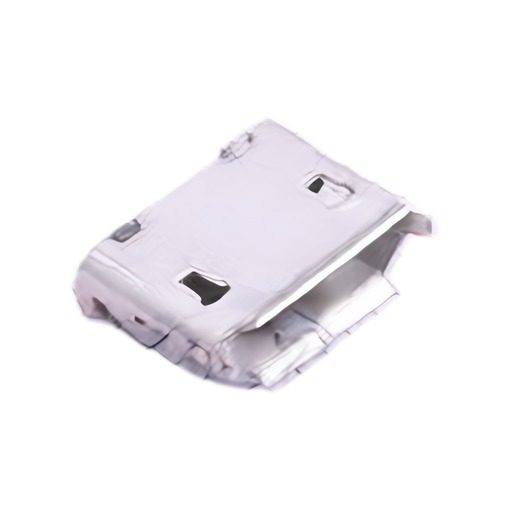

Yuandi MICRO-01-G1P2-A1T2
Yuandi MICRO-01-G1P2-A1T2
Yuandi MICRO-01-G1P2-A1T2
Yuandi MICRO-01-G1P2-A1T2
Specifications
Description :
USB-Micro B Receptacle Connector 5 Position Surface Mount, Right Angle
Current Rating :
1A
Model Number :
MICRO-01-G1P2-A1T2
Delivery Time :
8-12 working days
Number of Contacts :
5P
Connector Type :
Micro-B
Mounting Type :
Surface Mount, Right Angle
Number of Ports :
1
Voltage Rating :
30V
Brand Name :
MICRO-01-G1P2-A1T2
Stock :
1500
MOQ :
50
Detection color :
Black
Packaging Details :
SMD
length :
5.55mm
Gender :
Female
Description

Product Overview

This product is a USB connector, specifically a MICRO-01-GOPO-A1T2 model. It is designed for electrical applications with specified current and voltage ratings, contact resistance, and insulation resistance. The connector is built for mechanical durability with defined insertion and extraction forces, and terminal retention strength. It is manufactured by Yuandi Electronics Co., Ltd.

Brand

Yuandi Electronics Co.,Ltd

Model

MICRO-01-GOPO-A1T2

Material

Terminal: Brass Au Plating, Shell: Brass Tin Plating, Base: LCP Black

Color

Black

Certifications

Not specified

Package Type

Not specified

Technical Specifications

SpecificationValueUnitRemarks
Pin length8.00mm+0.2
Shell foot length2.15mm+0.1
P10.80mmc1
P21.00mmG2
P31.25mmG3
P41.65mmG4
Pin3.40mm
Sl2.55mm+0.1
HL1.8mm
U1.0A/contact terminalCurrent Rating
Lk30V DCVoltage Rating
JIRH50milliohmsMax (Contact Resistance)
Jif100V AC1/MINUTE (Dielectric Withstanding Voltage)
Fit100MEGA OhmsMin (Insulation Resistance)
Cnnector Mate and Unmate ForceInsertion force: 3.57 kgf (MAX), Extraction force: 1.02 kgf (Min) / 0.81~2.05 kgf (Min)kgf
Terminal Retenion0.5kgf(MIN)
PCB Layout No.0.65mm+0.05
