Specifications
Connect-Disconnect Life :
10,000 Cycles
length :
8.65mm
Number of Contacts :
24P
Packaging Details :
SMD
Stock :
8000
Number of Ports :
1
Delivery Time :
7-14工作日
Description :

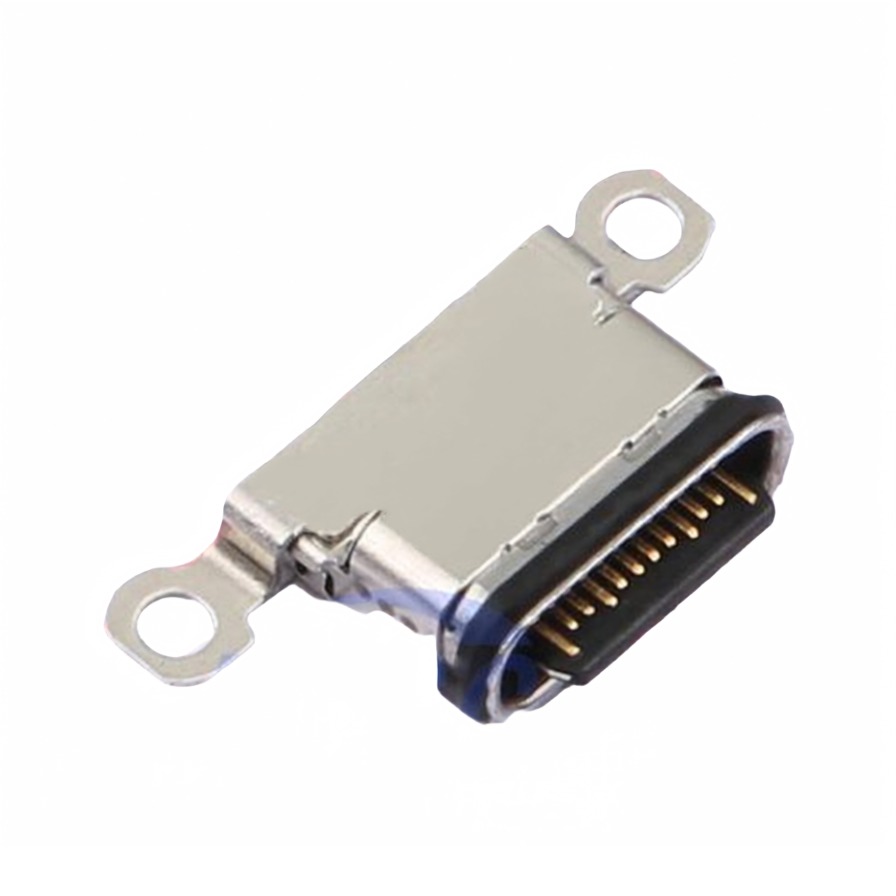

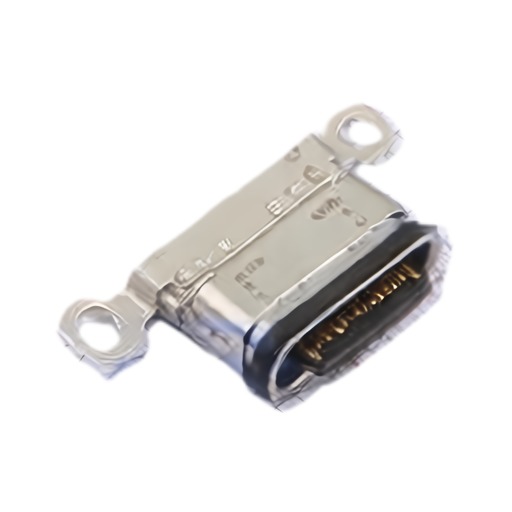

USB-C (USB TYPE-C) Receptacle Connector 24 Position Surface Mount, Right Angle
Current Rating :
5A
Gender :
Female
MOQ :
800
Model Number :
FKKDATCCA
Brand Name :
FKKDATCCA
Detection color :
Black
Operating Temperature :
-55℃~+85℃
Connector Type :
Type-C
Mounting Type :
Surface Mount, Right Angle
Description

Product Overview

Product Type: TYPE-C Connector

Model: FKKDATCCA

Part Number: FKK2409324

Description: TYPE-C 24Pin 8.65MM Board Mount SMT IPX8 Connector. Designed for high reliability and durability with 10000 cycles.

Key Features:

  • IPX8 Waterproof Rating
  • SMT Mounting
  • High Current Rating (5.0A for VBUS/GND)
  • ROHS Compliant and Halogen Free
  • Operating Temperature: -55 to +85

Application: Suitable for electronic devices requiring robust and waterproof USB Type-C connectivity.

Brand

SAMZO

Origin

China

Certifications

ROHS Compliant, Halogen Free

Material

SUS304 (for specific parts, e.g., laser weld)

Mounting Type

Horizontal Mounting / Board Mount SMT

Waterproof Rating

IPX8

Durability

10000 Cycles

Pin Count

24Pin

Height

8.65mm

SpecificationValueUnitNotes
Contact Current Rating (VBUS/GND)5.0AFor VBUS and its corresponding GND pin
Contact Resistance (VBUS/GND)30MilliohmsMax
Contact Resistance (Other Contacts)40MilliohmsMax
Dielectric Withstanding Voltage100VRMS ACMin
Insulation Resistance100MegohmsMin
Connector Insertion Force5 - 20NAt a maximum rate of 12.5mm/min
Connector Extraction Force (Initial)8 - 20NAt a maximum rate of 12.5mm/min
Connector Extraction Force (After Durability)6 - 20N
Durability10000Cycles
Operating Temperature-55 to +85
Salt Spray Test48Hours
Recommended Process Temperature260IR Reflow for 3-5 seconds
DimensionValueUnit
Overall Height8.65mm
Width14.50mm
Length17.00mm
PCB Thickness Tolerance0.15mm
SMT Tail Width0.75mm
SMT Tail Length1.75mm
SMT Tail Pitch0.50mm
Mounting Hole Diameter1.60mm
Contact Pitch0.25mm
