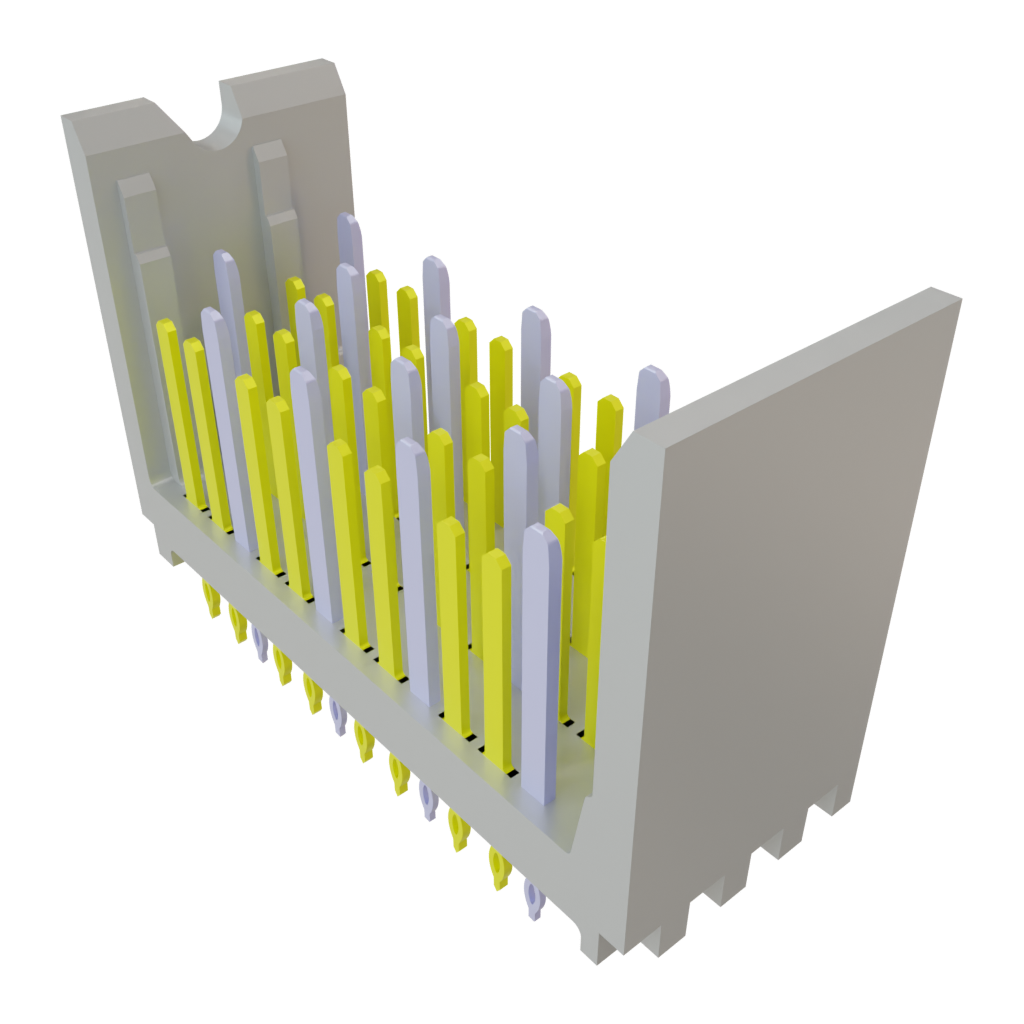

Samtec HDTM-4-04-1-S-VT-0-1
Samtec HDTM-4-04-1-S-VT-0-1
Samtec HDTM-4-04-1-S-VT-0-1
Samtec HDTM-4-04-1-S-VT-0-1
Specifications
Description :
Specialized Connectors RoHS
Stock :
53
Delivery Time :
7-14 working days
Brand Name :
HDTM-4-04-1-S-VT-0-1
Model Number :
HDTM-4-04-1-S-VT-0-1
MOQ :
2
Packaging Details :
-
Description

Product Overview

The HDTM Series is a high-density micro-pitch connector system designed for vertical backplane applications. It offers a robust solution with various configurations for signal and ground contacts, featuring compliant tail options for reliable PCB termination. The connector is engineered for demanding environments and provides excellent signal integrity.

Product Attributes

  • Brand: SAMTEC
  • Material: Insulator: LCP, Contact: CU ALLOY
  • Plating: 30" Selective Gold in Contact Area, Matte Tin on Tail
  • Origin: Designed and Dimensioned in Millimeters [Inches]
  • Certifications: Not specified in document

Technical Specifications

Part Number PrefixNo. of ColumnsPairs Per ColumnCompliant Tail SizeSide Wall OptionsStage CombinationsOrientation
HDTM-4-XX-X-X-VT-X-X04, 06, 0841: 0.0177" Drill
2: 0.0217" Drill		0: Open (No Walls)
1: Left Side Wall
2: Right Side Wall		1: 3mm Wipe Signal / 4mm Wipe Ground
2: 2mm Wipe Signal / 4mm Wipe Ground
3: 3mm Wipe Signal / 3mm Wipe Ground
4: 2mm Wipe Signal / 3mm Wipe Ground
5: 2mm Wipe Signal / 2mm Wipe Ground		VT: Vertical Orientation
