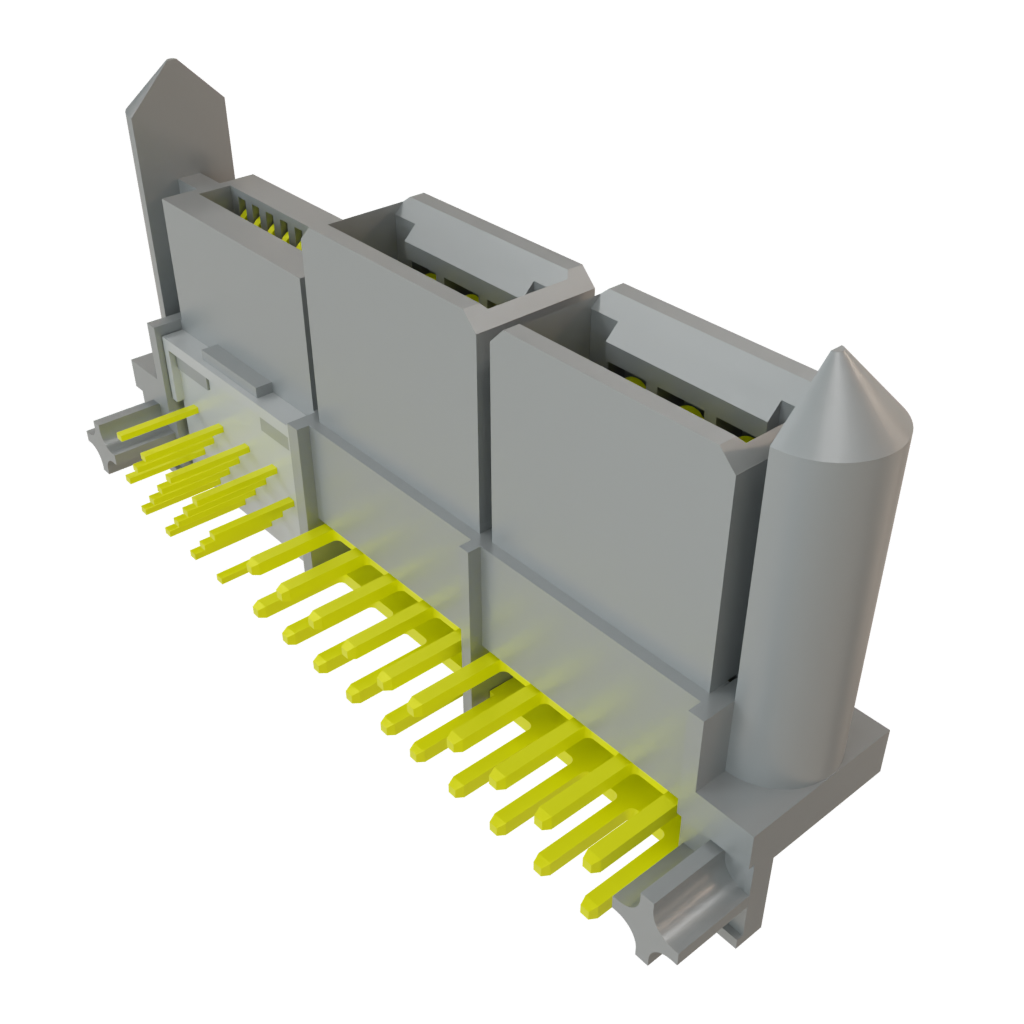

Samtec LPHS-04-16-S-RT2-GP
Samtec LPHS-04-16-S-RT2-GP
Samtec LPHS-04-16-S-RT2-GP
Samtec LPHS-04-16-S-RT2-GP
Specifications
MOQ :
1
Delivery Time :
7-14工作日
Packaging Details :
-
Model Number :
LPHS-04-16-S-RT2-GP
Description :
Specialized Connectors RoHS
Stock :
57
Brand Name :
LPHS-04-16-S-RT2-GP
Description

Product Overview

The LPHS-RA series socket assembly is designed for high-density signal and power applications. It features a robust LCP insulator in black and utilizes brass for signal contacts and copper alloy for power contacts. The product is designed for press-fit mounting onto PCBs, requiring specific fixtures for installation. It is supplied in trays.

Product Attributes

  • Brand: Samtec
  • Origin: USA (implied by address)
  • Insulator Material: LCP
  • Insulator Color: Black
  • Signal Contact Material: Brass
  • Power Contact Material: Copper Alloy

Technical Specifications

Part SeriesSignal PositionsPower PositionsPlating SpecificationTail OptionGuide Post OptionBoard Thickness
LPHS-XX-XX-X-RTX-XX-02, -04, -06, -08, -10, *-12, *-14-12, -16, -20, -24, -28, -32, *-36, *-40-L: 10 " SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-S: 30 " SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL (SEE NOTE 7)		-RT1: RA-TH, 1.58[.062] BOARD
-RT2: RA-TH, 2.36[.093] BOARD		-GP: GUIDE POSTS
-BLANK: NO -GP OPTION		1.58[.062] or 2.36[.093]
