Specifications
Description :
Specialized Connectors RoHS
Brand Name :
4P02-2A02-DA
Model Number :
4P02-2A02-DA
Packaging Details :
-
Stock :
1293
MOQ :
1280
Delivery Time :
10-15工作日
Description

Product Overview

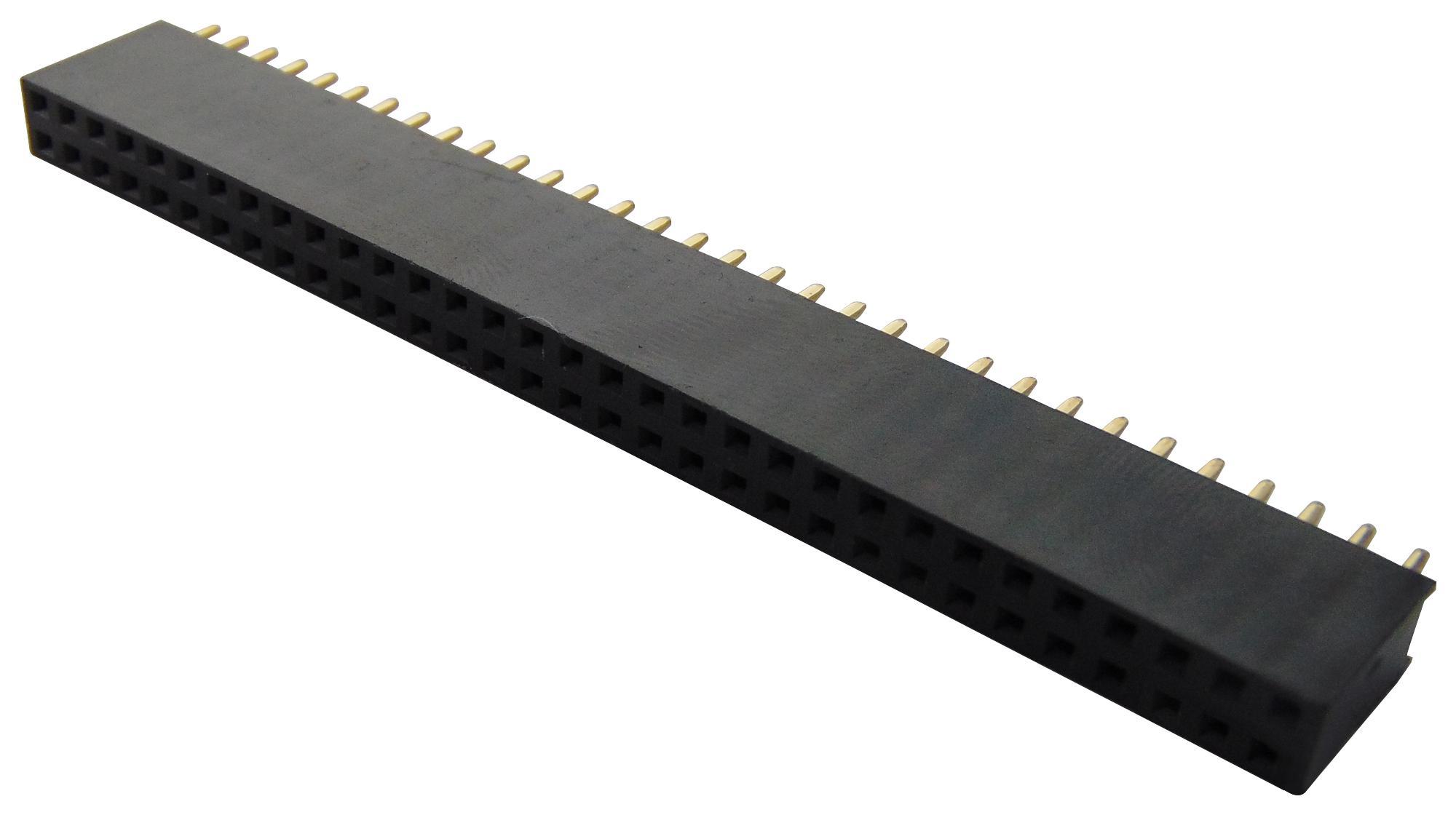

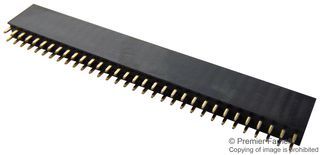

3M connectors designed for PC104 embedded system applications. These connectors are compliant and bus-compatible, engineered for reliability in demanding embedded environments.

Brand
3M
Contact Material
Phosphor Bronze
Insulator Material
Polyester Nylon-6T (UL 94V-0)
Current Rating
3 Amps
Insulator Resistance
5000 Mega Ohms Min
Contact Resistance
20 Milliohms Max
Dielectric Withstand
1000 VAC
Operating Temperature
-40C to +105C
TypePart No.Dim A (mm)Dim C (mm)Dim D (mm)Min Standoff (mm)Max Standoff (mm)
40-PIN Compliant Non-Stack-Thru4P01-2A02-xx3.2048.2651.5015.0-
40-PIN Bus Compatible Stack-Thru4P01-2B02-xx6.0048.2651.5011.313.0
40-PIN Compliant Stack-Thru4P01-2D02-xx12.0048.2651.5015.019.0
64-PIN Compliant Non-Stack-Thru4P02-2A02-xx3.2078.7481.8815.0-
64-PIN Bus Compatible Stack-Thru4P02-2B02-xx6.0078.7481.8811.313.0
64-PIN Compliant Stack-Thru4P02-2D02-xx12.0078.7481.8815.019.0
