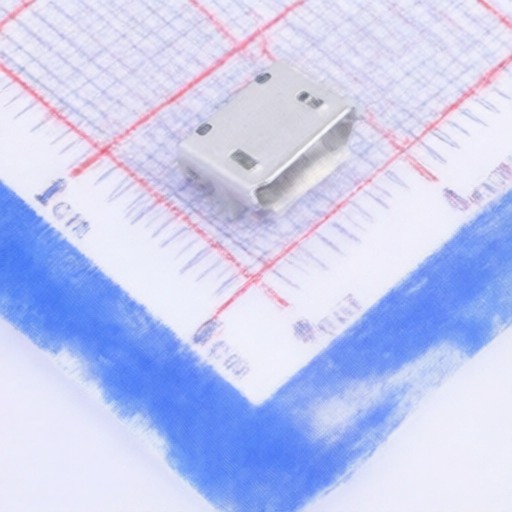

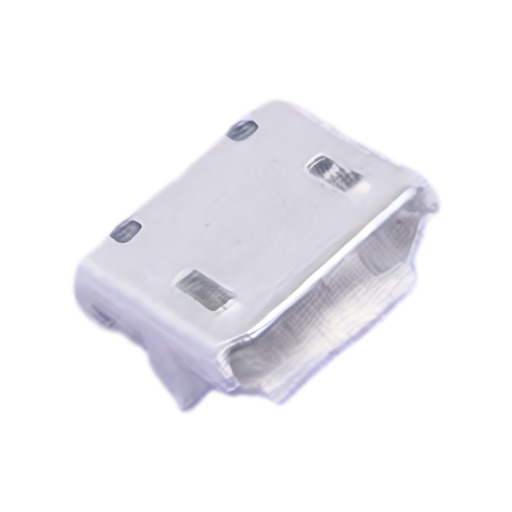

SHOU HAN MICRO 7.2JB
SHOU HAN MICRO 7.2JB
SHOU HAN MICRO 7.2JB
SHOU HAN MICRO 7.2JB
SHOU HAN MICRO 7.2JB
SHOU HAN MICRO 7.2JB
Specifications
Model Number :
MICRO 7.2JB
MOQ :
1
Mounting Type :
Surface Mount, Right Angle
Connector Type :
Micro-B
Number of Ports :
1
Brand Name :
MICRO 7.2JB
Stock :
1500
Current Rating :
1A
Connect-Disconnect Life :
3,000 Cycles
Operating Temperature :
-30℃~+80℃
Delivery Time :
1工作日
Description :
USB-Micro B Receptacle Connector 5 Position Surface Mount, Right Angle
Gender :
Female
Detection color :
Black
Number of Contacts :
5P
Packaging Details :
SMD
Description

Product Overview

The MICRO 7.2JB is a product from SHENZHEN SHOUHAN TECHNOLOGY CO.,LTD. This specification document outlines its material details, electrical, mechanical, and environmental performance standards.

Product Attributes

  • Brand: MICRO
  • Origin: Shenzhen, China
  • Company: SHENZHEN SHOUHAN TECHNOLOGY CO.,LTD
  • Contact: Tel: 0755-27597601, Fax: 0755-27597491

Technical Specifications

Part NoMaterial DetailsElectrical PerformanceMechanical PerformanceEnvironmental PerformanceWorking Conditions
MICRO 7.2JBPlastic: LCP UL94V-0
Contacts: C5191R-H, Nickel base, Gold plated contact area 1
Housing: C2680R-H, Nickel plated housing base 50, NI plated 80		Contact Resistance: 30m MAX
Insulation Resistance: 100M MIN @ 100V DC
Withstand Voltage: 250V AC for 1 minute, 0.5mA		Insertion Force: 3.57kgf
Withdrawal Force: 1.02kgf
Terminal Single PIN Retention Force: 0.5 kgf MIN
Durability: 3000 cycles (600 cycles/hour)		Tin Adhesion: 95% tin coverage
High Temperature Resistance: Observe after 96 hours at 85, then 3 hours at room temperature.
Low Temperature Resistance: Observe after 96 hours at -40, then 3 hours at room temperature.
Humidity Resistance: Observe after 120 hours at 402, 9095RH.
Corrosion Resistance: Observe after 12 hours continuous salt spray (5% salt water, 352), then 1 hour at room temperature.
Solderability: No obvious discoloration or blistering; smooth solder foot. Observe after immersion in 2355 tin bath for 50.5 seconds.		Working Current: 1.0 Ampere
Operating Temperature: -30+80

Approval Signatures: , ,
