Specifications
MOQ :
6
Model Number :
M22-6033042
Packaging Details :
-
Delivery Time :
7-13 working days
Brand Name :
M22-6033042
Description :
Arrays, Edge Type, Mezzanine (Board to Board) RoHS
Description

Product Overview

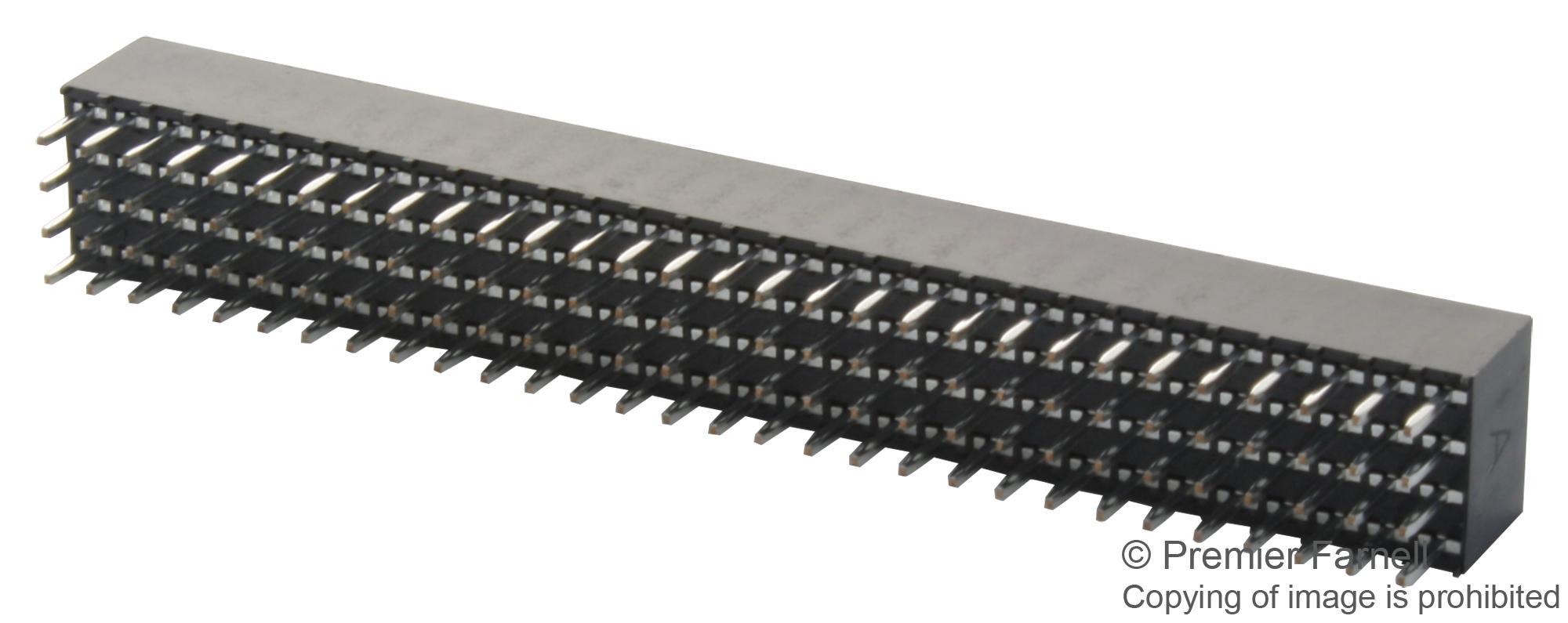

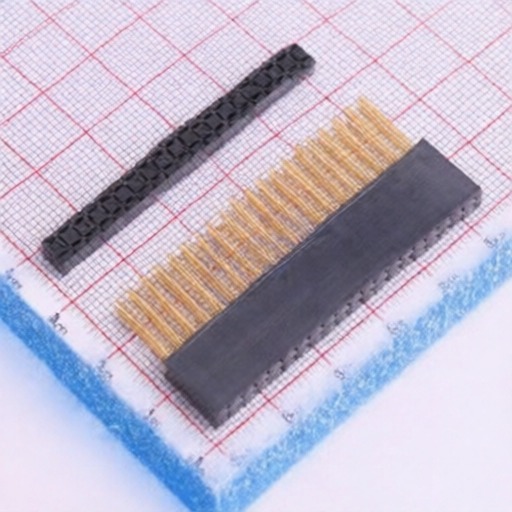

The PC/104 and PC/104 Plus connectors are an industry-standard connector system designed for PC/104 Embedded PC module stack applications. This system utilizes stackthrough connectors to interconnect PC boards within a stack, offering a space-saving and cost-effective solution compared to traditional backplane systems. The standard height between module boards is 0.6 (15.24mm). PC/104 connectors feature a 2.54mm pitch with 32+32 or 20+20 ways, while PC/104 Plus connectors offer a 2.00mm pitch with 4 x 30 (120) ways. Both series are available with solder or press-fit tail options and feature tuning-fork style contacts.

Product Attributes

  • Brand: HARWIN
  • Connector Type: PC/104 and PC/104 Plus
  • Contact Style: Tuning-fork
  • Tail Options: Solder, Press-fit
  • Housing Materials: Nylon 6T (UL94V-0, black), PPS (UL94V-0, black), PBT (UL94V-0, black)
  • Contact Materials: Phosphor Bronze (Female), Brass (Male)
  • Finish Options: 0.08m Gold over Nickel (Solder Tail), 0.25m Gold over Nickel (Press-fit Tail)

Technical Specifications

Specification PC/104 (M20) PC/104 Plus (M22) Notes
Pitch 2.54mm 2.00mm
Ways 32+32 or 20+20 4 x 30 (120)
Current Rating (max) 3A 1A Per contact, 20C ambient
Voltage Rating 12V DC
Dielectric Strength 1,000V AC for 1 minute 800V AC for 1 minute
Contact Resistance (Initial) 30m max
Contact Resistance (After Conditioning) 50m max
Insulation Resistance 5,000M min (1,000V AC for 1 minute)
Temperature Range -55C to +105C -55C to +105C (Solder Tail), -40C to +85C (Press-Fit)
Durability (Mating Contacts) 10 operations
Durability (Press-fit Section into PCB) 3 operations
Contact Retention in Housing 5N min
Insertion Force (Individual Contact Mating) 2.0N max 2.0N max (Solder Tail), 1.2N max (Press-Fit) 0.64mm square gauge (PC/104), 0.50mm square gauge (PC/104 Plus)
Withdrawal Force (Individual Contact Mating) 0.25N min 0.3N min (Solder Tail), 0.2N min (Press-Fit) 0.64mm square gauge (PC/104), 0.50mm square gauge (PC/104 Plus)
Press-fit Insertion Force (Individual Contact to PCB) 80N max 59N max
Press-fit Insertion Force (Connector to PCB) 3,000N max (40-way), 4,000N max (64-way) 7,840N max (120-way)
Press-fit Withdrawal Force (Individual Contact to PCB) 20N min 15N min
Press-fit Withdrawal Force (Connector to PCB) 800N min (40-way), 1,280N min (64-way) 1,764N min (120-way)
Press-fit Plated Through Hole Diameter (Drilled) 1.150.02mm 1.0000.025mm
Press-fit Plated Through Hole Diameter (Final) 1.09-1.00mm 0.94-0.85mm
