TNC Female RF Connector Suitable for RG316/U Cable Brass Construction
TNC Female RF Connector Suitable for RG316/U Cable Brass Construction
TNC Female RF Connector Suitable for RG316/U Cable Brass Construction
TNC Female RF Connector Suitable for RG316/U Cable Brass Construction
TNC Female RF Connector Suitable for RG316/U Cable Brass Construction
TNC Female RF Connector Suitable for RG316/U Cable Brass Construction
TNC Female RF Connector Suitable for RG316/U Cable Brass Construction
TNC Female RF Connector Suitable for RG316/U Cable Brass Construction
TNC Female RF Connector Suitable for RG316/U Cable Brass Construction
TNC Female RF Connector Suitable for RG316/U Cable Brass Construction
Specifications
Brand Name :
SIPU
Model Number :
TNC-KF3A
Certification :
ISO9001, RoHS, CE
Place of Origin :
CHINA
MOQ :
100
Price :
Discuss
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
120000pcs/year
Delivery Time :
6-8weeks
Packaging Details :
Carton
Product name :
TNC Female RF Coaxial Connector – Compatible with RG316/U Cable
Type :
Straight
Gender :
Female
Material :
Brass
Plating :
Nickle
Insulating medium :
PTFE
Durability :
500 times
Description

TNC Female RF Coaxial Connector – Compatible with RG316/U Cable

Product Overview

The TNC series is a threaded, medium-power RF coaxial connector designed for high-reliability performance in demanding environments. Built in accordance with GJB681A, MIL-C-39012, and IEC60169-17 standards, this connector is ideal for mobile communication equipment exposed to shock and vibration.

Product Features:

Threaded locking design ensures secure connections under dynamic conditions

Flange-mount with 4-hole symmetry simplifies panel installation and enhances mechanical stability

Mates with RG316/U cable – compact, flexible, and suited for tight space integration

High durability & electrical performance – consistent signal integrity in RF applications

Resistant to environmental stress – ideal for outdoor and mobile use

Application Areas:
Mobile & wireless communication systems
Antenna and signal transmission modules
Dynamic RF environments with vibration
Outdoor instrumentation and test setups
Small and medium power RF applications

Product Specifications

TNC Female RF Connector Suitable for RG316/U Cable Brass Construction

Important Technical Parameters

Electrical property

 Temperature range -55～+165℃

Characteristic impedance

 50Ω Frequency range DC-11GHz

Dielectric withstanding voltage

 1500V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB
Contact resistance Center conductor ≤2.0mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, nickel plating / /

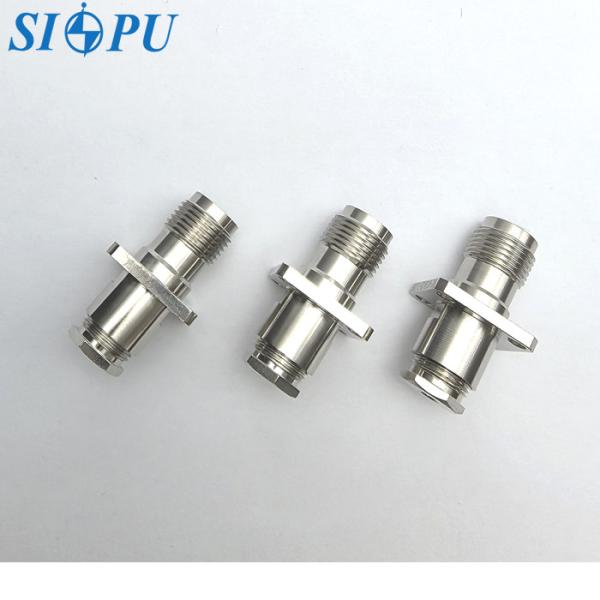

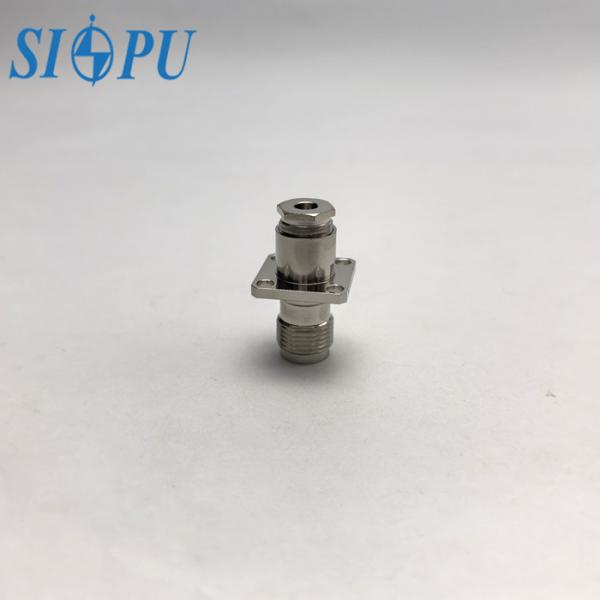

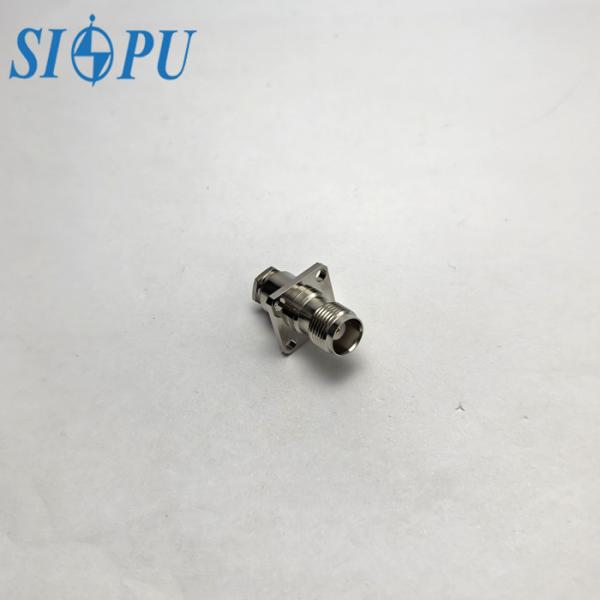

Product Image Gallery

TNC Female RF Connector Suitable for RG316/U Cable Brass ConstructionTNC Female RF Connector Suitable for RG316/U Cable Brass Construction
