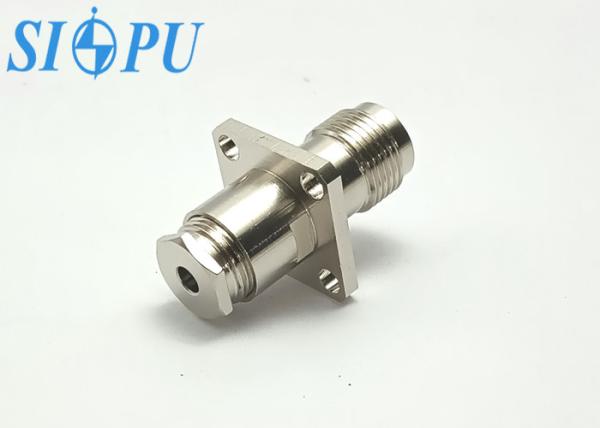

TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)
TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)
TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)
TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)
TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)
TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)
TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)
TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)
TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)
TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
TNC-KF4A-1
Certification :
ISO9001, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8weeks
Supply Ability :
120000pcs/year
Product name :
TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)
Gender :
Female
Type :
Straight
Material :
Brass
Plating :
Nickle
Insulating medium :
PTFE
Durability :
500 times
Description

TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)

Product Overview

The TNC series is a small to medium-power RF coaxial connector with a threaded coupling structure, developed in accordance with MIL-C-39012 and IEC 60169-17 standards. It features wide frequency bandwidth, excellent electrical performance, and high connection reliability. TNC connectors are fully interchangeable with similar international products.

Scope of Application

Communication systems

Radio equipment

Electronic instrumentation

Product Features

Four-hole flange mounting structure

Compatible with SFF-50-2-2 RF coaxial cable

Reliable threaded connection with strong vibration resistance

Wide operating bandwidth

Excellent and stable electrical performance

Product Specifications

TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)

Important Technical Parameters

Electrical property

 Temperature range -55～+165℃

Characteristic impedance

 50Ω Frequency range DC-11GHz

Dielectric withstanding voltage

 1500V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB
Contact resistance Center conductor ≤2.0mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, nickel plating / /

Product Image Gallery

TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)
TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)TNC Female RF Coaxial Connector – Flange Mount, Compatible with SFF-50-2-2 Cable (Model: TNC-KF4A-1)
