TNC Female to TNC Female RF Coaxial Adapter – Flange Mount Receptacle
TNC Female to TNC Female RF Coaxial Adapter – Flange Mount Receptacle
TNC Female to TNC Female RF Coaxial Adapter – Flange Mount Receptacle
TNC Female to TNC Female RF Coaxial Adapter – Flange Mount Receptacle
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
TNC-KKF-1
Certification :
ISO9001, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8weeks
Supply Ability :
120000pcs/year
Product name :
TNC Female to TNC Female RF Coaxial Adapter – Flange Mount Receptacle
Material :
Brass
Type :
Straight
Plating :
Nickel
Durability :
500 times
Insulating medium :
PTFE
Description

TNC Female to TNC Female RF Coaxial Adapter – Flange Mount Receptacle

Product Overview

RF coaxial adapters with various specifications ensure proper interconnection between different series or between connectors within the same series. These adapters typically serve as bridge components to maintain signal continuity and mechanical compatibility in RF systems.

Scope of Application
Used for system-level connection and conversion, commonly found in test cables, measurement setups, and RF instrumentation.

Product Features

Both ends interface with standard TNC male connectors

Flange mount receptacle design for secure installation

Strong environmental resistance and mechanical durability

High reliability and excellent electrical performance

Product Specifications

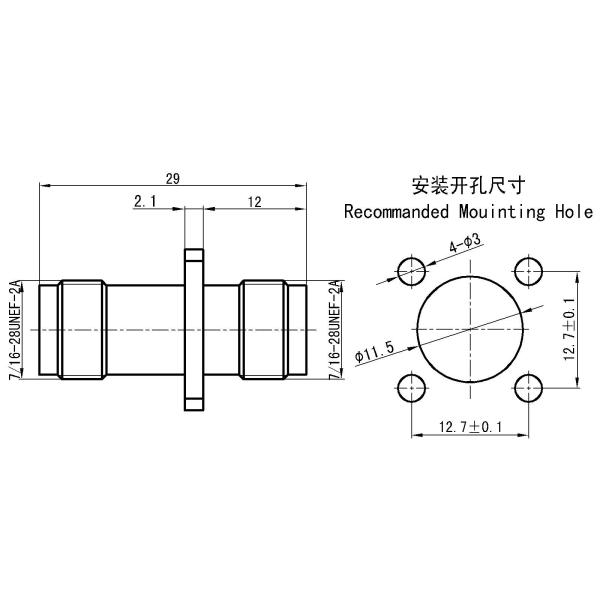

TNC Female to TNC Female RF Coaxial Adapter – Flange Mount Receptacle

Important Technical Parameters

Electrical property

 Temperature range -55～+165℃

Characteristic impedance

 50Ω Frequency range DC-11GHz

Dielectric withstanding voltage

 1500V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.06√F(GHz)dB
Contact resistance Center conductor ≤2.0mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, nickel plating / /

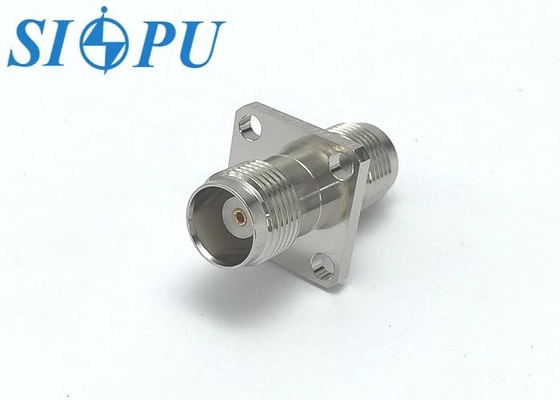

Product Image Gallery

TNC Female to TNC Female RF Coaxial Adapter – Flange Mount ReceptacleTNC Female to TNC Female RF Coaxial Adapter – Flange Mount Receptacle
